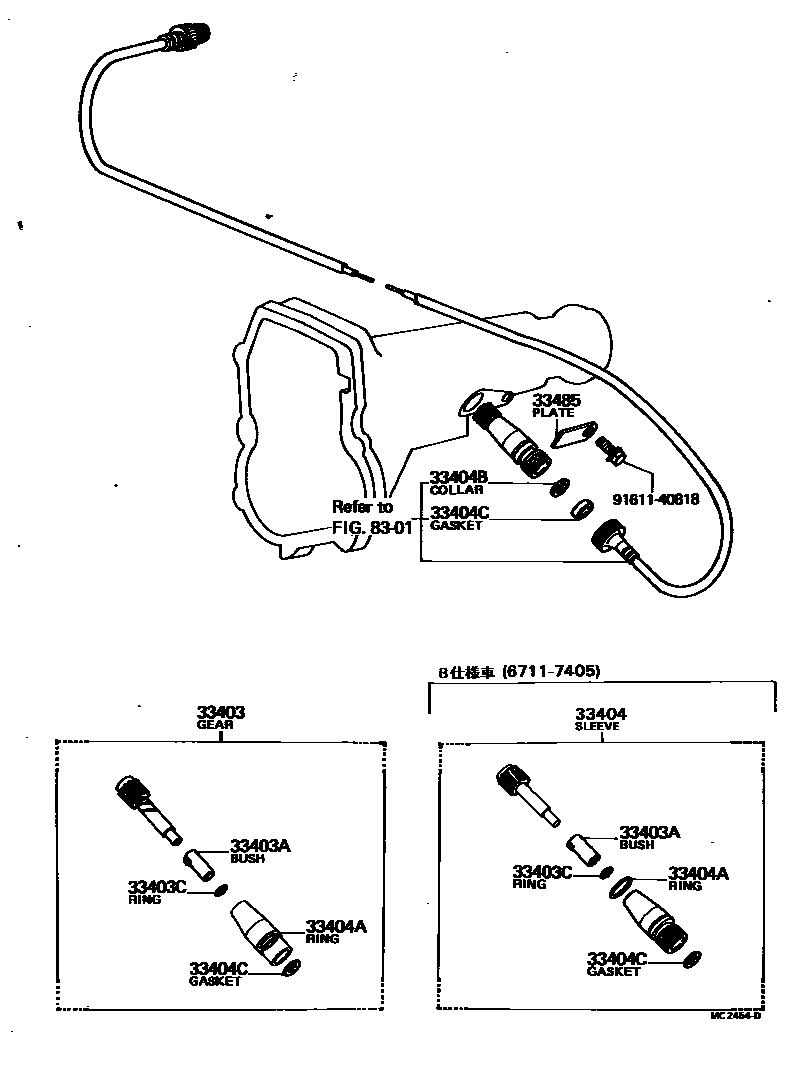

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-69016iVG20..MTM196711-196811

main33403-69045iVG20..A196711-196901

W/AUTO DRIVE

main33403-69046iVG20..A196901-197109

W/AUTO DRIVE

main33403-69065iVG2#..B196811-197405

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09008iVG20..B196711-196901

main90386-09078iVG20..A196711-196901

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iVG2#..MTM196711-197405

main90301-09017iVG20..A196711-197109

W/AUTO DRIVE

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-29016iVG21..B197303-197405

main33404-39016iVG20..MTM196711-197302

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iVG2#..MTM196711-197405

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iVG2#..MTM196711-197405

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iVG2#..MTM196711-197405

T=6.0

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iVG20..MTM196711-196912

main33485-40010iVG2#..MTM196912-197405

8301METER

→ Go to FIG 83-01

9161140818

main91611-40818

10 parts on this diagram · 1 diagram in section
