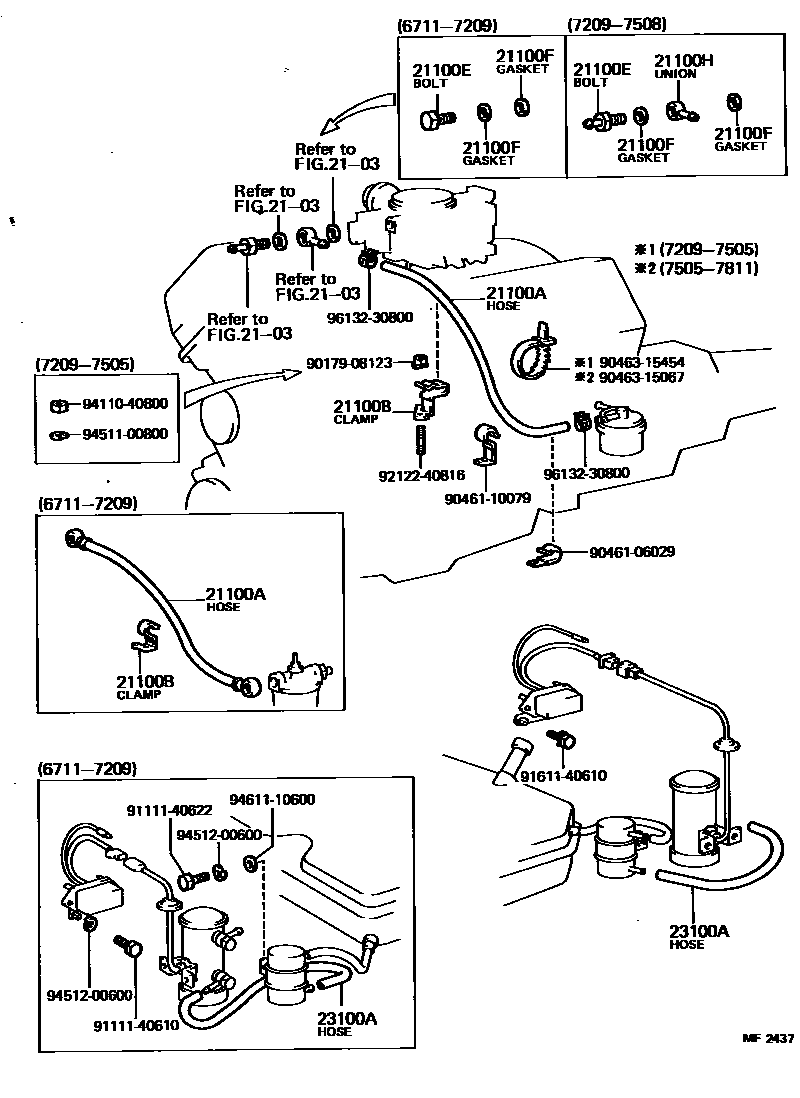

FUEL PIPE & CLAMP

2103CARBURETOR

→ Go to FIG 21-03

21100AHOSE(FOR CARBURETOR)

main90923-01080i3V..VG20196711-196805

main90923-01101i3V..VG20196805-197112

main95324-07048i3V..VG20197112-197209

main95331-08050i3V,4V..VG2#197209-197405

main95331-08100i4V#..VG21,30197405-197704

main95332-08100i4VU..VG30197704-197811

21100BCLIP(FOR CARBURETOR)

main90461-16285i3V..VG20196711-196907

main90461-16460i3V..VG20196907-197209

main90461-16886i3V..VG20197209-197302

main90461-16920i4V#..VG21,30197303-197811

21100EBOLT, CARBURETOR TO CARBURETOR HOSE UNION

main21811-30010i3V..VG20196805-197209

main21811-51010i3V,4V#..VG2#197209-197508

21100FGASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT

main21621-30010×2i3V,4V#..VG2#196711-197508

21100HUNION(FOR CARBURETOR)

main90405-08144i3V,4V#..VG2#197209-197508

23100AHOSE, FUEL

main90445-12214i3V..VG20196903-196906

main90445-12226i3V..VG20196711-196903

main90445-12627i3V..VG20196906-197112

main95311-07015i3V..VG20197112-197209

main95331-08015i3V..VG20197209-197302

main95331-08016i4V#..VG21,30197303-197811

9017908123

main90179-08123

9046106029

main90461-06029

9046110079

main90461-10079

9046315067

main90463-15067

9046315454

main90463-15454

9111140610

main91111-40610

9111140622

main91111-40622

9161140610

main91611-40610

9212240816

main92122-40816

9411040800

main94110-40800

9451100800

main94511-00800

9451200600

main94512-00600

9461110600

main94611-10600

9613230800

main96132-30800

21 parts on this diagram · 1 diagram in section
