STARTER

0001 1 0002 1 0003 1 0004 1

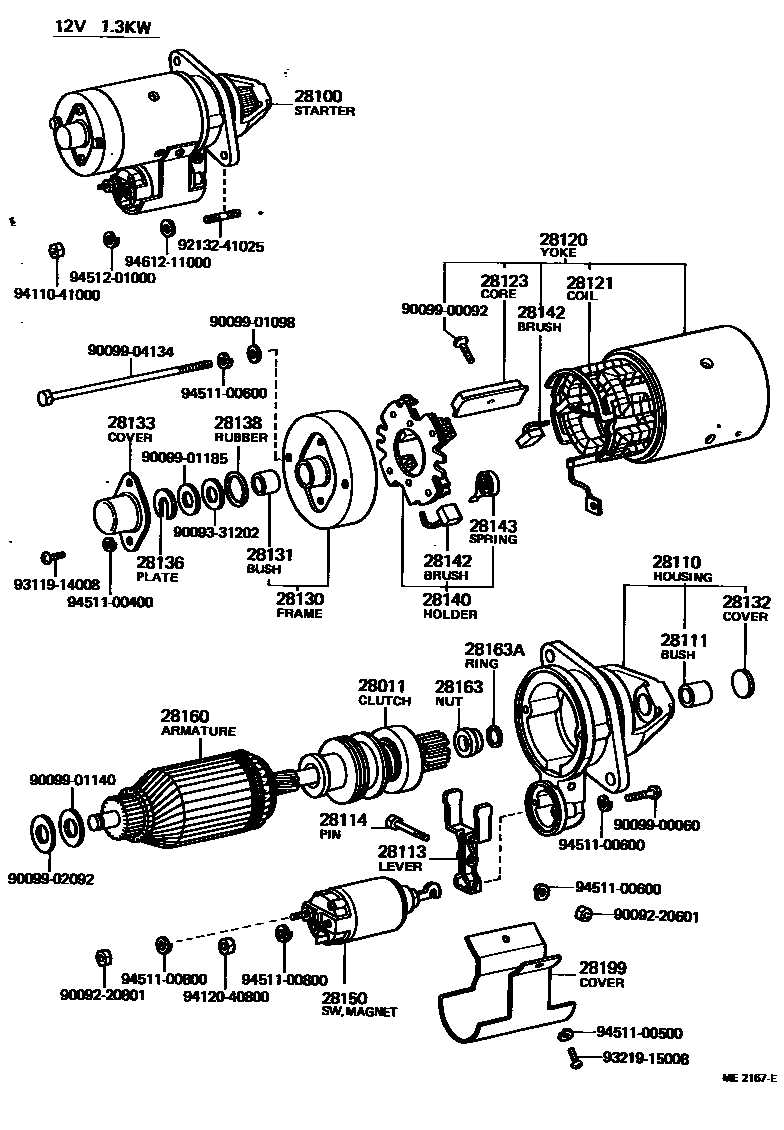

28011CLUTCH SUB-ASSY, STARTER

main28011-26040i4VU..VG21197505-197510

12V 1.4KW

main28011-26041i4VU..VG21197510-197611

12V 1.4KW

main28011-26042i4V#..VG21,3#197611-198209

12V 1.4KW

main28011-40021i3V..VG20196711-196805

12V 1.3KW

main28011-41011i3V,4V#..VG2#,3#196805-198209

12V 1.0KW

main28011-51020i4V..VG21197405-197505

12V 1.4KW

28100STARTER ASSY

main28100-51011i3V..VG20196711-196805

12V 1.3KW

main28100-51012i3V,4V..VG2#196805-197405

12V 1.0KW

main28100-51013i4V..VG21197405-197505

12V 1.0KW

main28100-51014i4VEU..VG35197905-198209

12V 1.0KW

sub28100-51050

main28100-51020i4V..VG21197405-197505

12V 1.4KW

main28100-51030i4VU..VG21197505-197510

12V 1.4KW

main28100-51031i4V#..VG21,3#197510-198209

12V 1.4KW

sub28100-51040

28110HOUSING ASSY, STARTER DRIVE

main28110-51011i3V..VG20196711-196805

12V 1.3KW

main28110-51012i3V,4V#..VG2#,3#196805-198209

12V 1.0KW

main28115-51020i4V..VG21197405-197505

12V 1.4KW

main28115-51030i4V#..VG21,3#197505-198209

12V 1.4KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3V,4V#..VG2#,3#196902-198209

12V 1.0KW,STD

main90099-10033i3V..VG20196805-196902

12V 1.0KW,U/S 0.3

main90099-10038i3V..VG20196805-196902

12V 1.0KW,U/S 0.5

main90099-10050i3V..VG20196711-196805

12V 1.3KW,STD

main90099-10052i3V..VG20196711-196805

12V 1.3KW,U/S 0.3

main90099-10053i3V..VG20196711-196805

12V 1.3KW,U/S 0.5

main90099-51010i3V..VG20196805-196902

12V 1.0KW,STD

28113LEVER, STARTER PINION DRIVE

main28113-40010i3V..VG20196711-196805

12V 1.3KW

main28113-41011i3V,4V#..VG2#,3#196805-198209

12V 1.0KW

28114PIN, STARTER DRIVE LEVER SET

main28114-40011i3V..VG20196711-196805

12V 1.3KW

main28114-41011i3V,4V#..VG2#,3#196805-198209

12V 1.0KW

28120YOKE ASSY, STARTER

main28120-34030i4V#..VG21,3#197505-198209

12V 1.4KW

main28120-51011i3V..VG20196711-196805

12V 1.3KW

main28120-51012i3V,4V#..VG2#,3#196805-197905

12V 1.0KW

main28120-51013i4VEU..VG35197905-198209

12V 1.0KW

main28120-51020i4V..VG21197405-197505

12V 1.4KW

28121COIL, STARTER FIELD

main28121-34070i4VEU..VG35197905-198209

12V 1.0KW

main28121-41020i3V,4V#..VG2#,3#196805-197905

12V 1.0KW

main28121-50011i3V..VG20196711-196805

12V 1.3KW

28123CORE, STARTER POLE

main28123-41020×4i3V,4V#..VG2#,3#196805-198209

12V 1.0KW

main28123-50010×4i3V..VG20196711-196805

12V 1.3KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-41020i3V,4V#..VG2#,3#196805-198209

12V 1.0KW

main28130-51010i3V..VG20196711-196805

12V 1.3KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW,STD

main90099-10039i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW,U/S 0.3

main90099-10040i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW,U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-41010i3V,4V..VG2#196711-197405

12V 1.0KW,1.3KW

main28166-41010i4V#..VG21,3#197405-198209

12V 1.0KW

28133COVER, BEARING(FOR END FRAME)

main28132-40010i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW

28136PLATE, STARTER LOCK

main28136-40010i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-40010i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW

sub28138-26030

28140HOLDER ASSY, STARTER BRUSH

main28140-34030i4V#..VG21,3#197405-198209

12V 1.4KW

main28140-41020i3V,4V#..VG2#,3#196805-198209

12V 1.0KW

main28140-50011i3V..VG20196711-196805

12V 1.3KW

28142BRUSH, STARTER

main28142-10011×4i3V,4V#..VG2#,3#196805-197905

12V 1.0KW

main28142-25011×4i4VEU..VG35197905-198209

12V 1.0KW

main28148-50010×4i3V..VG20196711-196805

12V 1.3KW

28143SPRING, STARTER BRUSH

main28143-40010×4i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW

sub28143-40040

main90099-17112×4i4V#..VG21,3#197405-198209

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-22010i3V..VG20196711-196805

12V 1.3KW

main28150-41011i3V,4V..VG2#196805-197405

12V 1.0KW

sub28150-33020

main28150-51010i4V#..VG21,3#197505-198209

12V 1.0KW

main28150-51013i4V..VG21197405-197505

12V 1.0KW

main28150-51020i4V..VG21197405-197505

12V 1.4KW

main28150-51030i4VU..VG21197505-197510

12V 1.4KW

main28150-51031i4V#..VG21,3#197510-198209

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-26050i4V#..VG21,3#197505-198209

12V 1.4KW

main28160-45020i4V..VG21197405-197505

12V 1.4KW

main28160-50011i3V..VG20196711-196805

12V 1.3KW

main28160-51010i3V,4V#..VG2#,3#196805-198209

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i3V,4V#..VG2#,3#196711-198209

12V 1.0KW,1.3KW

28199COVER, STARTER

main28199-51011i3V..VG20196711-196805

12V 1.3KW

main28199-51012i3V,4V..VG2#196805-197405

12V 1.0KW

main28199-51020i4V..VG21197405-197505

12V 1.4KW

9009220601

main90092-20601

9009220801

main90092-20801

9009331202

main90093-31202

9009900060

main90099-00060

9009900092

main90099-00092

9009901098

main90099-01098

9009901140

main90099-01140

9009901185

main90099-01185

9009902092

main90099-02092

9009904134

main90099-04134

9213241025

main92132-41025

9311914008

main93119-14008

9321915008

main93219-15008

9411041000

main94110-41000

9412040800

main94120-40800

9451100400

main94511-00400

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9451201000

main94512-01000

9461211000

main94612-11000
