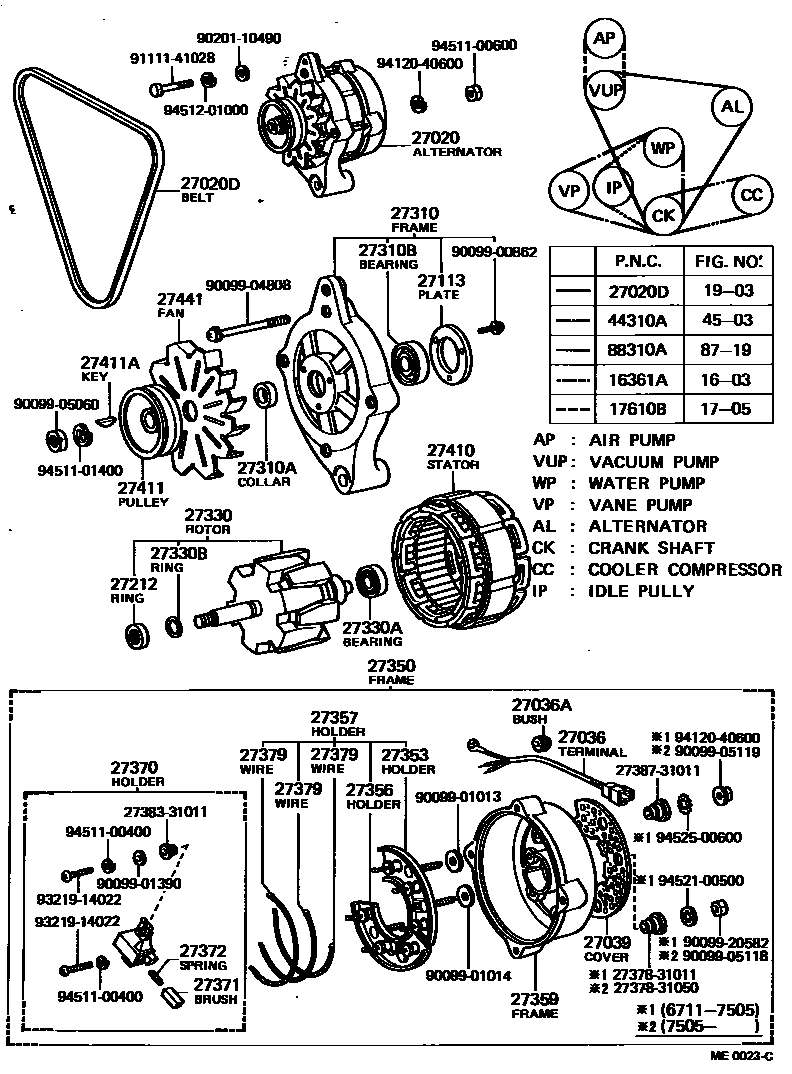

ALTERNATOR

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main99522-11000i3V..VG20196711-197302

1705AIR PUMP

→ Go to FIG 17-05

17610BBELT, V(FOR AIR PUMP)

main99321-00590i4VU..VG30197803-197811

main99521-10593i4VU..VG21,30197505-197803

1903ALTERNATOR

→ Go to FIG 19-03

27020ALTERNATOR ASSY

main27020-51020i3V..VG20196711-196808

12V 65A

main27020-51021i3V..VG20196808-197002

12V 80A

main27020-51022i3V,4V..VG2#197002-197505

12V 80A

main27020-51023i4VU..VG21,30197505-197811

12V 80A

main27020-52010i4VEU..VG35197811-197903

12V 80A

main27020-52011i4VEU..VG35197903-198209

12V 80A

27020DBELT, FAN(FOR ALTERNATOR)

main90916-02029i3V,4V..VG2#196711-197505

12V 65A,80A

main90916-02042i4VU..VG21,30197505-197803

12V 80A

main99332-01335i4V#..VG3#197803-198209

12V 80A

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

main27036-51010i3V..VG20196711-197002

12V 65A,80A

main27036-51022i3V,4V..VG2#197002-197505

12V 80A

main27036-51023i4VU..VG21,30197505-197811

12V 80A

27036ABUSH, CORD(FOR TERMINAL LEAD WIRE)

main90099-32039i3V,4V#..VG2#,3#196711-198209

12V 65A,80A

27039COVER, ALTERNATOR REAR END

main27039-34010i4VEU..VG35197811-198209

12V 80A

main27039-51022i3V,4V#..VG2#,30197002-197811

12V 80A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-45010i4V#..VG21,3#197505-198209

12V 80A

main27312-51020i3V,4V..VG2#196711-197505

12V 65A,80A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i4V#..VG21,3#197505-198209

12V 80A

main27333-51020i3V,4V..VG2#196711-197505

12V 65A,80A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-51020i3V,4V..VG2#196711-197505

12V 65A,80A

main27310-51021i4VU..VG21,30197505-197811

12V 80A

main27310-52010i4VEU..VG35197811-198209

12V 80A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main90099-19203i3V,4V#..VG2#,3#196711-198209

12V 65A,80A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10065i3V,4V..VG2#196711-197505

12V 65A,80A

main90099-10094i4V#..VG21,3#197505-198209

12V 80A

27330ROTOR ASSY, ALTERNATOR

main27330-51020i3V,4V#..VG2#,30196711-197811

12V 65A,80A

main27330-52010i4VEU..VG35197811-198209

12V 80A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10010i3V,4V..VG2#197002-197505

12V 65A,80A

main90099-10103i4VU..VG21,30197505-197811

12V 80A

main90099-10111i4VEU..VG35197811-198209

12V 80A

main97110-06201i3V..VG20196711-197002

12V 65A,80A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i3V,4V#..VG2#,30196711-197811

12V 65A,80A

27350FRAME ASSY, RECTIFIER END

main27350-51020i3V..VG20196711-196808

12V 65A

main27350-51021i3V..VG20196808-197002

12V 80A

main27350-51022i3V,4V..VG2#197002-197505

12V 80A

main27350-51023i4VU..VG21,30197505-197811

12V 80A

main27350-52010i4VEU..VG35197811-197903

12V 80A

main27350-52011i4VEU..VG35197903-198209

12V 80A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-51020i3V..VG20196711-196808

12V 65A

main27353-51021i3V..VG20196808-197002

12V 80A

main27353-51022i3V,4V..VG2#197002-197505

12V 80A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-51020i3V..VG20196711-196808

12V 65A

main27356-51021i3V..VG20196808-197002

12V 80A

main27356-51022i3V,4V..VG2#197002-197505

12V 80A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-51020i3V..VG20196711-196808

12V 65A

main27357-51021i3V..VG20196808-197002

12V 80A

main27357-51022i3V,4V#..VG2#,30197002-197811

12V 80A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-51022i3V,4V#..VG2#,30197002-197811

12V 80A

main27359-52010i4VEU..VG35197811-197903

12V 80A

main27359-52011i4VEU..VG35197903-198209

12V 80A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-51011i3V,4V#..VG2#,30196711-197811

12V 65A,80A

27371BRUSH, ALTERNATOR

main27371-31011×2i3V,4V#..VG2#,3#196711-198209

12V 65A,80A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i3V,4V#..VG2#,3#196711-198209

12V 65A,80A

27379WIRE, ALTERNATOR LEAD

main27037-52010i4VEU..VG35197811-198209

12V 80A

main27379-51020×3i3V..VG20196711-197002

12V 65A,80A

27410STATOR ASSY, ALTERNATOR

main27410-51020i3V..VG20196711-197002

12V 65A,80A

main27410-51022i3V,4V#..VG2#,30197002-197811

12V 80A

main27410-52010i4VEU..VG35197811-198209

12V 80A

27411PULLEY, ALTERNATOR

main27411-51020i3V..VG20196711-196808

12V 65A

main27411-51021i3V..VG20196808-197002

12V 80A

main27411-51022i3V,4V#..VG2#,3#197002-198209

12V 80A

27411AKEY(FOR ALTERNATOR PULLEY)

main90099-00405i3V,4V#..VG2#,3#196711-198209

12V 65A,80A

27441FAN, ALTERNATOR

main27441-51020i3V,4V#..VG2#,3#196711-198209

12V 65A,80A

44310ABELT, V(FOR VANE PUMP)

main99522-11148iVG21197303-197505

main99522-11155iVG21,3#197505-198209

main99522-11164iVG20196711-197302

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99323-00890iVG35197811-198209

main99523-10875iVG20196711-196906

main99523-10894iVG2#,30196906-197811

2737831011INSULATOR, ALTERNATOR, NO.1

main27378-31011

2737831050INSULATOR, ALTERNATOR, NO.1

main27378-31050

2738331011WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-31011

2738731011INSULATOR, TERMINAL

main27387-31011

9009900862

main90099-00862

9009901013

main90099-01013

9009901014

main90099-01014

9009901390

main90099-01390

9009904808

main90099-04808

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009920582

main90099-20582

9020110490

main90201-10490

9111141028

main91111-41028

9321914022

main93219-14022

9412040600

main94120-40600

9451100400

main94511-00400

9451100600

main94511-00600

9451101400

main94511-01400

9451201000

main94512-01000

9452100500

main94521-00500

9452500600

main94525-00600

58 parts on this diagram · 2 diagrams in section
