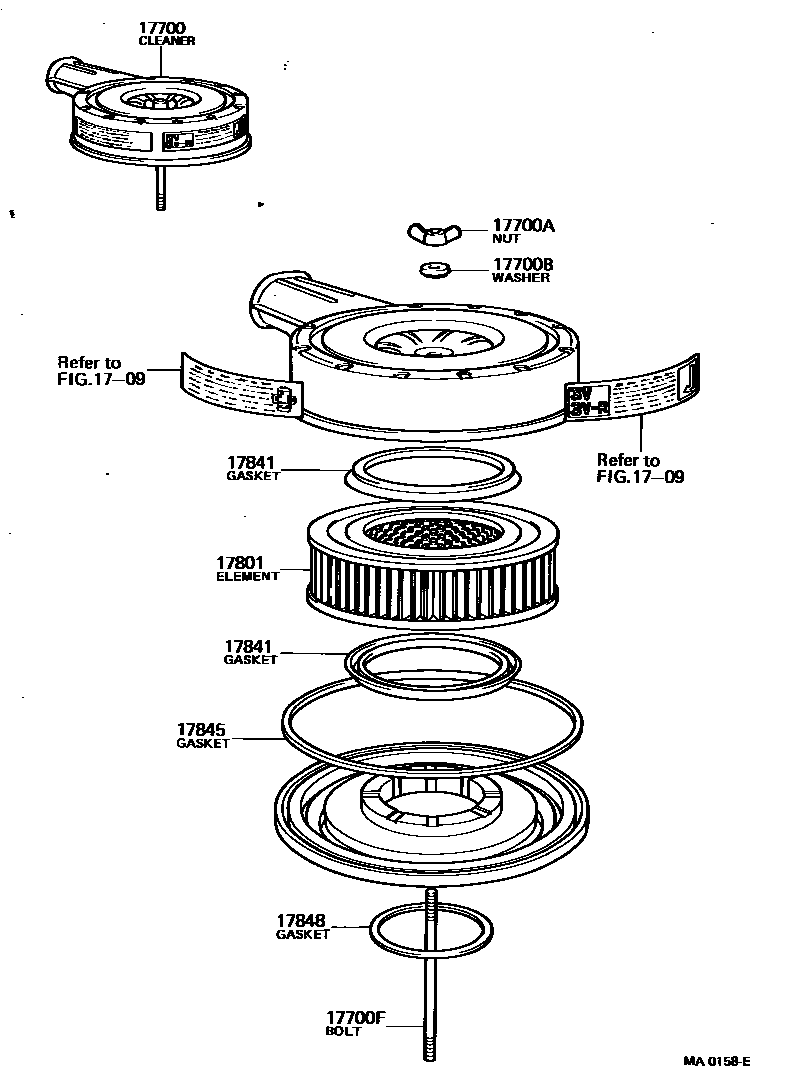

AIR CLEANER

0001 1 0002 1 0003 1

1709

17700CLEANER ASSY, AIR

main17700-51010i3V..VG20196711-196805

main17700-51011i3V..VG20196805-197204

main17700-51012i3V..VG20197204-197209

sub17700-59010

main17700-51013i3V..VG20197209-197302

sub17700-59020

main17700-52010i4V..VG21197303-197405

sub17700-59030

main17700-52011i4V..VG21197405-197505

sub17700-52012

main17700-52020i4VU..VG21197505-197701

main17700-52021i4VU..VG30197701-197710

main17700-52022i4VU..VG30197710-197811

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i4VU..VG30197705-197811

main90175-06026i4VU..VG21,30197505-197705

main94271-00600i3V,4V..VG2#196711-197505

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-06001i3V..VG20196711-197203

main90210-06023i3V,4V..VG2#197203-197505

main90210-09026i4VU..VG21,30197505-197705

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06001i4VU..VG21,30197505-197811

L=115,S=11&20

main90116-06139i3V,4V..VG2#196711-197505

L=122,S=20&20

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-40020i3V,4V#..VG2#,30196711-197811

main17801-52010i4VEU..VG35197811-198209

17841GASKET, FILTER ELEMENT

main17841-40020×2i3V,4V#..VG2#,30196711-197811

17845GASKET, AIR CLEANER CAP

main17845-51011i3V,4V#..VG2#,30196711-197811

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-99154i3V,4V#..VG2#,30196711-197811

9 parts on this diagram · 3 diagrams in section
