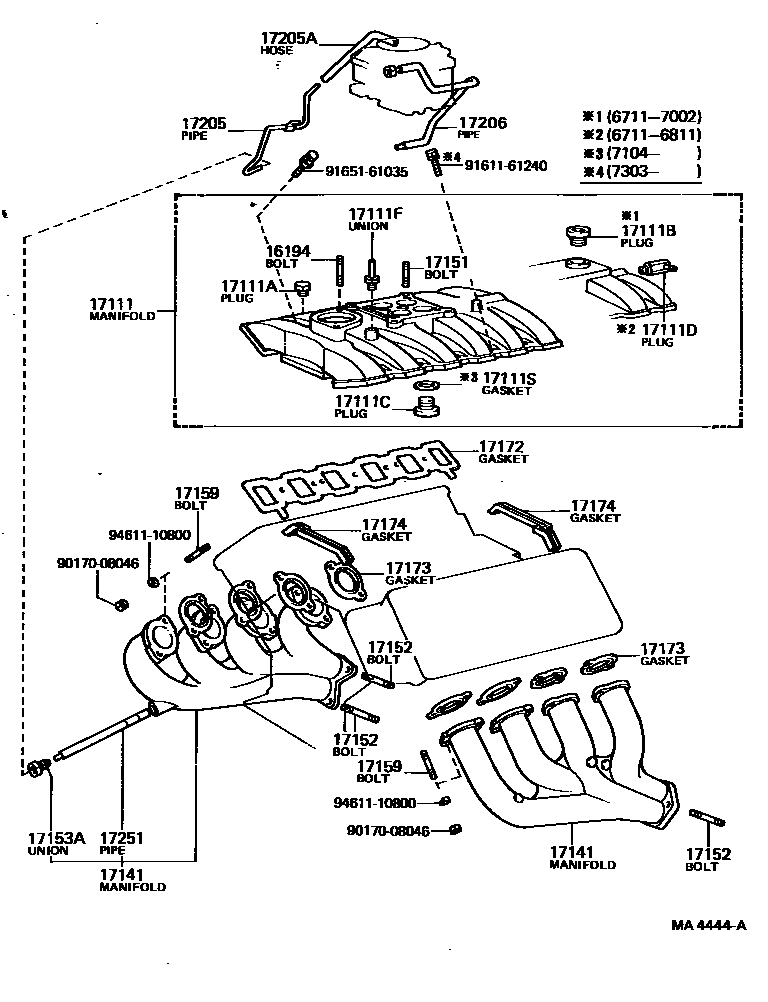

MANIFOLD
17111APLUG, NO.1
17111BPLUG, NO.2
L=12,S=10
17111CPLUG, NO.3
17111DPLUG, NO.4
sub90407-17030
17111FUNION(FOR VACUUM HOSE TO CARBURETOR)
17111SGASKET(FOR MANIFOLD PLUG)
17141MANIFOLD, EXHAUST
RH
RH
RH
LH
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=37,S=13.5
L=45,S=14.5&14.5
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=37,S=20&13
L=41,S=21&14
L=37,S=20&13
L=42,S=20&20
17153AUNION(FOR AUTOMATIC CHOKE STOVE PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=37,S=14&14
L=41,S=14&14
L=41,S=16&16
17173GASKET, EXHAUST MANIFOLD TO HEAD
17174GASKET, INTAKE MANIFOLD TO BLOCK
17205PIPE, AUTOMATIC CHOKE STOVE INLET
17205AHOSE(FOR AUTOMATIC CHOKE STOVE PIPE)
17206PIPE, AUTOMATIC CHOKE STOVE OUTLET
17251PIPE,AUTOMATIC CHOKE STOVE
9017008046
main90170-08046
9161161240
main91611-61240
9165161035
main91651-61035
9461110800
main94611-10800
24 parts on this diagram · 3 diagrams in section
