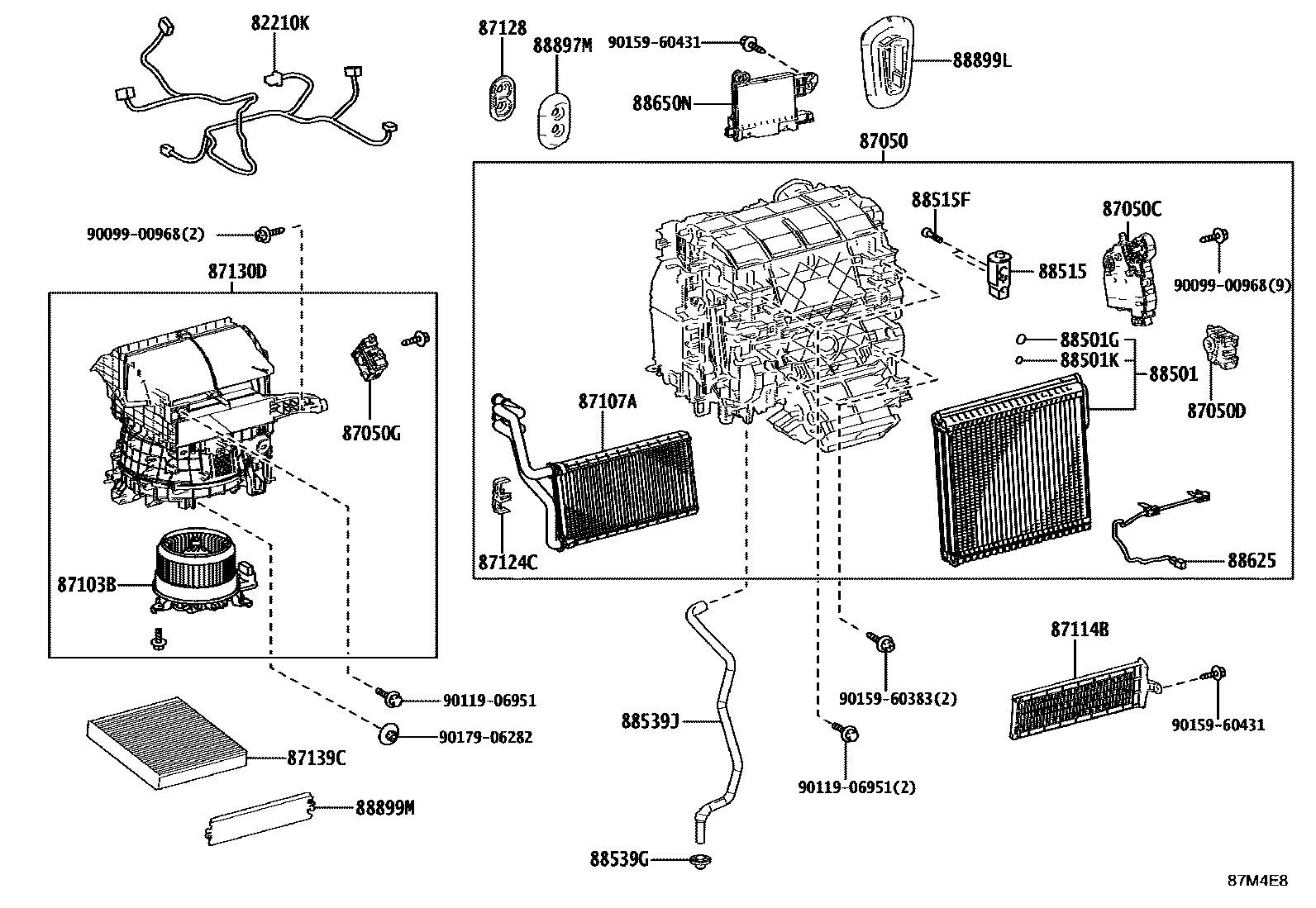

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-42060iAZSH3#202406

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30820iAZSH38202406

main87050-78261iAZSH39202407

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-42240iAZSH38202406

main87106-48170iAZSH39202407

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-33340iAZSH3#202406

87050GDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5

main87106-28250iAZSH39202407

main87106-33330iAZSH38202406

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42130iAZSH39202407

main87103-58060iAZSH38202406

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33140iAZSH3#202406

87114BCOVER, HEATER

main87114-33050iAZSH38202406

main87114-48120iAZSH39202407

87124CCLAMP, HEATER

main87124-33070iAZSH3#202406

87128GROMMET, HEATER

main87128-28010iAZSH3#202406

87130DBLOWER ASSY

main87130-33290iAZSH38202406

main87130-42480iAZSH39202407

87139CFILTER, CLEAN AIR

main87139-76020iAZSH3#202406

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33350iAZSH3#202406

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAZSH38202406

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iAZSH38202406

88515VALVE, COOLER EXPANSION

main88515-58050iAZSH38202406

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iAZSH3#202406

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iAZSH3#202406

88539JHOSE, DRAIN COOLER

main88539-30A50iAZSH3#202406

88625THERMISTOR, COOLER, NO.1

main88620-28050iAZSH3#202406

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-30030iAZSH38..Z202406

main886H0-30040iAZSH38..G202406

main886H0-30051iAZSH39..RS,Z202407

main886H0-30061iAZSH39..G202407

88897MGROMMET (FOR HEATER PIPE)

main87128-33020iAZSH3#202406

88899LPARTS, COOLING UNIT

main88899-33080iAZSH38202406

main88899-42140iAZSH39202407

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iAZSH3#202406

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282
