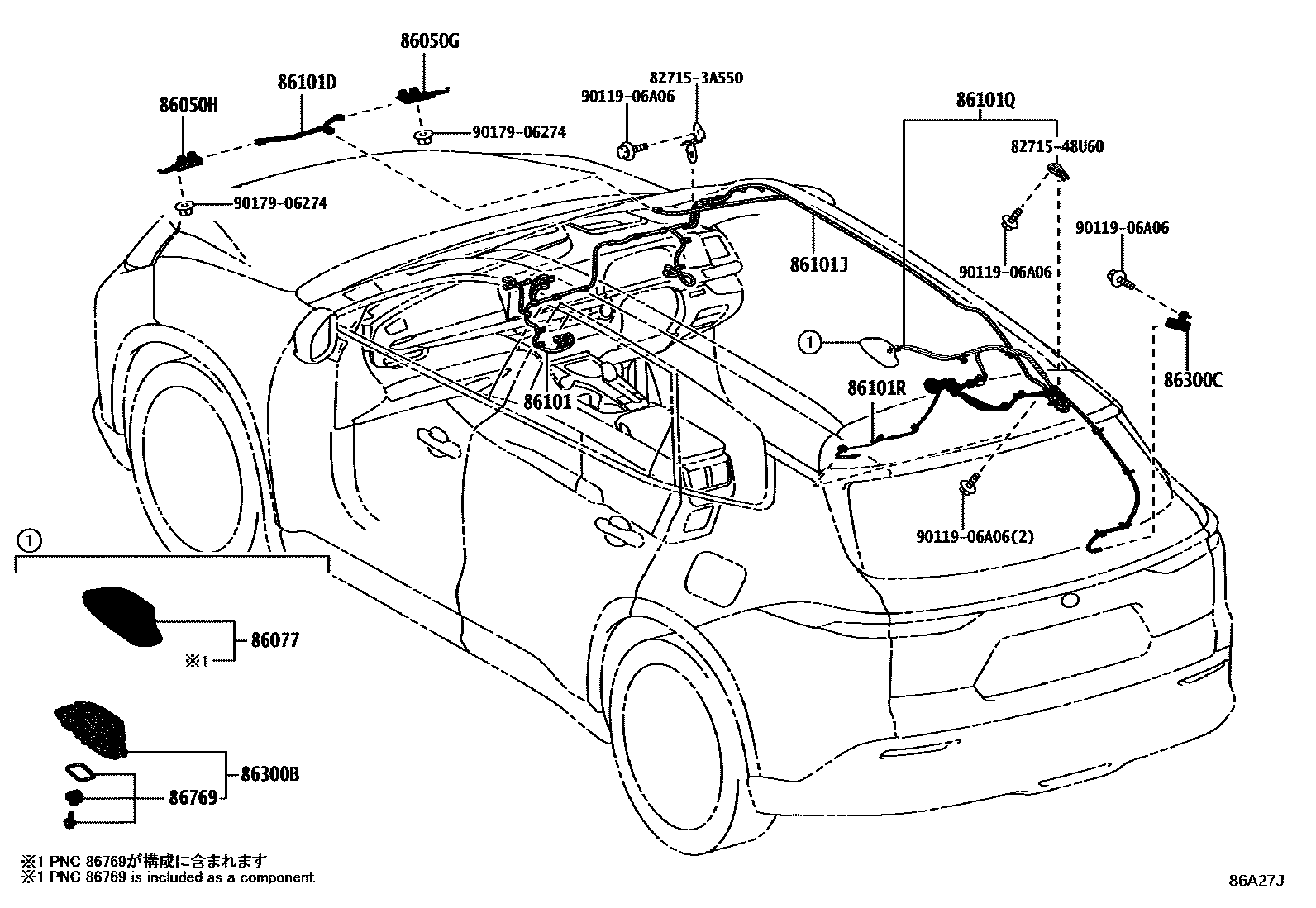

ANTENNA
86050GANTENNA ASSY, TELEVISION, NO.1 RH
86050HANTENNA ASSY, TELEVISION, NO.1 LH
86077COVER KIT, ANTENNA
PRECIOUS WHITE PEARL,090
PRECIOUS METAL,M37
BLACK,1L6 ,202 ,2XW ,2XY ,2XZ ,2ZR ,3U9 ,M18 ,M22 ,M24 ,M26 ,M27
PRECIOUS BRONZE,4Y6
GRAY METALLIC MATT,1M1
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300CANTENNA ASSY, AMPLIFIER, NO.2
86769HOUSING, ROOF ANTENNA
827153A550BRACKET,WIRING HARNESS CLAMP
main82715-3A550
8271548U60BRACKET,WIRING HARNESS CLAMP
main82715-48U60
9011906A06
main90119-06A06
9017906274
main90179-06274
15 parts on this diagram · 1 diagram in section
