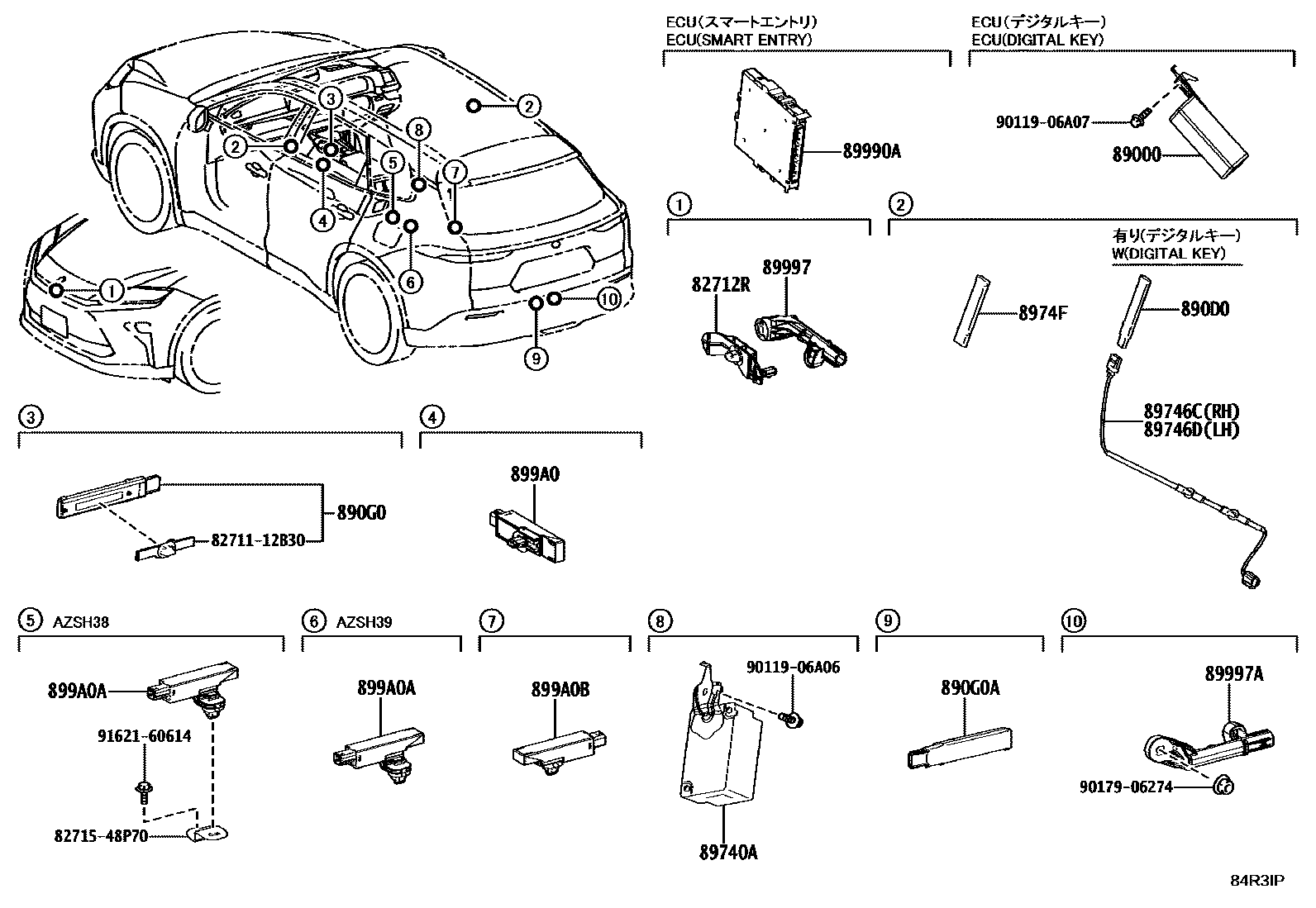

WIRELESS DOOR LOCK

82712RSUPPORT, ELECTRICAL KEY ANTENNA

main82712-62030iAZSH3#..RS,Z202406

89000COMPUTER ASSY, DIGITAL KEY

main89000-30150

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-76010

main890G0-V1010

890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-30370iAZSH3#202406

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

8974FCASE, W/O DIGITAL KEY

main8974F-78010iAZSH3#202406

89990ACOMPUTER ASSY, SMART KEY

main899H0-30140iAZSH3#202406

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAZSH3#..RS,Z202406

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iAZSH3#202406

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iAZSH3#202406

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-42030iAZSH3#202406

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iAZSH3#202406

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

8271548P70BRACKET,WIRING HARNESS CLAMP

main82715-48P70

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9017906274

main90179-06274

9162160614

main91621-60614

21 parts on this diagram · 1 diagram in section
