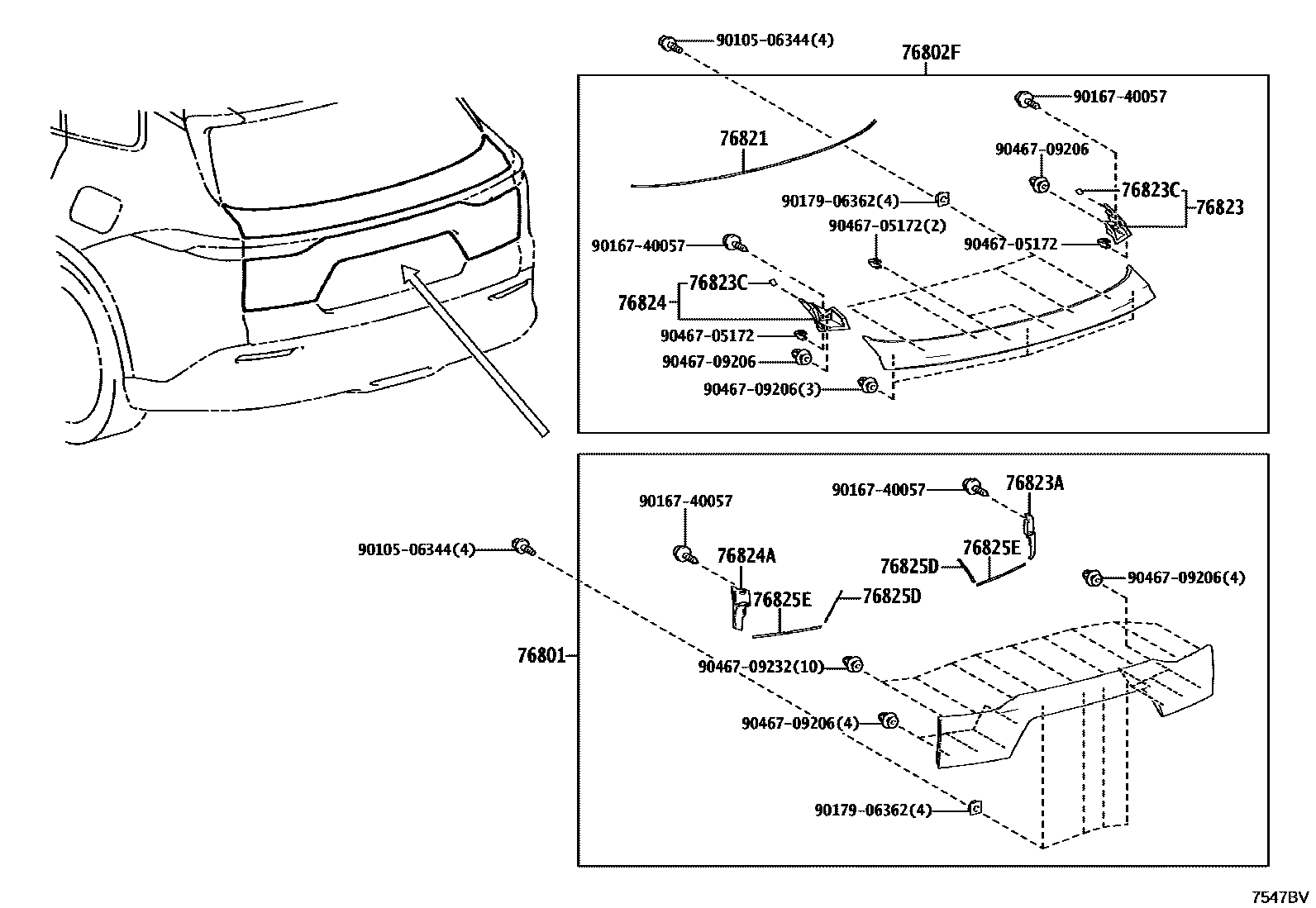

REAR MOULDING

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-30430-A0supersedes 76801-30420-A0iAZSH3#..G; AZSH3#..RS,Z202406

main76801-30430-B0supersedes 76801-30420-B0iAZSH39..G; AZSH39..RS,Z202407

main76801-30430-B1iAZSH39..RS202411

GRAY METALLIC MATT,1M1

main76801-30430-C0supersedes 76801-30420-C0iAZSH3#..G; AZSH3#..RS,Z202406

main76801-30430-D1supersedes 76801-30420-D1iAZSH3#..G; AZSH3#..RS,Z202406

main76801-30430-E1supersedes 76801-30420-E1iAZSH3#..G; AZSH3#..RS,Z202406

76802FGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER

main76802-30010-A0iAZSH3#202406

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main76802-30010-B0iAZSH39202407

MASSIVE GRAY,1L6 ,2XY ,M22 ,M37

main76802-30010-B1iAZSH39..RS202411

GRAY METALLIC MATT,1M1

main76802-30010-C0iAZSH3#202406

BLACK,202

main76802-30010-D1iAZSH3#202406

EMOTIONAL RED 3,2ZR ,3U9 ,M24

main76802-30010-E1iAZSH3#202406

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-30090iAZSH3#202406

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-30070iAZSH3#202406

76823APROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH

main76823-30060iAZSH3#202406

76823CPROTECTOR, BACK DOOR GARNISH MOULDING, NO.2

main76823-48020×2iAZSH3#202406

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-30060iAZSH3#202406

76824APROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH

main76824-30030iAZSH3#202406

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76825-30040×2iAZSH3#202406

76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76825-30050×2iAZSH3#202406

9010506344

main90105-06344

9016740057

main90167-40057

9017906362

main90179-06362

9046705172

main90467-05172

9046709206

main90467-09206

9046709232

main90467-09232

16 parts on this diagram · 1 diagram in section
