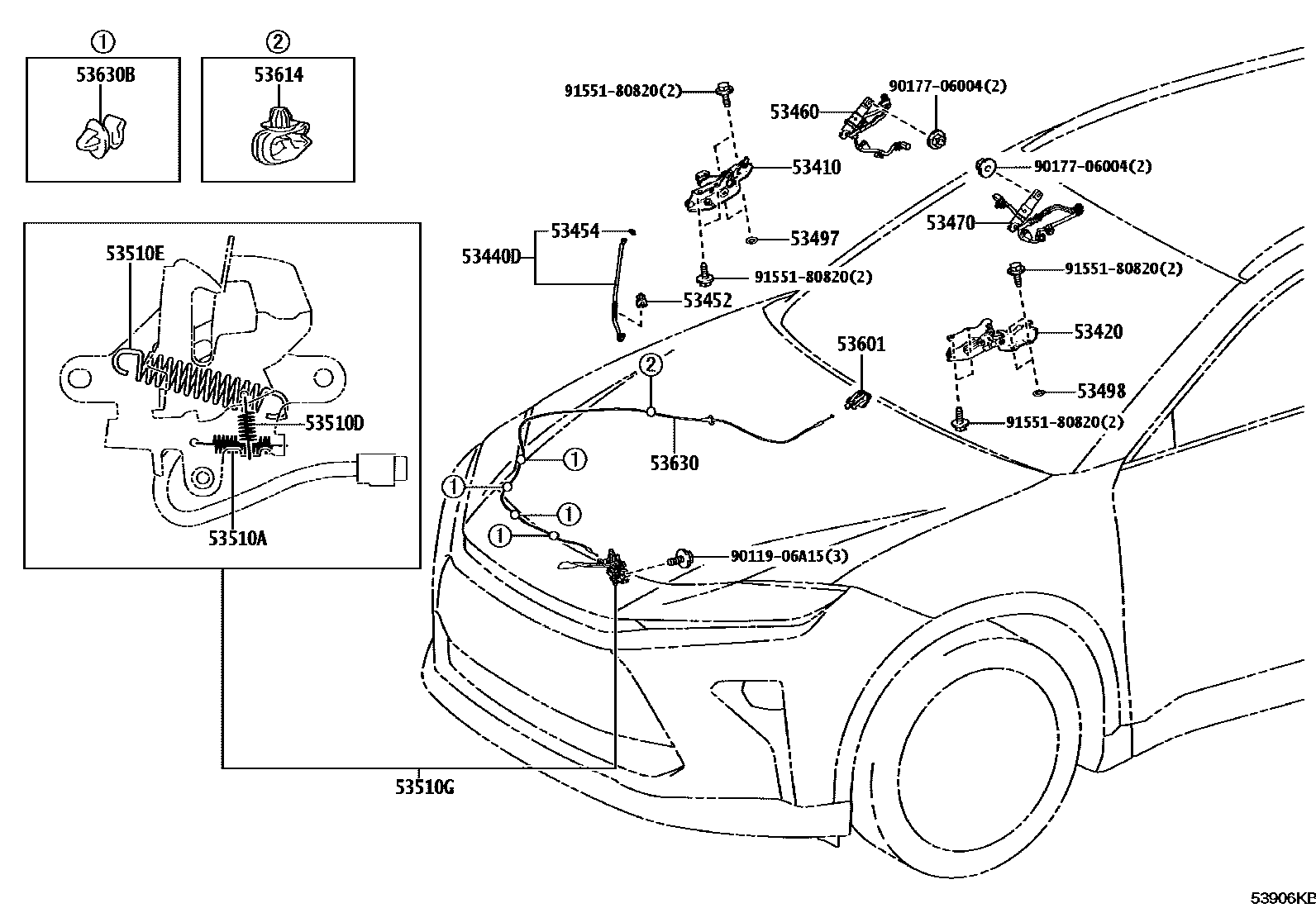

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-30370iAZSH3#202406

53420HINGE ASSY, HOOD, LH

main53420-30380iAZSH3#202406

53440DSUPPORT ASSY, HOOD

main53440-30210iAZSH3#202406

53452HOLDER, HOOD STAY

main53452-10010iAZSH3#202406

53454CLIP, HOOD SUPPORT ROD

main53454-12030iAZSH3#202406

53460LIFTER ASSY, POP UP HOOD, RH

main53460-30160iAZSH3#202406

53470LIFTER ASSY, POP UP HOOD, LH

main53470-30140iAZSH3#202406

53497PAD, HOOD HINGE, NO.1

main53497-50020×2iAZSH3#202406

53498PAD, HOOD HINGE, NO.2

main53497-50020×2iAZSH3#202406

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAZSH3#202406

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAZSH3#202406

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iAZSH3#202406

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-30480iAZSH3#202406

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iAZSH3#..G; AZSH3#..RS,Z202406

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-16790iAZSH3#202406

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-30400iAZSH3#202406

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×4iAZSH3#202406

9011906A15

main90119-06A15

9017706004

main90177-06004

9155180820

main91551-80820

20 parts on this diagram · 1 diagram in section
