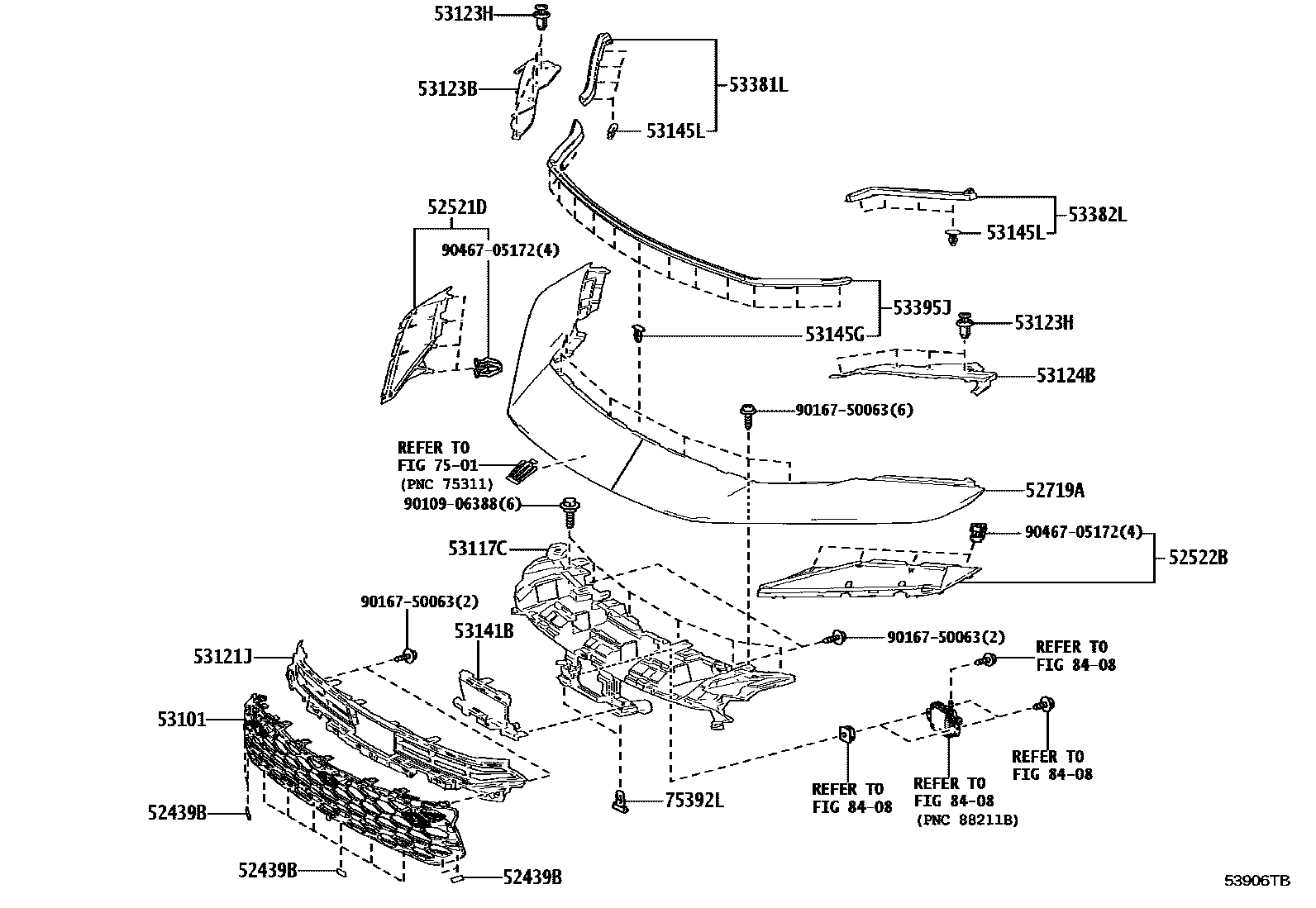

RADIATOR GRILLE

52439BTAPE, FRONT BUMPER GUARD PROTECTOR

main52439-30010×10iAZSH3#202406

52521DRETAINER, FRONT BUMPER FILLER, NO.1

main52521-30130iAZSH3#202406

52522BRETAINER, FRONT BUMPER FILLER, NO.2

main52522-30060iAZSH3#202406

52719ACOVER, FRONT BUMPER MOULDING

main52719-30050-A0iAZSH3#202406

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main52719-30050-B0iAZSH38202406

MASSIVE GRAY,1L6 ,2XY ,M22

main52719-30050-B1iAZSH39..RS202411

GRAY METALLIC MATT,1M1

main52719-30050-C0iAZSH3#202406

BLACK,202

main52719-30050-D1iAZSH3#202406

EMOTIONAL RED 3,2ZR ,3U9 ,M24

main52719-30050-E1iAZSH3#202406

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

53101GRILLE SUB-ASSY, RADIATOR

main53101-30F80supersedes 53101-30E90iAZSH3#..G; AZSH3#..RS,Z202406

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-30330iAZSH3#202406

53121JMOULDING, RADIATOR GRILLE, NO.1

main53121-30380iAZSH3#202406

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-30190iAZSH3#202406

53123HCLIP, RADIATOR GRILLE SIDE MOULDING

main90467-05063-C0×8iAZSH3#202406

BLACK

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-30170iAZSH3#202406

53141BGARNISH, RADIATOR GRILLE, NO.1

main53141-30650iAZSH3#; AZSH3#..G202406

53145GCLIP, RADIATOR GRILLE

main53145-60030×14iAZSH3#202406

53145LCLIP, RADIATOR GRILLE

main53145-60030×8iAZSH3#202406

53381LSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-30290iAZSH3#202406

53382LSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-30100iAZSH3#202406

53395JSEAL, HOOD TO FRONT END PANEL

main53395-30040iAZSH3#202406

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75392LRETAINER, OUTSIDE MOULDING

main75392-35220×2iAZSH3#202406

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010906388

main90109-06388

9016750063

main90167-50063

9046705172

main90467-05172

22 parts on this diagram · 1 diagram in section
