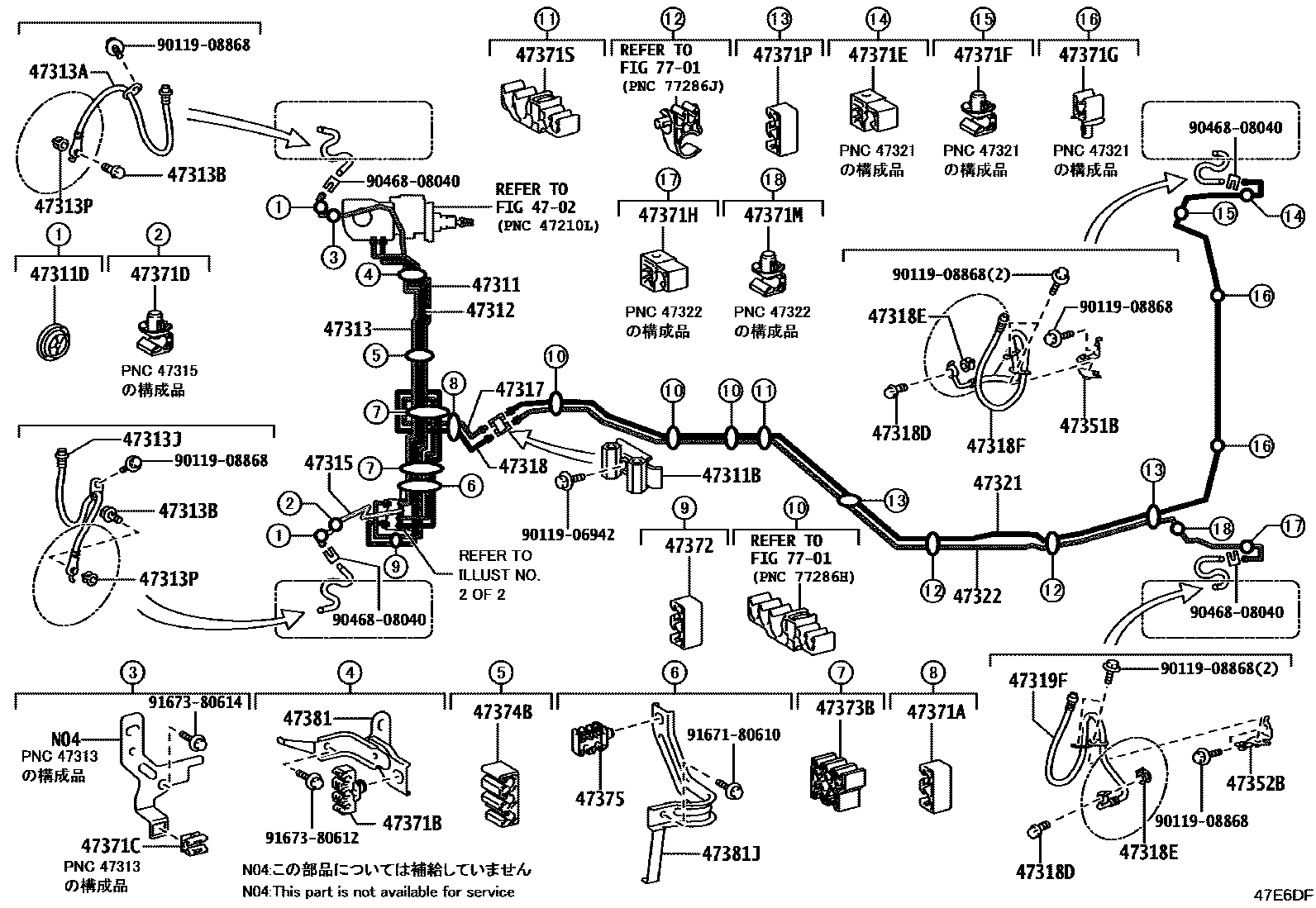

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-30790iAZSH38202406

main47311-30830iAZSH39202407

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10314iAZSH3#202406

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iAZSH3#202406

47312TUBE, FRONT BRAKE, NO.2

main47312-30A90iAZSH38202406

main47312-30B30iAZSH39202407

47313TUBE, FRONT BRAKE, NO.3

main47313-30B30iAZSH39202407

main47313-30B90iAZSH38202406

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02L01iAZSH38;AZSH39..G202406

main90947-02L03iAZSH39..RS,Z202407

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAZSH3#202406

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02L02iAZSH38;AZSH39..G202406

main90947-02L12iAZSH39..RS,Z202407

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAZSH3#202406

47315TUBE, FRONT BRAKE, NO.5

main47315-30610iAZSH39202407

main47315-30660iAZSH38202406

47317TUBE, FRONT BRAKE, NO.7

main47317-30150iAZSH38202406

main47317-30170iAZSH39202407

47318TUBE, FRONT BRAKE, NO.8

main47318-30110iAZSH38202406

main47318-30130iAZSH39202407

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAZSH3#202406

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAZSH3#202406

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J91iAZSH39202407

main90947-02K40iAZSH38202406

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J92iAZSH39202407

main90947-02K41iAZSH38202406

47321TUBE, REAR BRAKE, NO.1

main47321-30560iAZSH39202407

main47321-30570iAZSH38202406

47322TUBE, REAR BRAKE, NO.2

main47322-30730iAZSH39202407

main47322-30740iAZSH38202406

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-48030iAZSH3#202406

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-48030iAZSH3#202406

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00903iAZSH3#202406

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01E80iAZSH3#202406

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D56iAZSH38202406

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D17iAZSH3#202406

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01C82iAZSH3#202406

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iAZSH3#202406

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01E01×3iAZSH38202406

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01C82iAZSH3#202406

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D17iAZSH3#202406

47371PCLAMP, BRAKE TUBE, NO.14

main90464-00903×2iAZSH38202406

47371SCLAMP, BRAKE TUBE, NO.17

main77298-10080iAZSH38202406

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E23iAZSH3#202406

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E40×2iAZSH3#202406

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E43iAZSH3#202406

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E79iAZSH3#202406

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-30160iAZSH3#202406

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main47381-30170iAZSH38202406

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906942

main90119-06942

9011908868

main90119-08868

9046808040

main90468-08040

9167180610

main91671-80610

9167380612

main91673-80612

9167380614

main91673-80614

45 parts on this diagram · 4 diagrams in section
