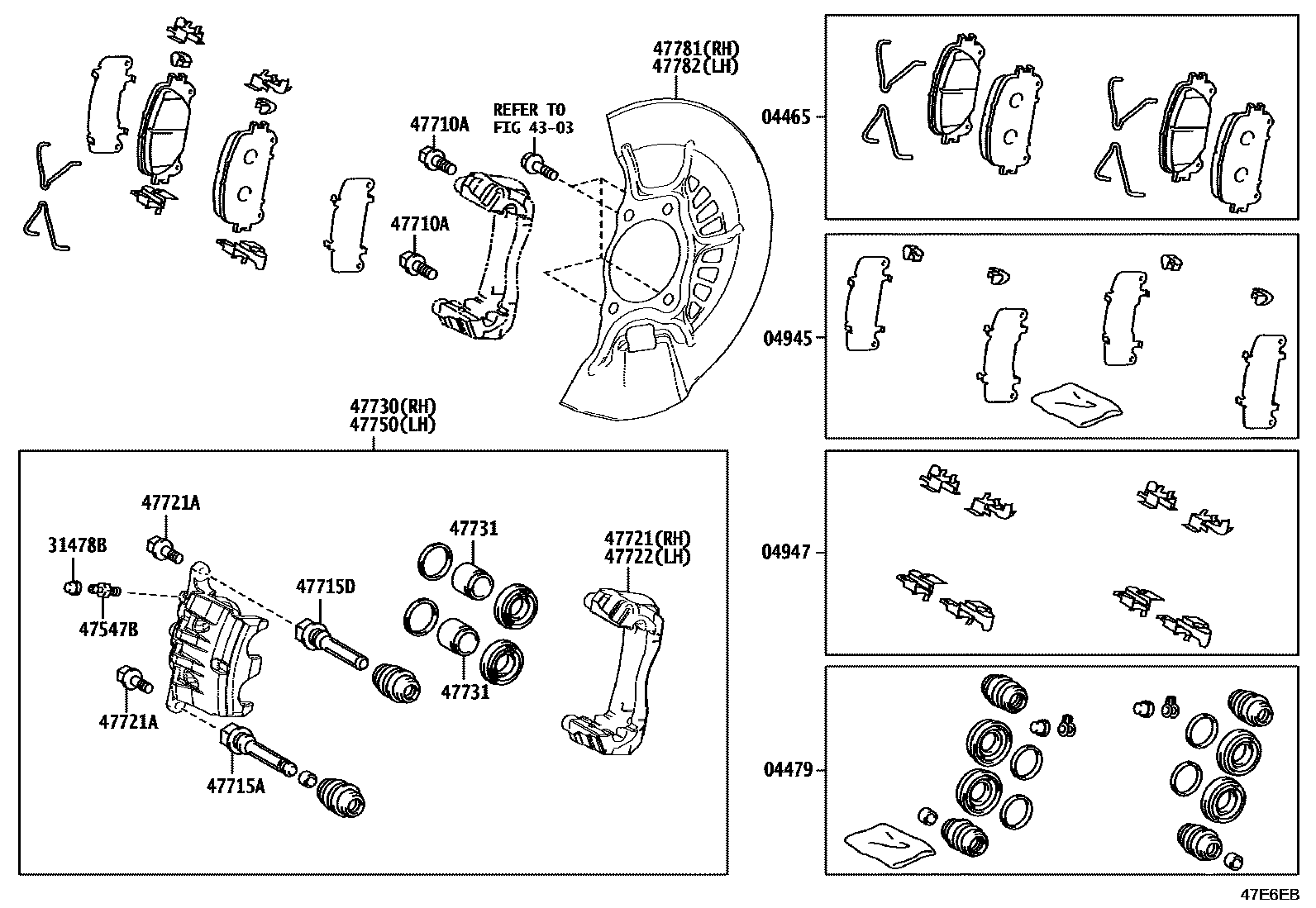

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-48260iAZSH39..G202407

main04465-48270iAZSH39..RS,Z202407

main04465-78010iAZSH38202406

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48200iAZSH38202406

main04478-48210iAZSH39..G202407

main04478-48240iAZSH39..RS,Z202407

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAZSH38202406

main04945-48200iAZSH39..G202407

main04945-48220iAZSH39..RS,Z202407

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAZSH38202406

main04947-48090iAZSH39..G202407

main04947-48100iAZSH39..RS,Z202407

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iAZSH39..RS,Z202407

main31478-30010×2iAZSH38;AZSH39..G202406

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130×2iAZSH38202406

main47547-20010×2iAZSH39..G202407

main47547-50010×2iAZSH39..RS,Z202407

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401×4iAZSH38202406

main90105-14212×4iAZSH39202407

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150×2iAZSH38202406

main47715-48200×2iAZSH39..G202407

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48200×2iAZSH39..G202407

main47715-48150×2iAZSH38202406

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iAZSH38202406

main47721-48220iAZSH39..G202407

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602×4iAZSH38202406

main90015-AA608×4iAZSH39..G202407

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iAZSH38202406

main47722-48190iAZSH39..G202407

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-40120iAZSH39..RS,Z202407

main47730-48150iAZSH38202406

main47730-48220iAZSH39..G202407

47731PISTON, FRONT DISC BRAKE

main47731-48150×4iAZSH38202406

main47731-48200×4iAZSH39..G202407

main47731-48260×12iAZSH39..RS,Z202407

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-40120iAZSH39..RS,Z202407

main47750-48110iAZSH38202406

main47750-48190iAZSH39..G202407

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAZSH38;AZSH39..G202406

main47781-48060iAZSH39..RS,Z202407

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAZSH38;AZSH39..G202406

main47782-48060iAZSH39..RS,Z202407

18 parts on this diagram · 3 diagrams in section
