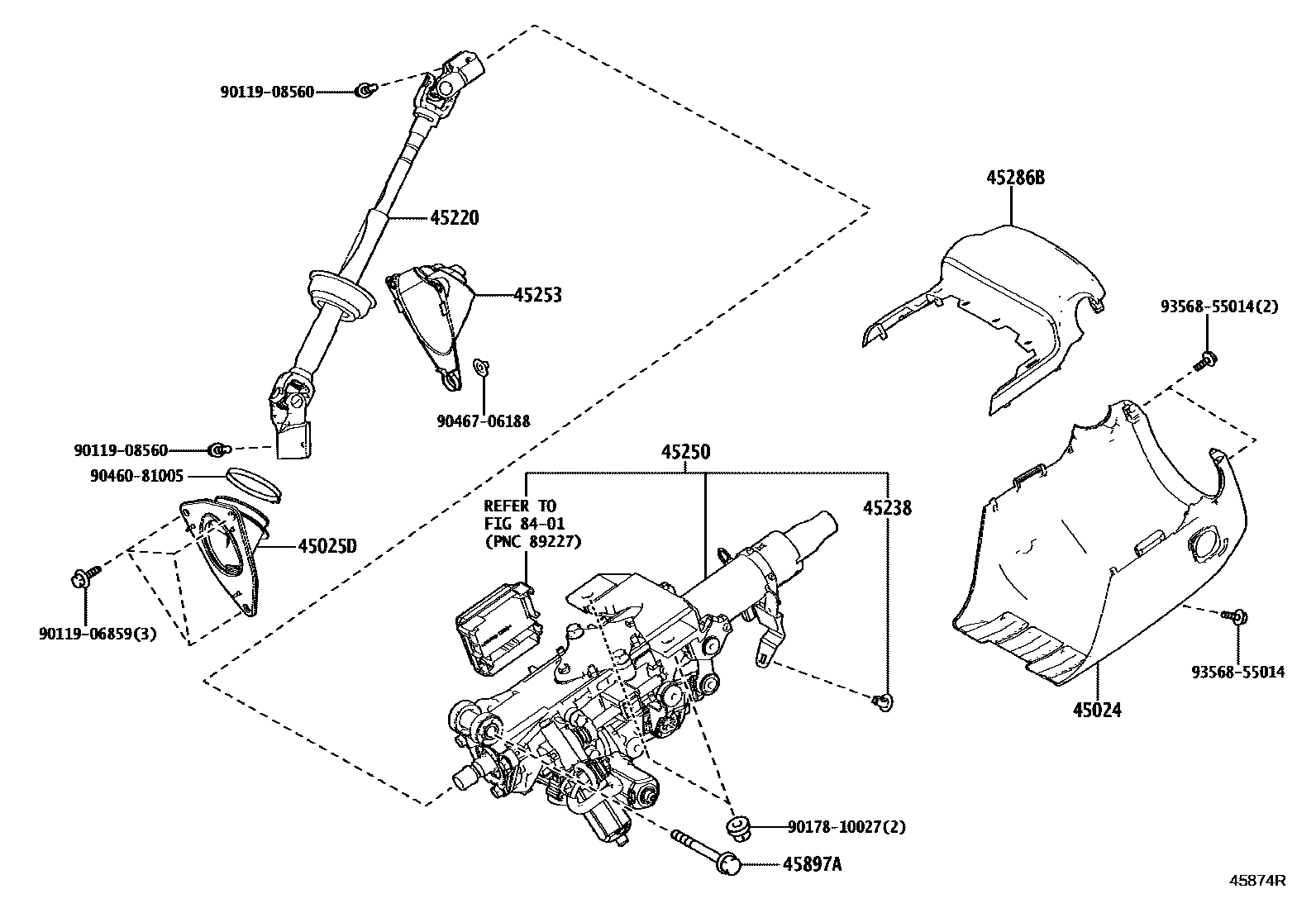

STEERING COLUMN & SHAFT
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45220SHAFT ASSY, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
45253COVER, STEERING COLUMN HOLE
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
45897ABOLT, TILT STEERING PAWL SET
9011906859
main90119-06859
9011908560
main90119-08560
9017810027
main90178-10027
9046081005
main90460-81005
9046706188
main90467-06188
9356855014
main93568-55014
14 parts on this diagram · 1 diagram in section
