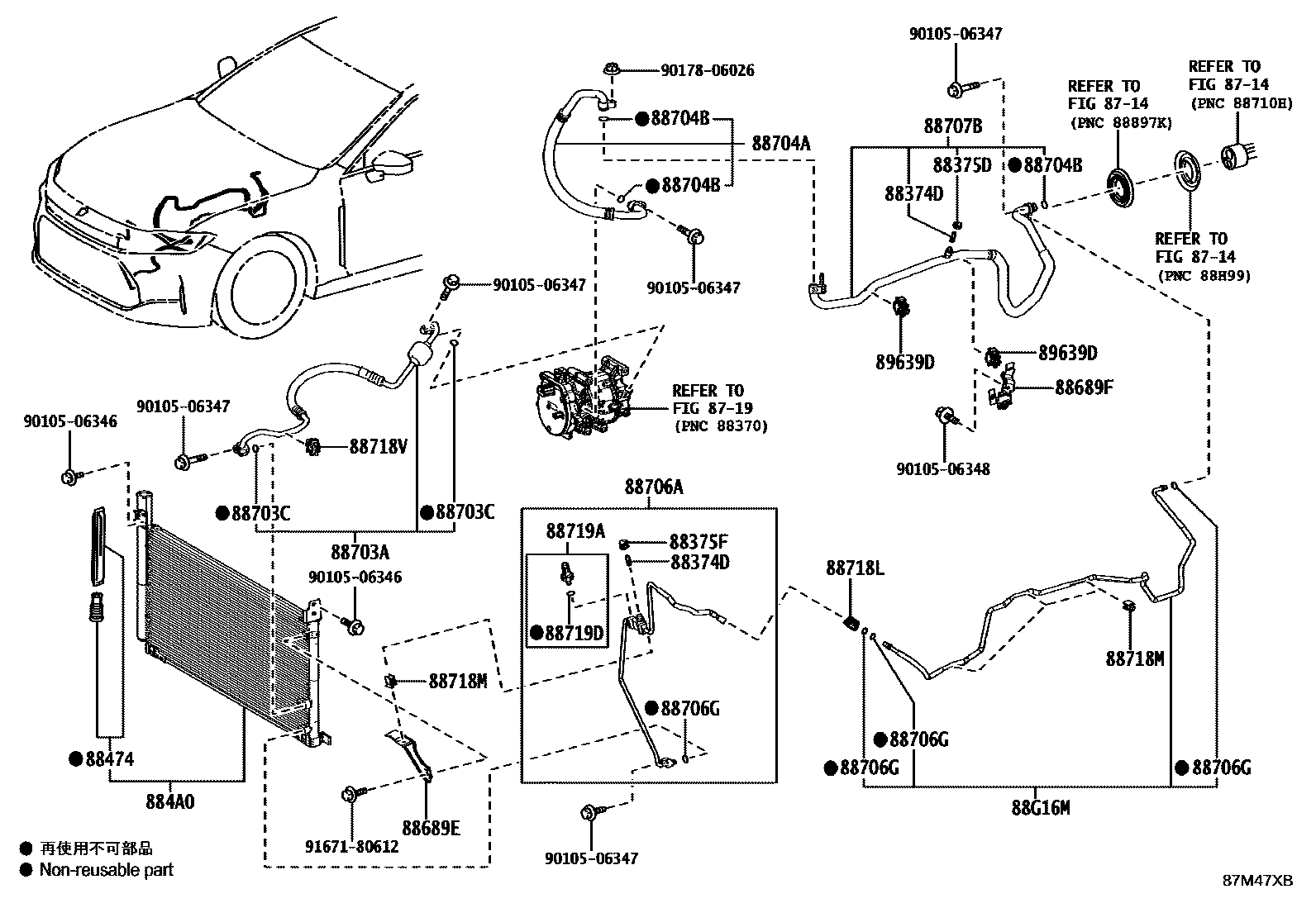

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374DVALVE, SERVICE NO.3

main88374-30010iAZSH32,KZSM30202311

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iAZSH32,KZSM30202311

88375FCAP, SERVICE VALVE, NO.3

main88375-30320iAZSH32,KZSM30202311

88474DRYER, COOLER

main88474-12010iKZSM30202311

main88474-12020iAZSH32202311

884A0CONDENSER ASSY, COOLER

main884A0-30040iAZSH32202311

main884A0-62020iKZSM30202311

88689EBRACKET, COOLER, NO.1

main88688-50390iAZSH32202311

main88688-62070iKZSM30202311

88689FBRACKET, COOLER, NO.2

main88688-50420iAZSH32202311

main88688-62100iKZSM30202311

88703AHOSE SUB-ASSY, DISCHARGE, NO.1

main88703-30A20iAZSH32202311

main88703-62020iKZSM30202311-202401

main88703-62030iKZSM30202402

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iAZSH32,KZSM30202311

88704AHOSE SUB-ASSY, SUCTION, A

main88704-30890iAZSH32202311

main88704-62020iKZSM30202311

88704BRING, O(FOR SUCTION HOSE)

main90099-14121×3iAZSH32,KZSM30202311

88706ATUBE SUB-ASSY, LIQUID, A

main88706-30B10iAZSH32202311

main88706-62010iKZSM30202311

88706GRING, O(FOR LIQUID TUBE)

main90099-14119×4iAZSH32202311

88707BTUBE SUB-ASSY, SUCTION, B

main88707-30B50iAZSH32202311

88718LCLAMP, PIPING

main88718-2D150iAZSH32,KZSM30202311

88718MCLAMP, PIPING

main88718-50390iAZSH32; KZSM30202311

88718VCLAMP, NO.7(FOR COOLER REFRIGERANT PIPE)

main88718-30A30iAZSH32,KZSM30202311

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAZSH32,KZSM30202311

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14119iKZSM30202311

main90099-14122iAZSH32202311

88G16MTUBE, LIQUID, NO.1

main88716-30D20iAZSH32202311

main88716-62080iKZSM30202311

89639DCLAMP, AIRCONDITIONER TUBE

main89639-58020×2iAZSH32202311

9010506346

main90105-06346

9010506347

main90105-06347

9010506348

main90105-06348

9017806026

main90178-06026

9167180612

main91671-80612

28 parts on this diagram · 2 diagrams in section
