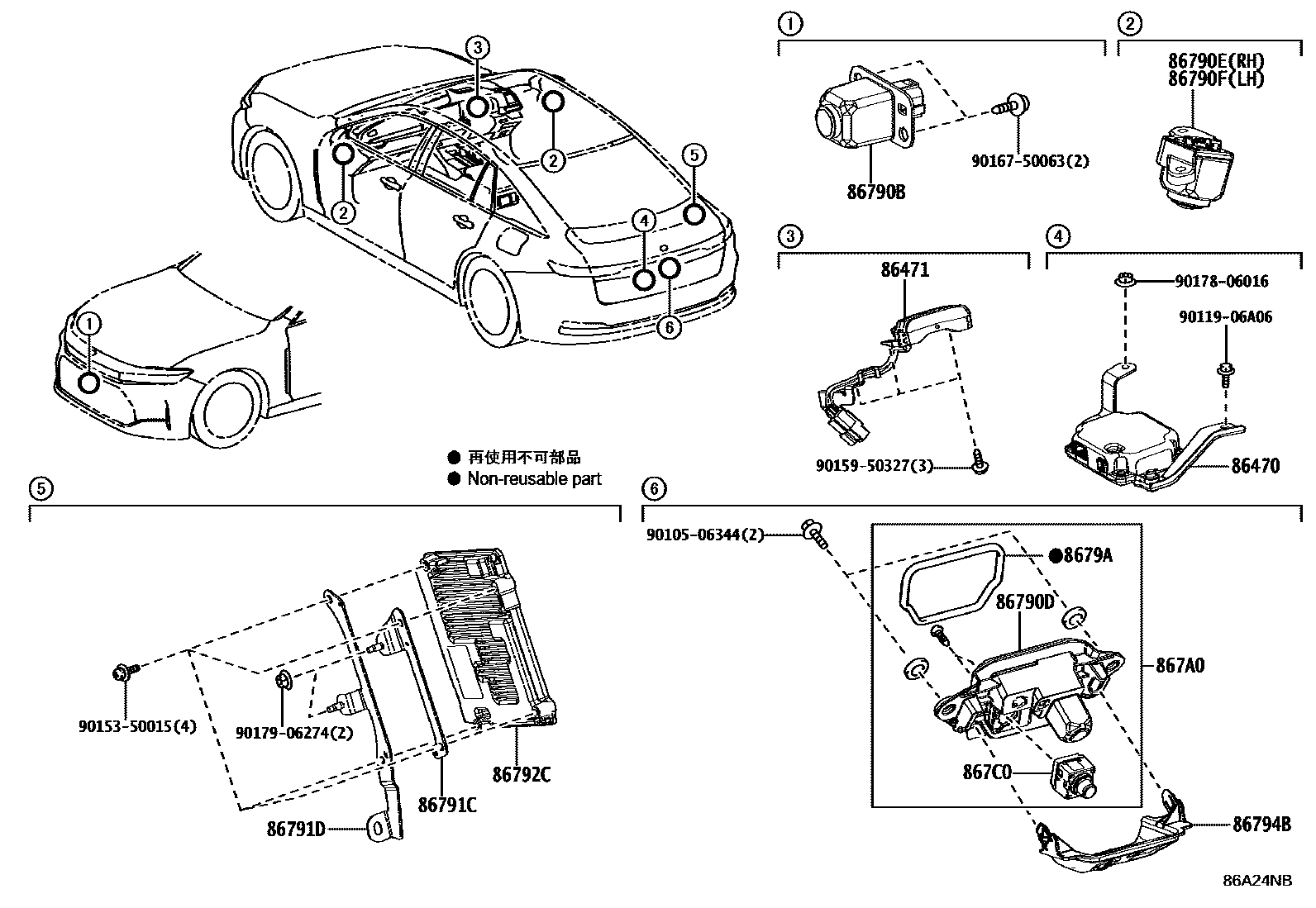

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30070iKZSM30202311

86471CAMERA, DRIVER MONITOR

main86471-30040iAZSH32,KZSM30..Z202311

86790BCAMERA ASSY, TELEVISION, FR

main86790-30510iAZSH32,KZSM30202311

86790DCAMERA ASSY, TELEVISION, RR

main86790-30570iAZSH32,KZSM30202311

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-30310iAZSH32,KZSM30202311

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-30320iAZSH32,KZSM30202311

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-30150iAZSH32,KZSM30202311

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-30160iAZSH32,KZSM30202311

86792CCOMPUTER, PARKING ASSIST

main86792-30570iAZSH32,KZSM30202311

86794BCOVER, TELEVISION CAMERA

main86794-30050iAZSH32,KZSM30202311

8679ASEAL, TELEVISION CAMERA

main8679A-30010iAZSH32,KZSM30202311

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-30100iAZSH32,KZSM30202311

867C0CAMERA ASSY, INNER MIRROR

main867C0-62030iAZSH32,KZSM30202311

9010506344

main90105-06344

9011906A06

main90119-06A06

9015350015

main90153-50015

9015950327

main90159-50327

9016750063

main90167-50063

9017806016

main90178-06016

9017906274

main90179-06274

20 parts on this diagram · 2 diagrams in section
