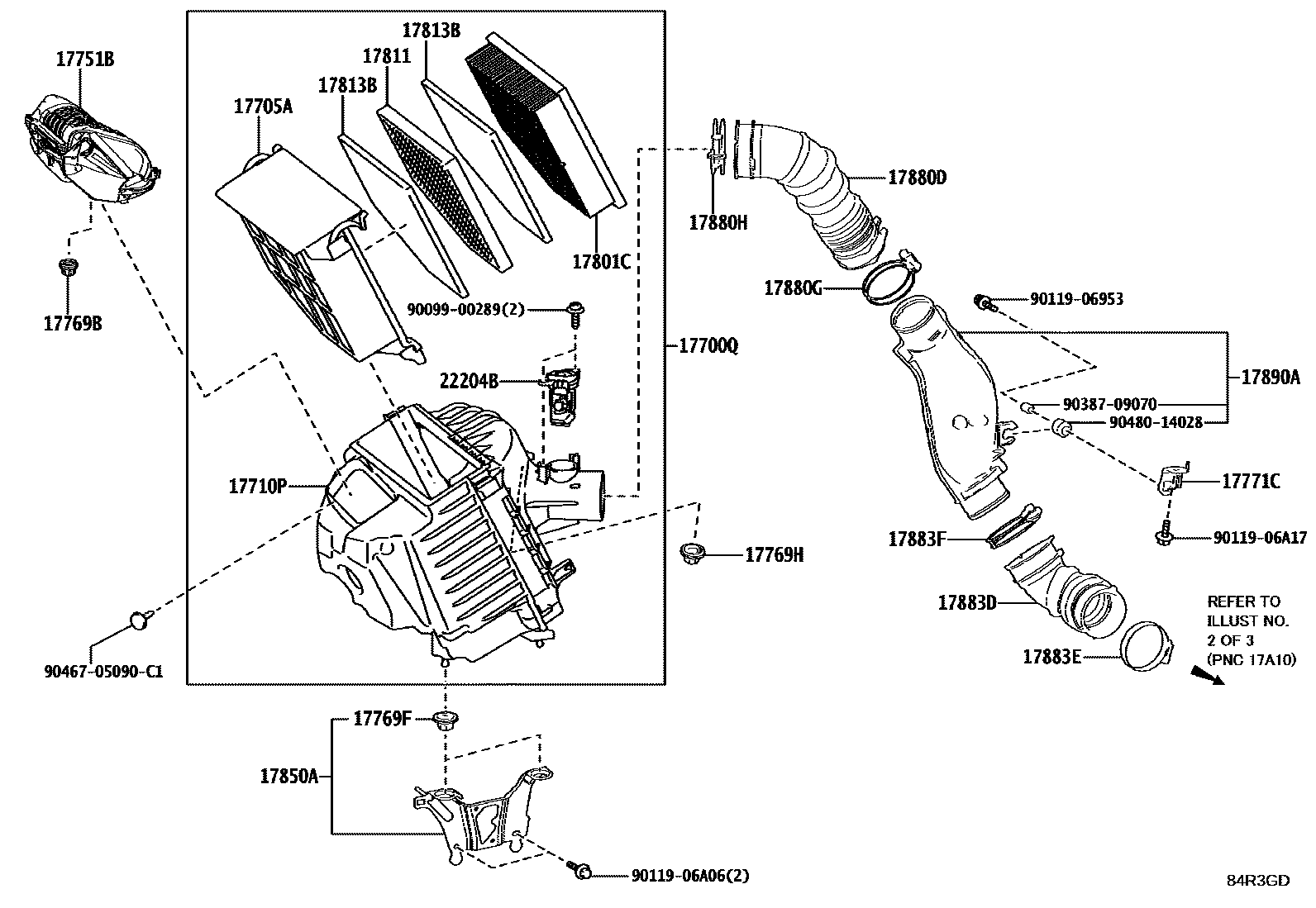

FCEV INTAKE & EXHAUST

0001 1 0002 1 0003 1

17700QCLEANER ASSY, AIR W/ELEMENT

main17700-77300iMOTOR..KZSM30202311

17705ACAP SUB-ASSY, AIR CLEANER

main17705-77090iMOTOR..KZSM30202311

17710PCLEANER ASSY, AIR W/O ELEMENT

main17710-77070iMOTOR..KZSM30202311

17751BINLET, AIR CLEANER

main17751-77050iMOTOR..KZSM30202311

17769BSUPPORT, AIR CLEANER

main17769-25040iMOTOR..KZSM30202311

17769FSUPPORT, AIR CLEANER, NO.2

main17769-25010×2iMOTOR..KZSM30202311

17769HSUPPORT, AIR CLEANER, NO.3

main17769-25010iMOTOR..KZSM30202311

17771CBRACKET, AIR CLEANER PIPE, NO.1 RH

main17771-77010iMOTOR..KZSM30202311

17801CELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77060iMOTOR..KZSM30202311

17811FILTER, AIR CLEANER

main17811-77020iMOTOR..KZSM30202311

17813BPREFILTER

main17813-77010×2iMOTOR..KZSM30202311

17850ABRACKET ASSY, AIR CLEANER SUPPORT

main17850-77010iMOTOR..KZSM30202311

17880DHOSE ASSY, AIR CLEANER

main17880-77030iMOTOR..KZSM30202311

17880GCLAMP, NO.1(FOR AIR CLEANER HOSE ASSY)

main96111-10670iMOTOR..KZSM30202311

17880HCLAMP, NO.2(FOR AIR CLEANER HOSE ASSY)

main96111-10690iMOTOR..KZSM30202311

17883DHOSE, AIR CLEANER, NO.3

main17883-77020iMOTOR..KZSM30202311

17883ECLAMP, NO.1(FOR AIR CLEANER HOSE)

main90460-70004iMOTOR..KZSM30202311

17883FCLAMP, NO.2(FOR AIR CLEANER HOSE)

main96111-10670iMOTOR..KZSM30202311

17890AHOSE ASSY, AIR CLEANER, NO.2

main17890-77010iMOTOR..KZSM30202311

22204BMETER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iMOTOR..KZSM30202311

9009900289

main90099-00289

9011906953

main90119-06953

9011906A06

main90119-06A06

9011906A17

main90119-06A17

9038709070

main90387-09070

9046705090C1

main90467-05090C1

9048014028

main90480-14028

27 parts on this diagram · 3 diagrams in section
