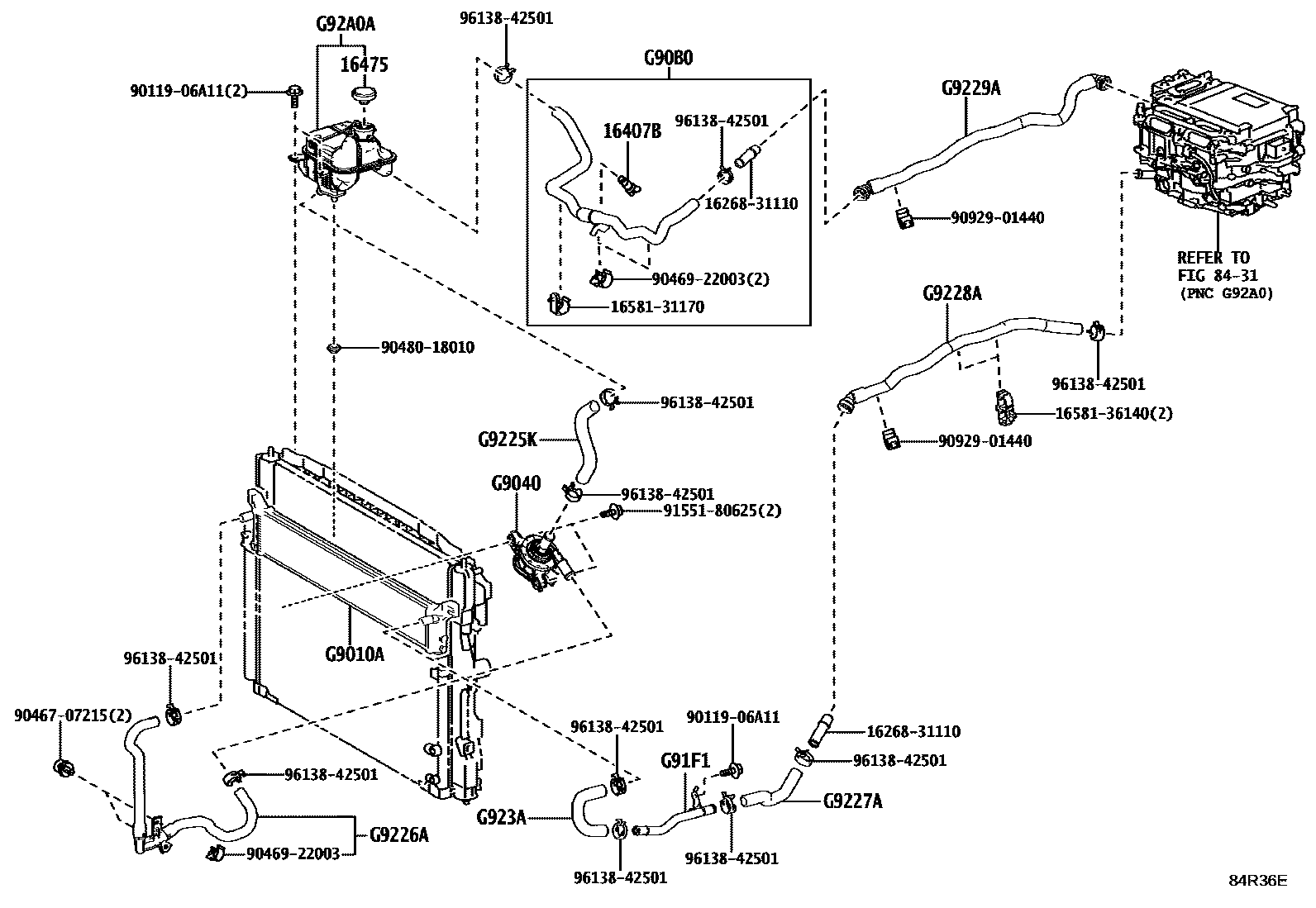

INVERTER COOLING

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25..AZSH32202311

16475CAP, RESERVE TANK

main16475-28140iA25..AZSH32202311

8431HEV INVERTER

→ Go to FIG 84-31

G9010ARADIATOR ASSY

mainG901030070iAZSH32202311

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048060iAZSH32202311

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B030100iAZSH32202311

G91F1PIPE, HV RADIATOR OUTLET

mainG91F130040iAZSH32202311

G9225KHOSE, INVERTER COOLING, NO.1

mainG922511010iAZSH32202311

G9226AHOSE, INVERTER COOLING, NO.2

mainG922650030iAZSH32202311

G9227AHOSE, INVERTER COOLING, NO.3

mainG922730090iAZSH32202311

G9228AHOSE, INVERTER COOLING, NO.4

mainG922811041iAZSH32202311

G9229AHOSE, INVERTER COOLING, NO.5

mainG922911041iAZSH32202311

G923AHOSE, INVERTER COOLING, NO.7

mainG923A30040iAZSH32202311

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H030020iAZSH32202311

1626831110PIPE, WATER BY-PASS, NO.1

main16268-31110

1658131170CLAMP, HOSE(FOR WATER HOSE)

main16581-31170

1658136140CLAMP, HOSE(FOR WATER HOSE)

main16581-36140

9011906A11

main90119-06A11

9046707215

main90467-07215

9046922003

main90469-22003

9048018010

main90480-18010

9092901440

main90929-01440

9155180625

main91551-80625

9613842501

main96138-42501

24 parts on this diagram · 1 diagram in section
