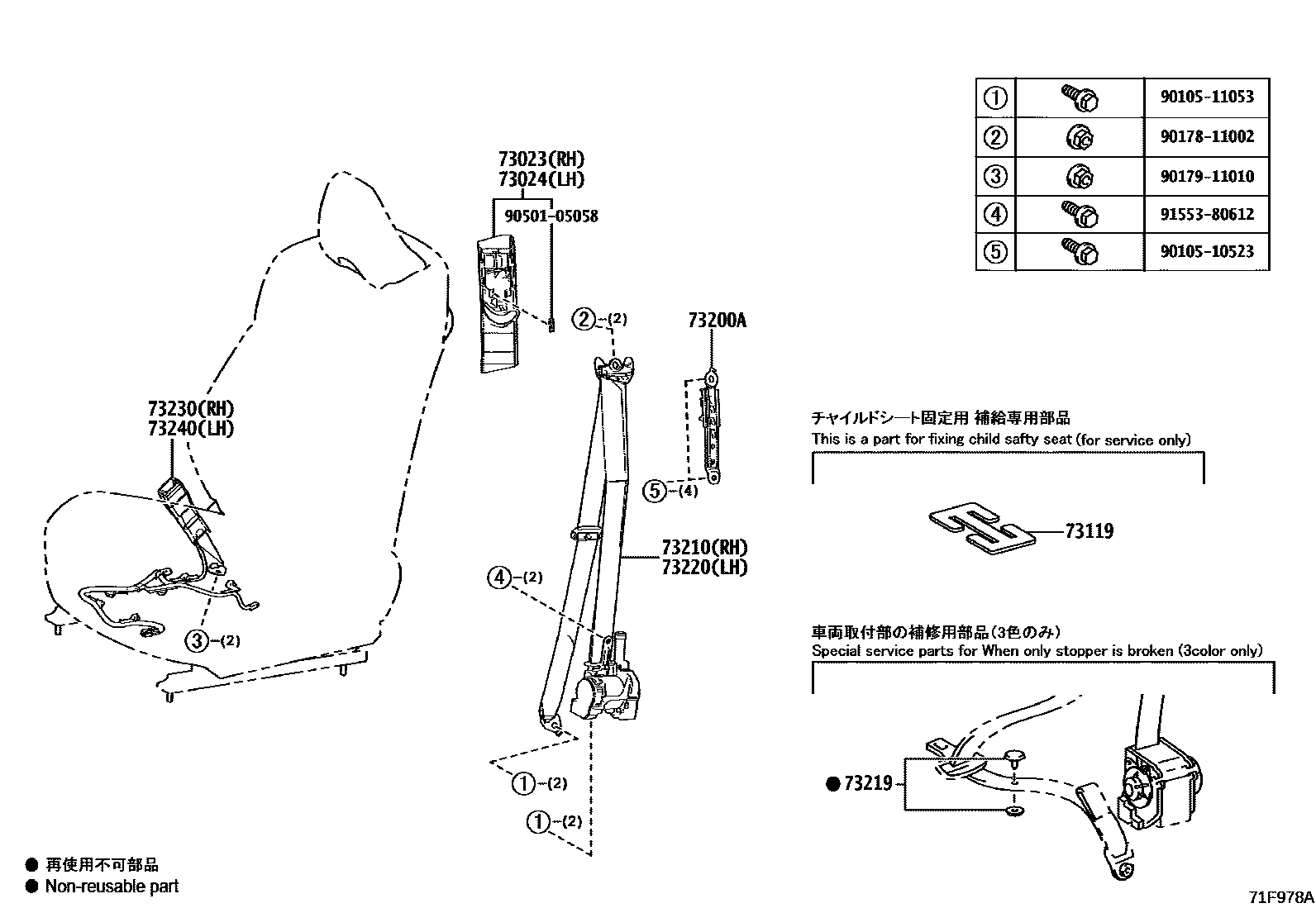

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iAZSH32,KZSM30..Z; AZSH32..G202311

BLACK,TRIM2#; BLACK,TRIM2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iAZSH32,KZSM30..Z; AZSH32..G202311

BLACK,TRIM2#; BLACK,TRIM2#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAZSH32,KZSM30202311

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020×2iAZSH32,KZSM30202311

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-50612-C1iAZSH32,KZSM30..Z; AZSH32..G202311

BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#

73219STOPPER, TONGUE PLATE

main73219-33010iAZSH32,KZSM30202311

main73219-33020iAZSH32,KZSM30202311

main73219-33030iAZSH32,KZSM30202311

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-50502-C1iAZSH32,KZSM30..Z; AZSH32..G202311

BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-62060-C0iAZSH32,KZSM30..Z; AZSH32..G202311

BLACK,TRIM2#; BLACK,TRIM2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-30540-C0iAZSH32,KZSM30..Z202311

BLACK,TRIM2#,4#

main73240-62040-C0iAZSH32..G202311

BLACK,TRIM2#

9010510523

main90105-10523

9010511053

main90105-11053

9017811002

main90178-11002

9017911010

main90179-11010

9050105058

main90501-05058

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
