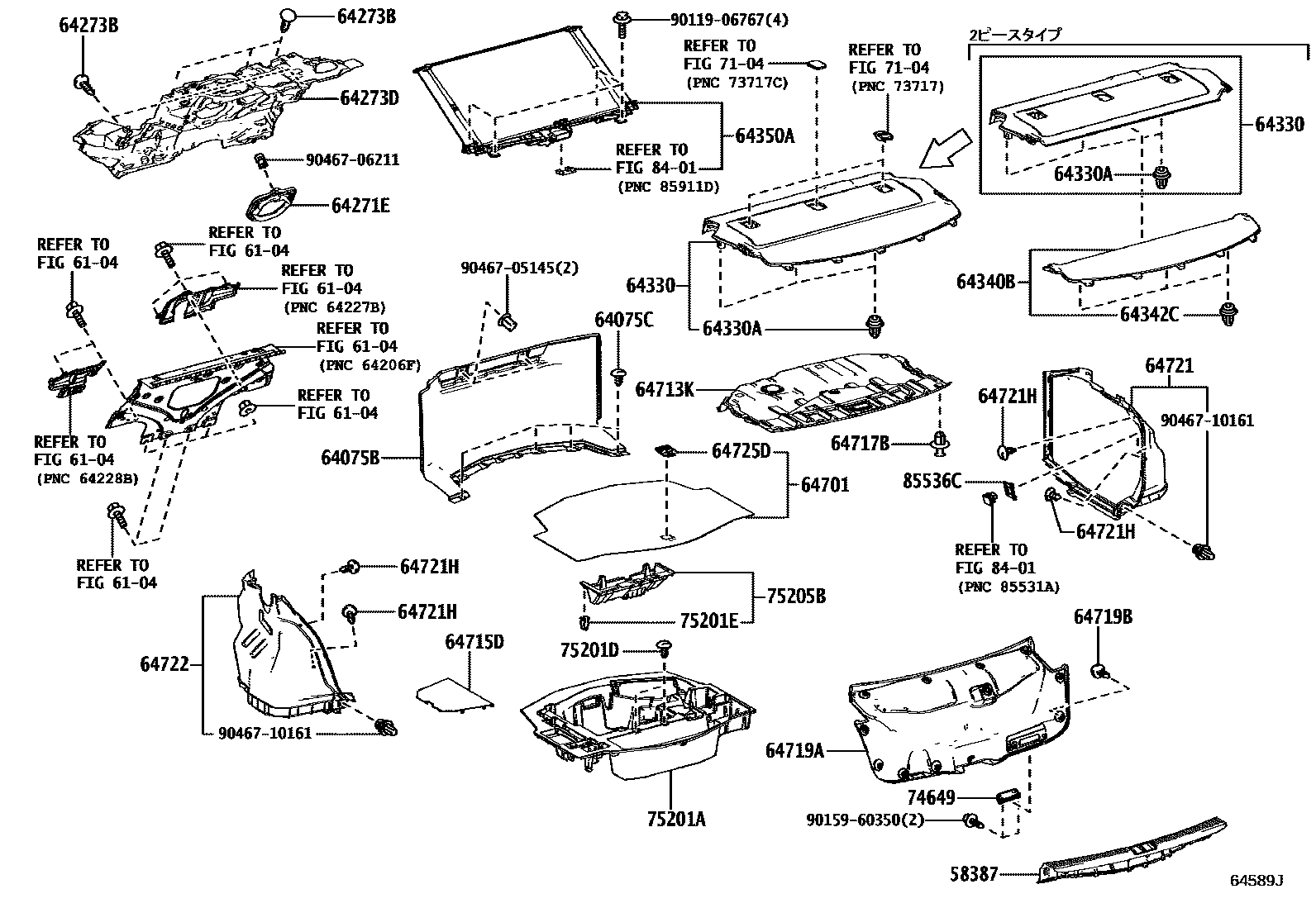

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#,4#
BLACK,TRIM2#
6104
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64271EPANEL, ROOM PARTITION
64273BCLIP
64273DPAD, ROOM PARTITION, NO.1
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
BLACK,TRIM2#,4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
BLACK,TRIM2#,4#
64342CCLIP(FOR COVER, PACKAGE TRAY TRIM, UNDER)
64350ASHADE ASSY, REAR WINDOW
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM2#,4#
BLACK,TRIM2#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#,4#
BLACK,TRIM2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64721HCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
7104
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
75201DCLIP, TOOL BOX SUB-ASSY, NO.1
SUPER WHITE 2
75205BBOX SUB-ASSY, TOOL, NO.2
8401
85536CBEZEL, POWER OUTLET SOCKET
BLACK,TRIM2#,4#
BLACK,TRIM2#
9011906767
main90119-06767
9015960350
main90159-60350
9046705145
main90467-05145
9046706211
main90467-06211
9046710161
main90467-10161
35 parts on this diagram · 2 diagrams in section
