INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5804
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62170CCLIP, CURTAIN SHIELD AIRBAG
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
62212GARNISH, FRONT PILLAR, LH
BLACK,TRIM2#
BLACK,TRIM2#,4#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62411HCLIP
62412BGARNISH, CENTER PILLAR, UPPER LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62430GARNISH ASSY, ROOF SIDE RAIL, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62430ACLIP, ROOF SIDE RAIL GARNISH
62440GARNISH ASSY, ROOF SIDE RAIL, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62471GCLIP, ROOF SIDE INNER GARNISH
62480AGARNISH ASSY, ROOF SIDE, INNER LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62487ACOVER, ROOF SIDE INNER GARNISH, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62488ACOVER, ROOF SIDE INNER GARNISH, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62489ACLIP, ROOF SIDE INNER GARNISH
62489BCLIP, ROOF SIDE INNER GARNISH
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
62566ECLAMP, REAR SEAT SIDE GARNISH
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
67912CPLATE, FRONT DOOR SCUFF OUTSIDE, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
67917FPLATE, REAR DOOR SCUFF, INSIDE RH
BLACK,TRIM2#,4#
BLACK,TRIM2#
67918CCLIP(FOR REAR SCUFF PLATE)
67918FPLATE, REAR DOOR SCUFF, INSIDE LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
67924ACLAMP, DOOR SCUFF PLATE, NO.2
7102
G92DHDFILTER, EV BATTERY INTAKE, NO.1
G92DJBFILTER, EV BATTERY INTAKE, NO.2
9015950327
main90159-50327
9356014012
main93560-14012

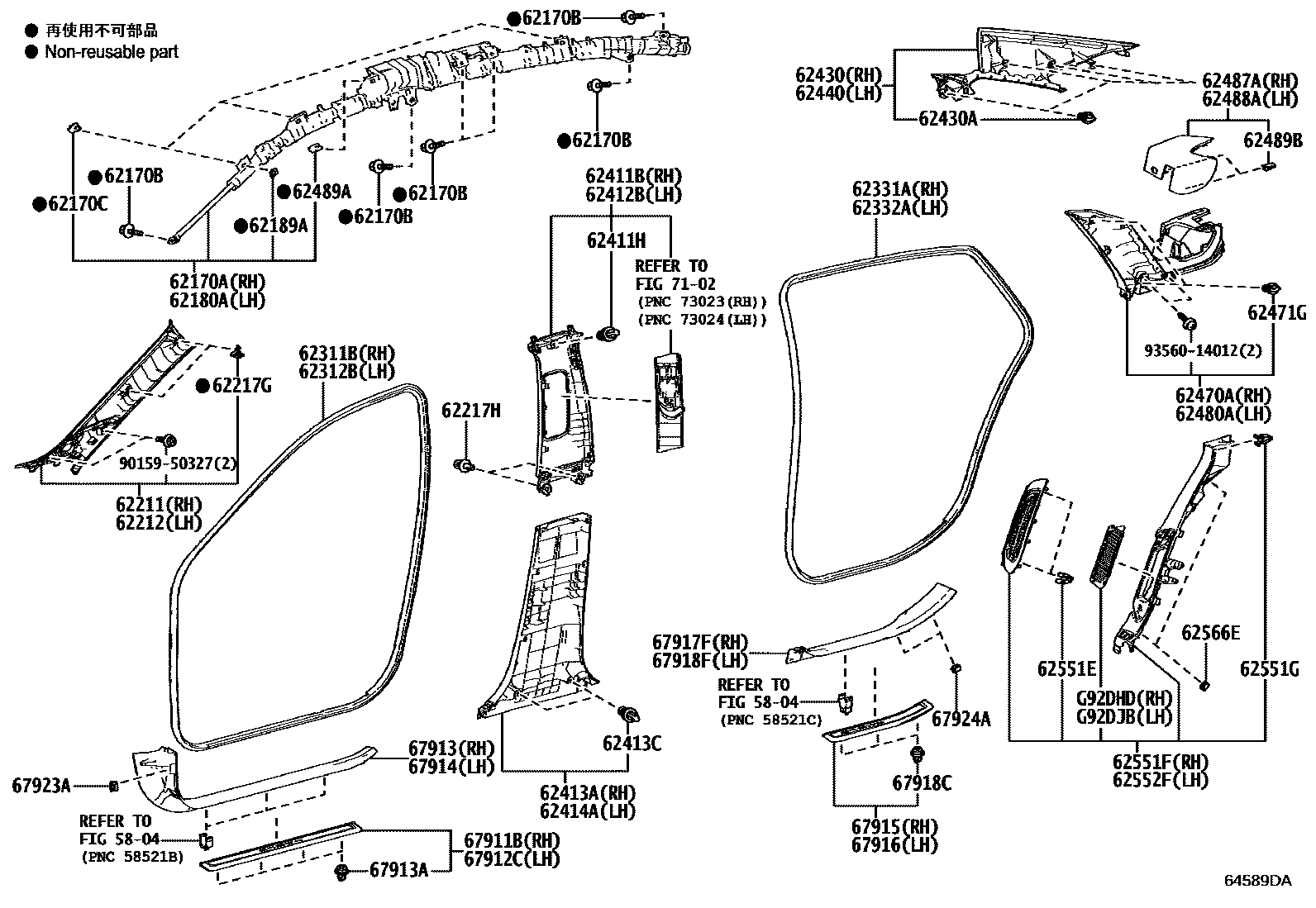

52 parts on this diagram · 1 diagram in section
