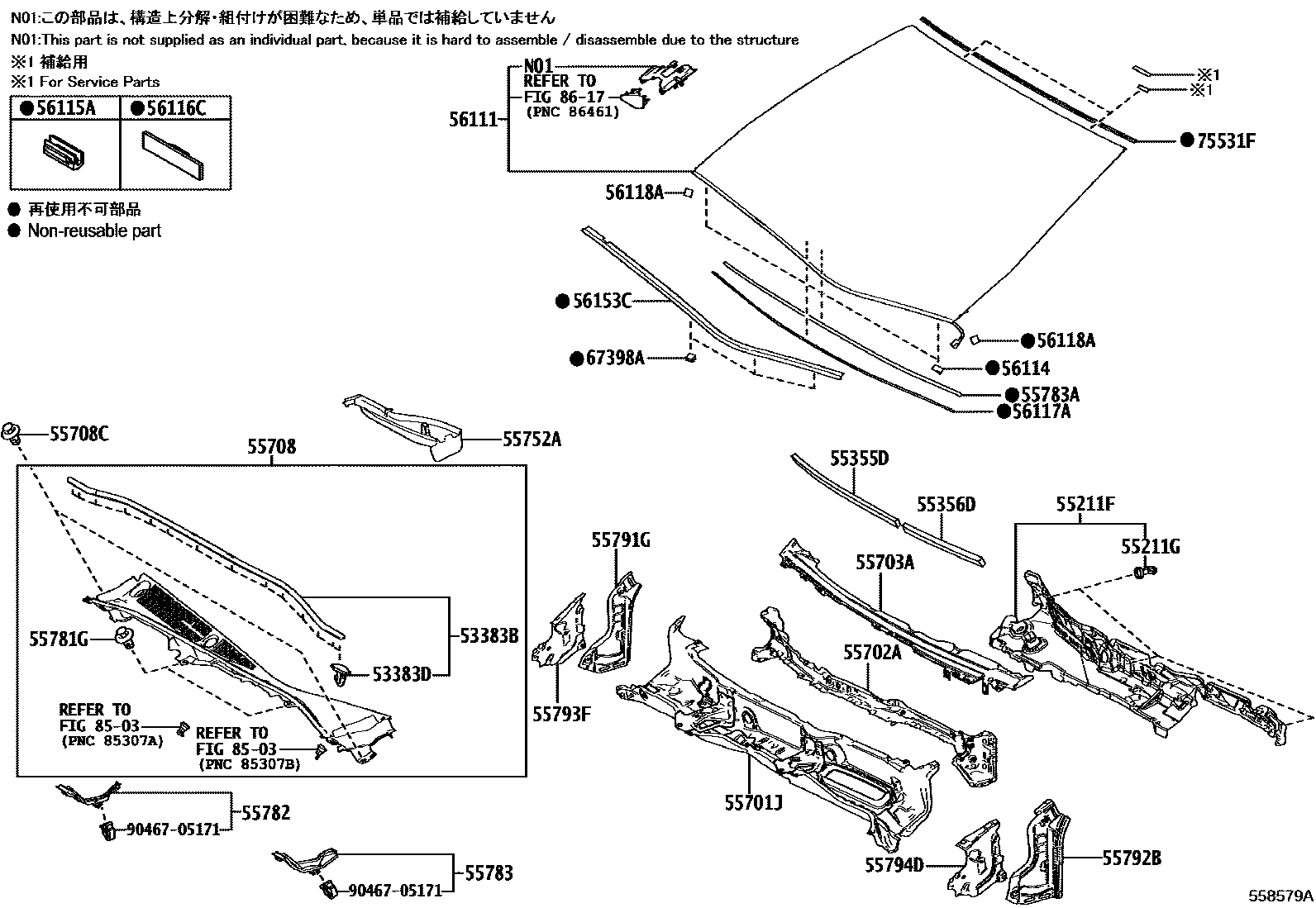

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-62020iAZSH32,KZSM30202311

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×14iAZSH32,KZSM30202311

55211FCOVER, DASH PANEL INSULATOR

main55211-62041iAZSH32,KZSM30202311

55211GCLIP, DASH PANEL INSULATOR COVER

main90467-11122×3iAZSH32,KZSM30202311

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-62030iAZSH32,KZSM30202311

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55357-62041iAZSH32,KZSM30202311

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-62040iAZSH32,KZSM30202311

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-62020iAZSH32,KZSM30202311

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-62041iAZSH32,KZSM30202311

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-62110iAZSH32,KZSM30202311

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iAZSH32,KZSM30202311

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-50020iAZSH32,KZSM30202311

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224×2iAZSH32,KZSM30202311

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55773-62010iAZSH32,KZSM30202311

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55783-62030iAZSH32,KZSM30202311

55783APAD, COWL TOP SILENCER

main55783-33130iAZSH32,KZSM30202311

55791GCOVER, COWL REINFORCEMENT, UPPER RH

main55791-62010iAZSH32,KZSM30202311

55792BCOVER, COWL REINFORCEMENT, UPPER LH

main55792-62010iAZSH32,KZSM30202311

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-62010iAZSH32,KZSM30202311

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-62010iAZSH32,KZSM30202311

56111GLASS, WINDSHIELD

main56101-62945iAZSH32,KZSM30202311

56114RETAINER, WINDSHIELD GLASS

main56114-30120×2iAZSH32,KZSM30202311

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAZSH32,KZSM30202311

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAZSH32,KZSM30202311

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAZSH32,KZSM30202311

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-30140×2iAZSH32,KZSM30202311

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-62010iAZSH32,KZSM30202311

67398AGUIDE(FOR WINDOW DEFOGGER WIRE)

main67398-60010×3iAZSH32,KZSM30202311

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-62010iAZSH32,KZSM30202311

8503WINDSHIELD WASHER

→ Go to FIG 85-03

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9046705171

main90467-05171

32 parts on this diagram · 1 diagram in section
