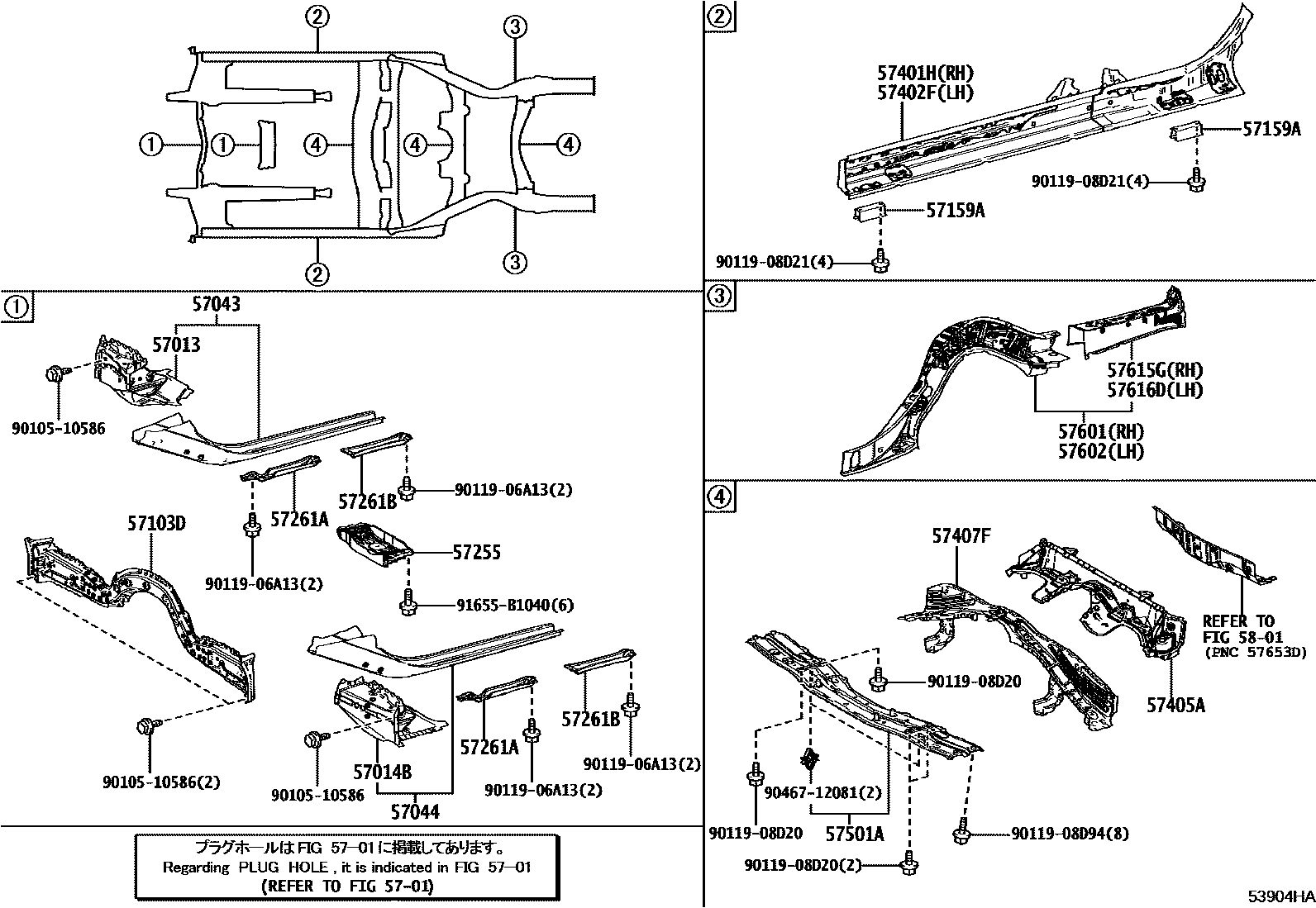

FLOOR SIDE MEMBER

0001 1 0002 1

5701HOLE PLUG

→ Go to FIG 57-01

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-11010iAZSH32202311

main57013-50020iKZSM30202311

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-11010iAZSH32202311

main57014-50020iKZSM30202311

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-11010iAZSH32202311

main57043-50090iKZSM30202311

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-11010iAZSH32202311

main57044-50090iKZSM30202311

57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL

main57103-11010iAZSH32,KZSM30202311

57159AREINFORCEMENT, ENGINE UNDER COVER MOUNTING

main57159-11011×4iAZSH32,KZSM30202311

57255MEMBER, ENGINE REAR MOUNTING

main57255-11010iAZSH32202311

57261APLATE, ENGINE REAR MOUNTING MEMBER

main57261-50020×2iAZSH32202311

57261BPLATE, ENGINE REAR MOUNTING MEMBER

main57261-11020×2iAZSH32202311

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-30220iAZSH32,KZSM30202311

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-30210iAZSH32,KZSM30202311

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-11011iAZSH32202311

main57405-62020iKZSM30202311

57407FMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-30170iAZSH32202311

main57407-62010iKZSM30202311

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-30020iAZSH32202311

main57501-62010iKZSM30202311

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30280iAZSH32,KZSM30202311

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30340iAZSH32,KZSM30202311

57615GMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57615-30907iAZSH32,KZSM30202311

57616DMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57616-30908iAZSH32,KZSM30202311

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010510586

main90105-10586

9011906A13

main90119-06A13

9011908D20

main90119-08D20

9011908D21

main90119-08D21

9011908D94

main90119-08D94

9046712081

main90467-12081

91655B1040

main91655-B1040

27 parts on this diagram · 2 diagrams in section
