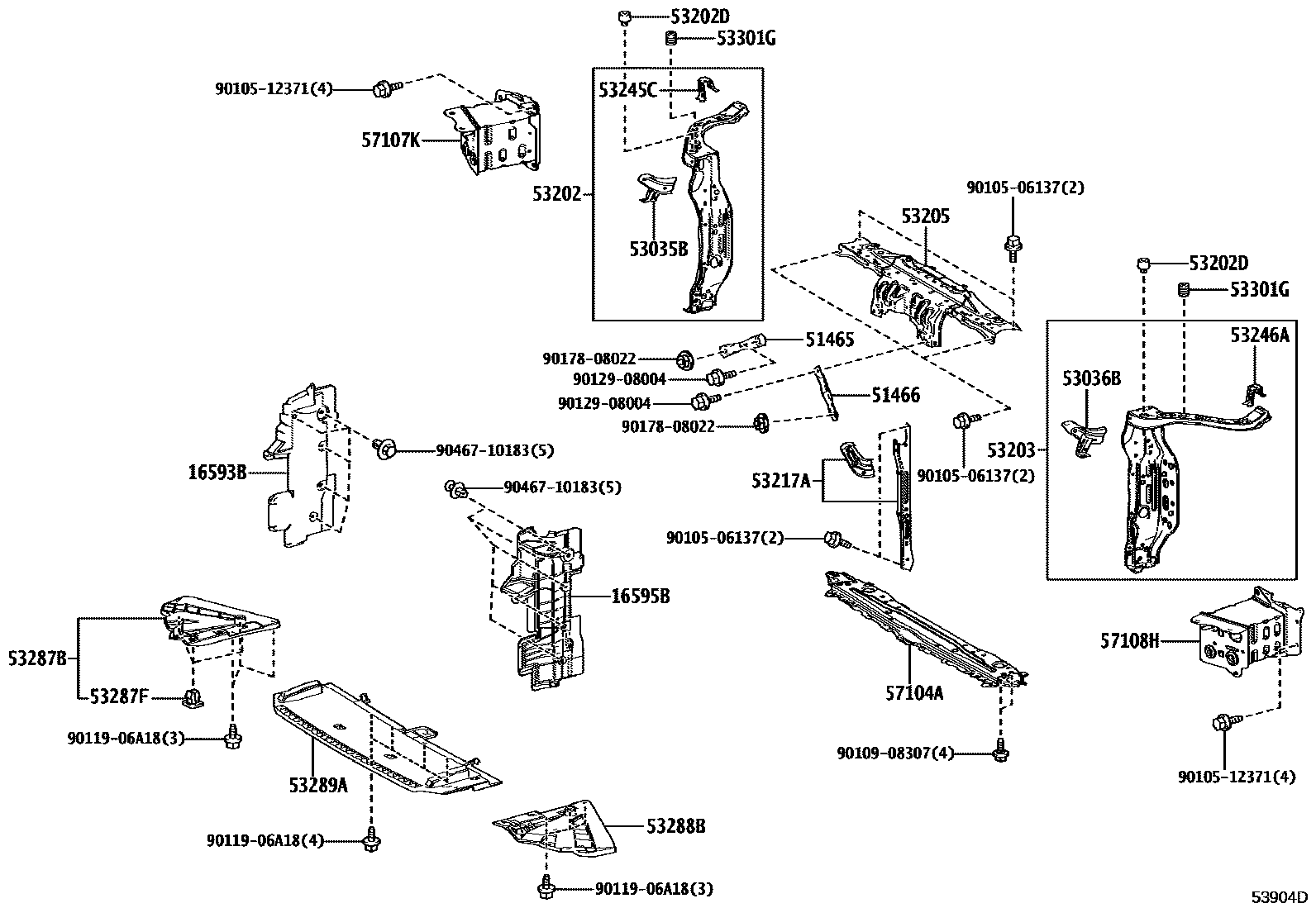

FRONT FENDER APRON & DASH PANEL

0001 1�������&����������� 0002 1���������� 0003 1���������� 0004 1���������

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25420iA25,MOTOR..AZSH32,KZSM30202311

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25400iA25,MOTOR..AZSH32,KZSM30202311

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51503-30040iAZSH32,KZSM30202311

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51503-30040iAZSH32,KZSM30202311

53035BBRACKET SUB-ASSY, HEADLAMP MOUNTING, RH

main53035-30080iAZSH32,KZSM30202311

53036BBRACKET SUB-ASSY, HEADLAMP MOUNTING, LH

main53036-30080iAZSH32,KZSM30202311

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-30910iAZSH32,KZSM30202311

53202DCUSHION, RADIATOR SUPPORT

main90541-09125iAZSH32,KZSM30202311

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-30910iAZSH32,KZSM30202311

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-62020iAZSH32,KZSM30202311

53217ABRACE, HOOD LOCK SUPPORT

main53217-30909iAZSH32,KZSM30202311

53245CBRACKET, HEADLAMP MOUNTING, UPPER RH

main53245-30050iAZSH32,KZSM30202311

53246ABRACKET, HEADLAMP MOUNTING, UPPER LH

main53246-30040iAZSH32,KZSM30202311

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-62010iAZSH32,KZSM30202311

53287FGROMMET, NO.1

main90189-06237iAZSH32,KZSM30202311

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-62010iAZSH32,KZSM30202311

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-30270iAZSH32,KZSM30202311

53301GCUSHION, HOOD BUMPER

main90541-15034iAZSH32,KZSM30202311

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-11010iAZSH32,KZSM30202311

57107KREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-30160iAZSH32202311

main57107-62020iKZSM30202311

57108HREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-62020iAZSH32,KZSM30202311

9010506137

main90105-06137

9010512371

main90105-12371

9010908307

main90109-08307

9011906A18

main90119-06A18

9012908004

main90129-08004

9017808022

main90178-08022

9046710183

main90467-10183

28 parts on this diagram · 4 diagrams in section
