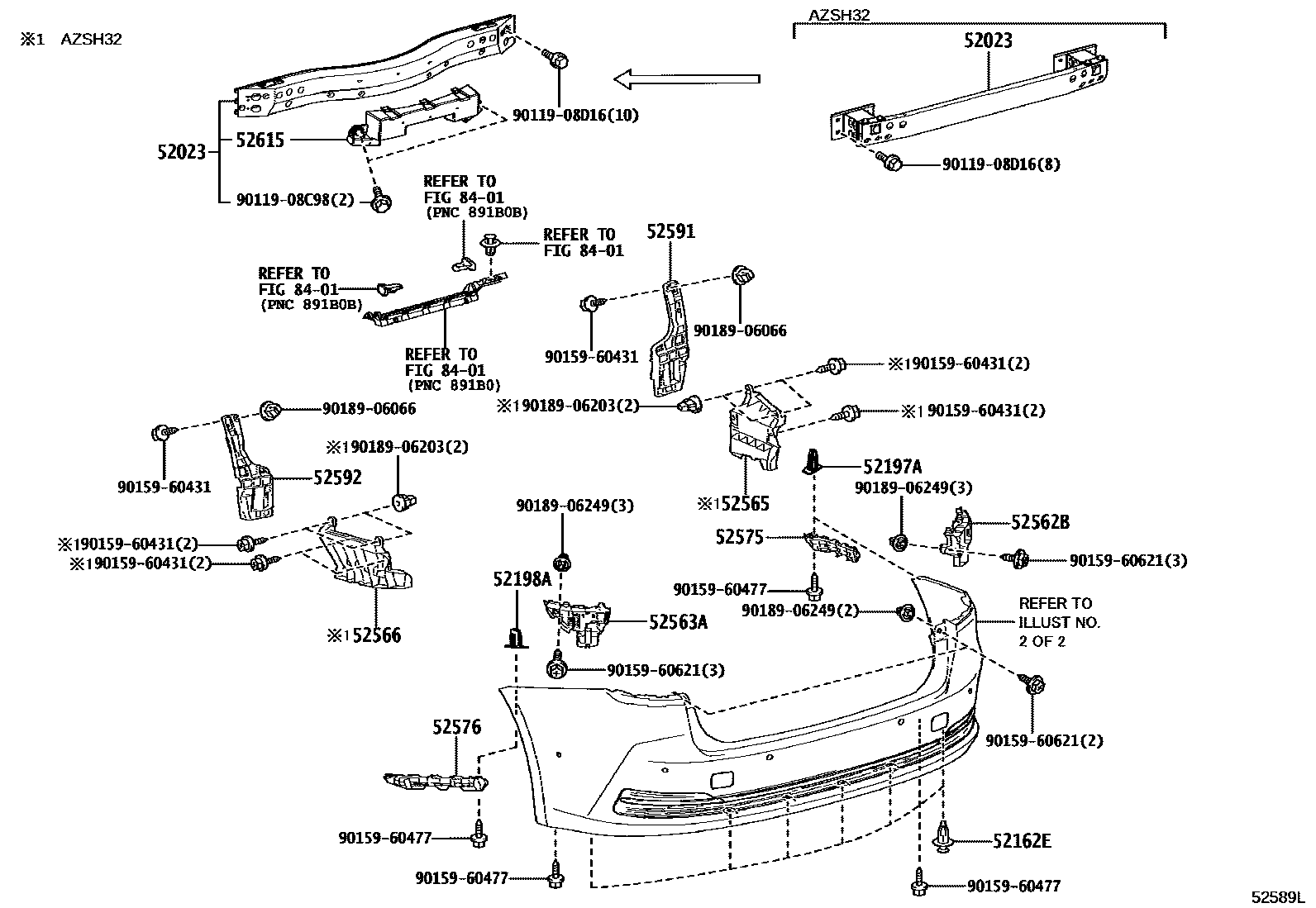

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-30450iKZSM30202311

main52023-62040iAZSH32202311

52162EPIECE, REAR BUMPER

main52161-16010×6iAZSH32,KZSM30202311

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iAZSH32,KZSM30202311

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iAZSH32,KZSM30202311

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-30200iAZSH32,KZSM30202311

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-30170iAZSH32,KZSM30202311

52565FILLER, REAR BUMPER EXTENSION, RH

main52565-30090iAZSH32202311

52566FILLER, REAR BUMPER EXTENSION, LH

main52566-30060iAZSH32202311

52575RETAINER, REAR BUMPER SIDE, RH

main52575-30240iAZSH32,KZSM30202311

52576RETAINER, REAR BUMPER SIDE, LH

main52576-30200iAZSH32,KZSM30202311

52591SEAL, REAR BUMPER SIDE, RH

main52591-30080iAZSH32,KZSM30202311

52592SEAL, REAR BUMPER SIDE, LH

main52592-30060iAZSH32,KZSM30202311

52615ABSORBER, REAR BUMPER ENERGY

main52615-30350iKZSM30202311

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C98

main90119-08C98

9011908D16

main90119-08D16

9015960431

main90159-60431

9015960477

main90159-60477

9015960621

main90159-60621

9018906066

main90189-06066

9018906203

main90189-06203

9018906249

main90189-06249

22 parts on this diagram · 2 diagrams in section
