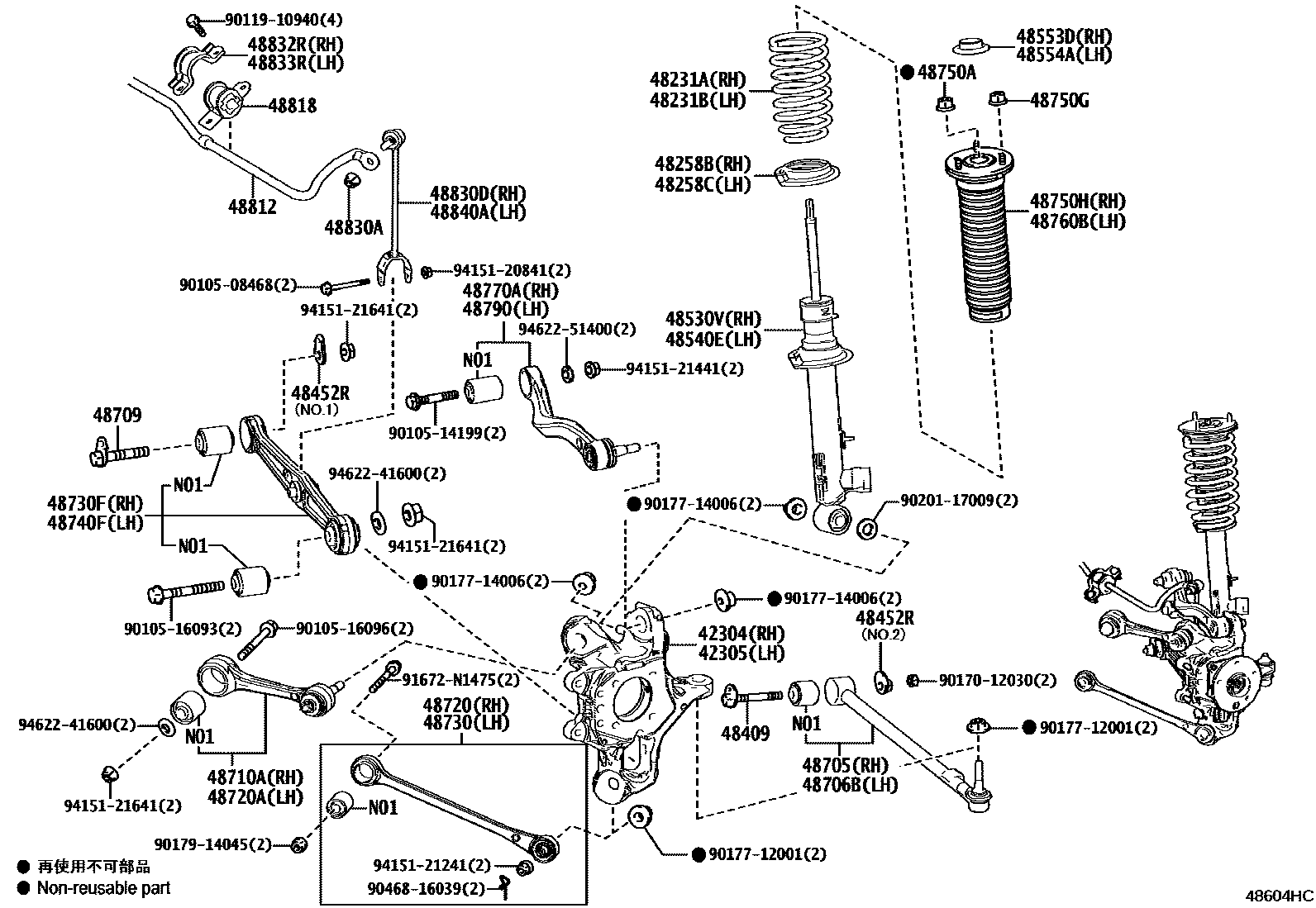

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-11010iAZSH32,KZSM30202311

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-11010iAZSH32,KZSM30202311

48231ASPRING, COIL, REAR RH

main48231-30J30iAZSH32202311

main48231-30J40iKZSM30202311

48231BSPRING, COIL, REAR LH

main48231-30J30iAZSH32202311

main48231-30J40iKZSM30202311

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48158-30020iAZSH32,KZSM30202311

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48158-30020iAZSH32,KZSM30202311

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-11040iAZSH32,KZSM30202311

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-11010iAZSH32,KZSM30202311

main48452-50040iAZSH32,KZSM30202311

48530VABSORBER SET, SHOCK, REAR RH

main48530-80B73iKZSM30202311

main48530-80B75iAZSH32202311

48540EABSORBER SET, SHOCK, REAR LH

main48540-80602iKZSM30202311

main48540-80604iAZSH32202311

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-62010iAZSH32,KZSM30202311

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-62010iAZSH32,KZSM30202311

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-11010iAZSH32,KZSM30202311

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-11010iAZSH32,KZSM30202311

48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM

main48709-11020iAZSH32,KZSM30202311

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-50120iAZSH32,KZSM30202311

48720ARM ASSY, LOWER CONTROL, RH

main48720-50040iAZSH32,KZSM30202311

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-50120iAZSH32,KZSM30202311

48730ARM ASSY, LOWER CONTROL, LH

main48720-50040iAZSH32,KZSM30202311

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-11010iAZSH32,KZSM30202311

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-11010iAZSH32,KZSM30202311

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90177-12002iAZSH32,KZSM30202311

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90178-10039iAZSH32,KZSM30202311

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-30210iAZSH32,KZSM30202311

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-30210iAZSH32,KZSM30202311

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-11010iAZSH32,KZSM30202311

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-11020iAZSH32,KZSM30202311

48812BAR, STABILIZER, REAR

main48812-30660iKZSM30202311

main48812-30670iAZSH32202311

48818BUSH, STABILIZER, REAR

main48818-50060iAZSH32202311

main48818-50100iKZSM30202311

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151iAZSH32,KZSM30202311

48830DLINK ASSY, REAR STABILIZER, RH

main48830-11010iAZSH32,KZSM30202311

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-50020iAZSH32,KZSM30202311

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-50020iAZSH32,KZSM30202311

48840ALINK ASSY, REAR STABILIZER, LH

main48840-11010iAZSH32,KZSM30202311

9010508468

main90105-08468

9010514199

main90105-14199

9010516093

main90105-16093

9010516096

main90105-16096

9011910940

main90119-10940

9017012030

main90170-12030

9017712001

main90177-12001

9017714006

main90177-14006

9017914045

main90179-14045

9020117009

main90201-17009

9046816039

main90468-16039

91672N1475

main91672-N1475

9415120841

main94151-20841

9415121241

main94151-21241

9415121441

main94151-21441

9415121641

main94151-21641

9462241600

main94622-41600

9462251400

main94622-51400

52 parts on this diagram · 2 diagrams in section
