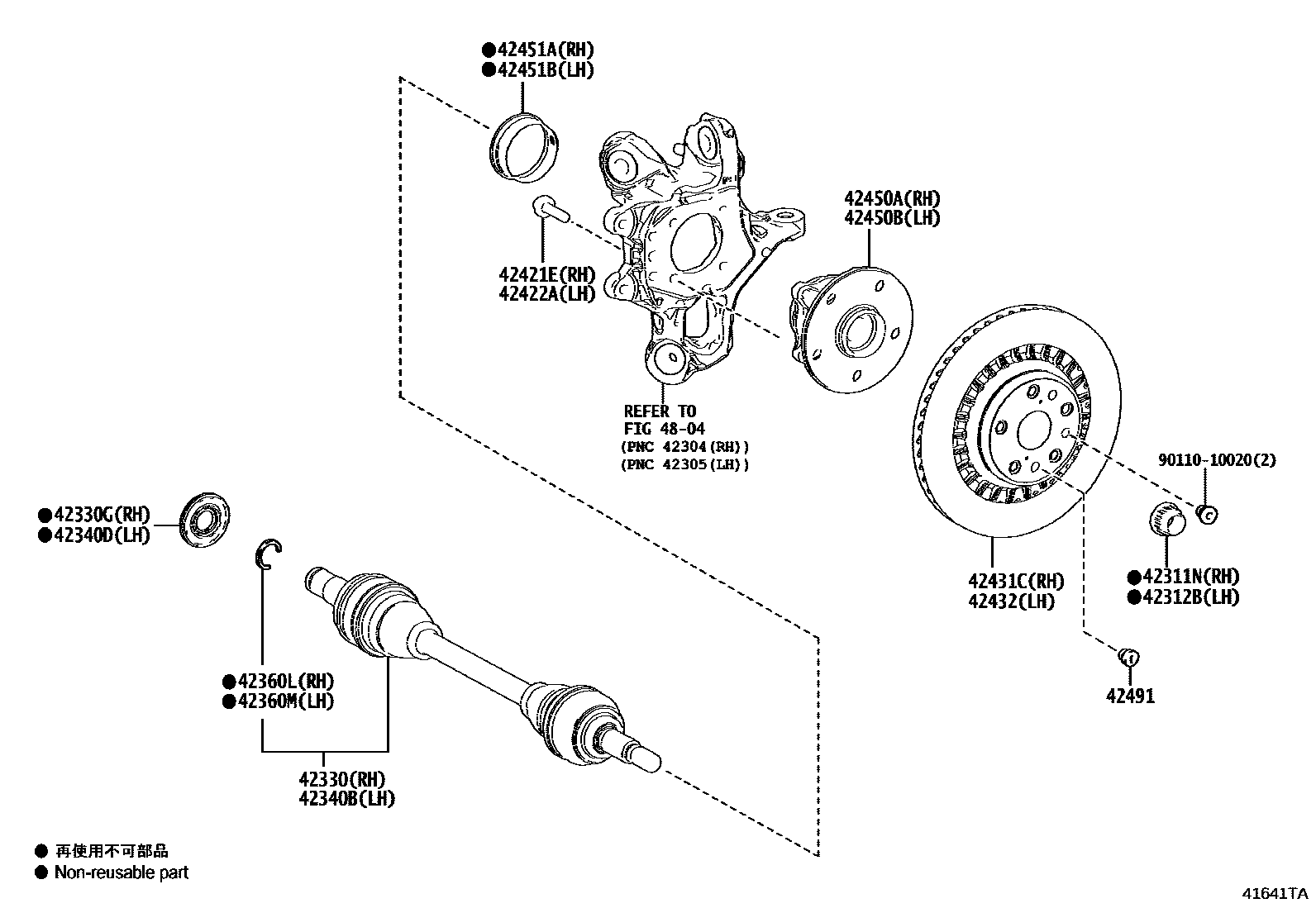

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iAZSH32,KZSM30202311

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iAZSH32,KZSM30202311

42330SHAFT ASSY, REAR DRIVE, RH

main42330-11010iAZSH32202311

main42330-62010iKZSM30202311

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-40049iKZSM30202311

main90311-47031iAZSH32202311

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-11010iAZSH32202311

main42340-62010iKZSM30202311

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47032iAZSH32202311

main90311-50059iKZSM30202311

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main43425-42060iKZSM30202311

main90521-37010iAZSH32202311

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main43425-42060iKZSM30202311

main90521-37010iAZSH32202311

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12364iAZSH32,KZSM30202311

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12364iAZSH32,KZSM30202311

42431CDISC, REAR RH

main42431-50120iAZSH32,KZSM30202311

42432DISC, REAR LH

main42432-50030iAZSH32,KZSM30202311

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-11030iAZSH32,KZSM30202311

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-11030iAZSH32,KZSM30202311

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-50030iAZSH32,KZSM30202311

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-50030iAZSH32,KZSM30202311

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iAZSH32,KZSM30202311

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

9011010020

main90110-10020

19 parts on this diagram · 1 diagram in section
