Toyota CROWN SEDAN 33B — VACUUM PIPING

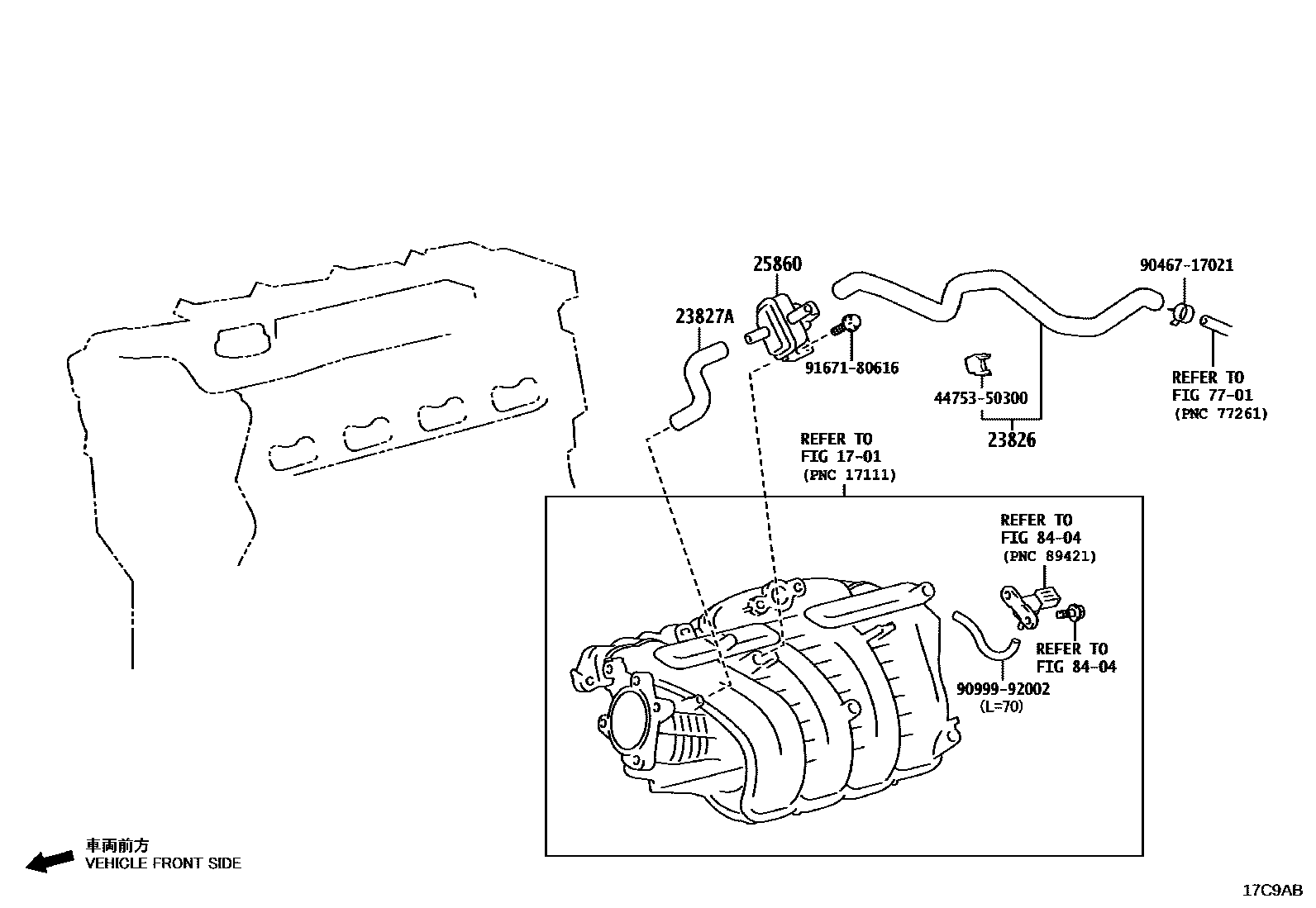

Parts diagram
1701MANIFOLD
→ Go to FIG 17-01
23826HOSE, FUEL VAPOR FEED, NO.1
23826-25490
23827AHOSE, FUEL VAPOR FEED, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25860-25050
7701FUEL TANK & TUBE
→ Go to FIG 77-01
8404ELECTRONIC FUEL INJECTION SYSTEM
→ Go to FIG 84-04
4475350300CLAMP, VACUUM RESERVOIR, NO.2
44753-50300
9046717021
90467-17021
9099992002
90999-92002
9167180616
91671-80616

10 parts on this diagram · 1 diagram in section

VACUUM PIPING for Toyota CROWN SEDAN 33B

This section contains 10 genuine Toyota parts for the VACUUM PIPING system of the Toyota CROWN SEDAN 33B. Key components include: MANIFOLD, HOSE, FUEL VAPOR FEED, NO.1, HOSE, FUEL VAPOR FEED, NO.2, VALVE ASSY, VACUUM SWITCHING, NO.1, FUEL TANK & TUBE.
