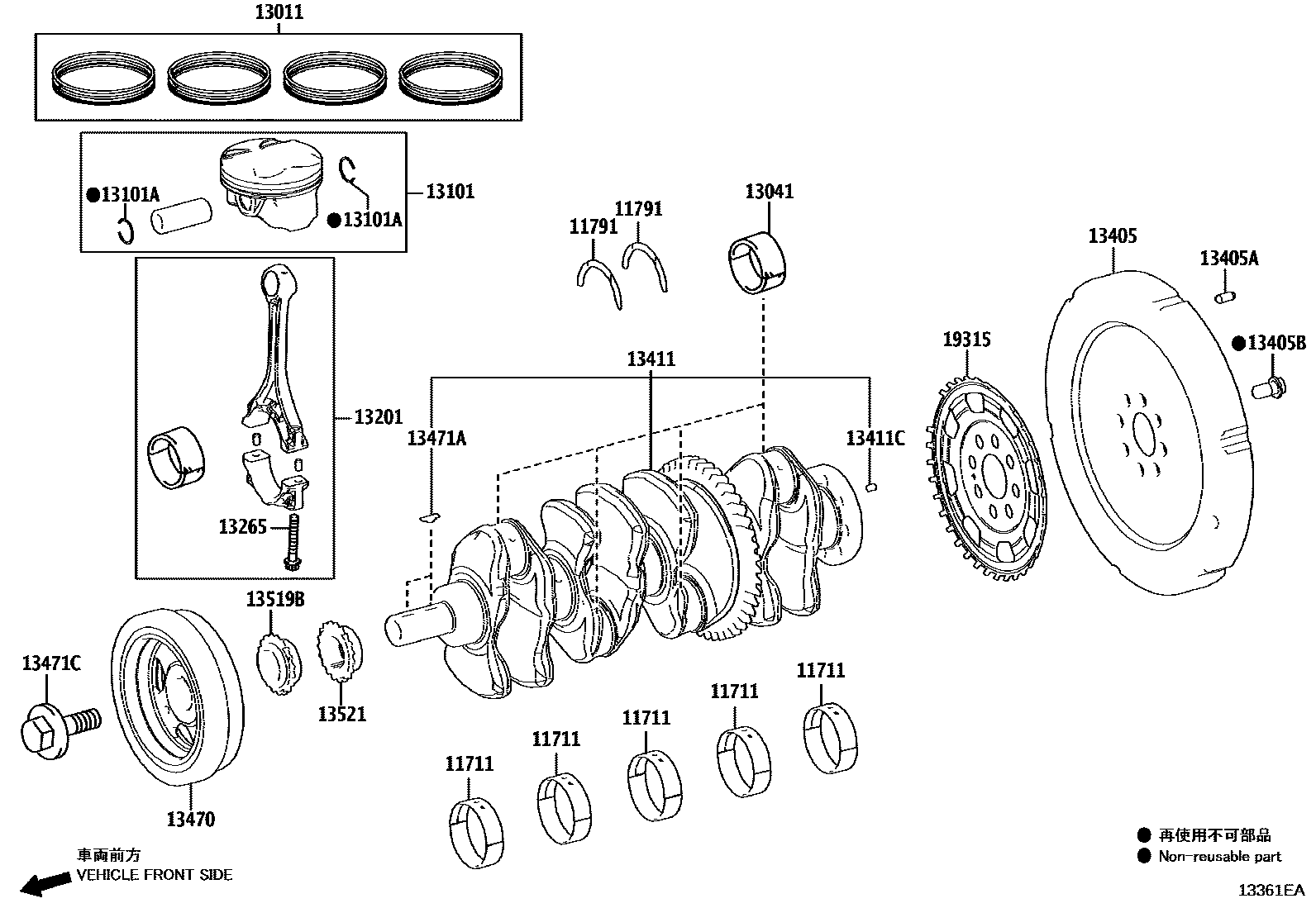

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-25010-01×5iA25..AZSH32202311

main11701-25010-02×5iA25..AZSH32202311

main11701-25010-03×5iA25..AZSH32202311

main11701-25010-04×5iA25..AZSH32202311

main11701-25010-05×5iA25..AZSH32202311

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25040×2iA25..AZSH32202311

13011RING SET, PISTON

main13011-25080iA25..AZSH32202311

13041BEARING, CONNECTING ROD

main13041-25020-01×4iA25..AZSH32202311

main13041-25020-02×4iA25..AZSH32202311

main13041-25020-03×4iA25..AZSH32202311

13101PISTON SUB-ASSY, W/PIN

main13101-25040×4iA25..AZSH32202311

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8iA25..AZSH32202311

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4iA25..AZSH32202311

main13201-29815-B0×4iA25..AZSH32202311

main13201-29815-C0×4iA25..AZSH32202311

13265BOLT, CONNECTING ROD

main13265-25020×8iA25..AZSH32202311

13405FLYWHEEL SUB-ASSY

main13451-25030iA25..AZSH32202311

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3iA25..AZSH32202311

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8iA25..AZSH32202311

13411CRANKSHAFT

main13401-25020iA25..AZSH32202311

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iA25..AZSH32202311

13470PULLEY ASSY, CRANKSHAFT

main13470-25080iA25..AZSH32202311

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2iA25..AZSH32202311

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iA25..AZSH32202311

13519BSPROCKET, OIL PUMP DRIVE

main13519-25020iA25..AZSH32202311

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010iA25..AZSH32202311

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25011iA25..AZSH32202311

19 parts on this diagram · 1 diagram in section
