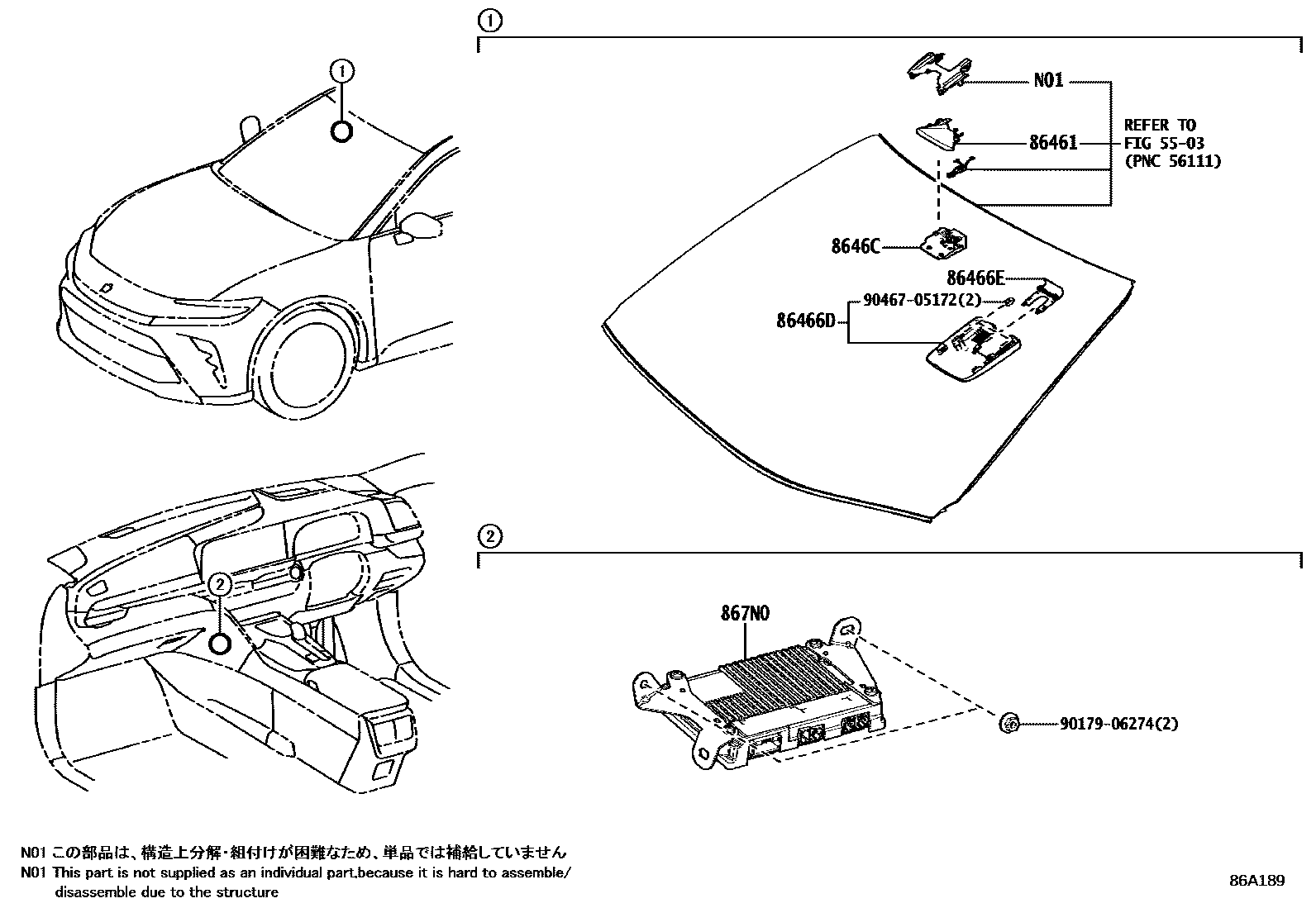

PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86461HOOD, FORWARD RECOGNITION

main86461-30010iAZSH3#202308

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-30010iAZSH3#202308

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-30030supersedes 86467-30020iAZSH36..G202308

8646CCAMERA, FORWARD RECOGNITION

main8646C-30240supersedes 8646C-30230iAZSH36..G; AZSH36..Z202308-202309

main8646C-30360supersedes 8646C-30350iAZSH3#..G; AZSH3#..RS,Z202310-202507

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-30070iAZSH3#..RS,Z; AZSH37..G202308-202507

main867N0-30080supersedes 867N0-30070iAZSH3#..RS,Z; AZSH37..G202308-202507

9017906274

main90179-06274

9046705172

main90467-05172

8 parts on this diagram · 1 diagram in section
