CAMERA & REAR MONITOR DISPLAY

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30120

86471CAMERA, DRIVER MONITOR

main86471-30040

86790CAMERA ASSY, TELEVISION

main86790-30360supersedes 86790-30380iAZSH3#..RS,Z202308

86790BCAMERA ASSY, TELEVISION, FR

main86790-30490iAZSH3#..RS,Z202308

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-30310iAZSH3#..RS,Z202308

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-30320iAZSH3#202308

86791BRACKET, TELEVISION CAMERA

main86791-30070iAZSH3#..RS,Z202308

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-30030iAZSH3#202308

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-30040iAZSH3#202308

86792CCOMPUTER, PARKING ASSIST

main86792-30560supersedes 86792-30540iAZSH3#..RS,Z202308

86799WIRE, TELEVISION CAMERA

main86799-30110iAZSH3#202308

86799DWIRE, TELEVISION CAMERA, FRONT

main86799-30170iAZSH3#..RS,Z202308

867C0CAMERA ASSY, INNER MIRROR

main867C0-30050iAZSH3#..RS,Z202308

867F0NOZZLE ASSY, CAMERA CLEANER

main867F0-30030iAZSH3#..RS,Z202308

9015350015

main90153-50015

9015950311

main90159-50311

9015950327

main90159-50327

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018906244

main90189-06244

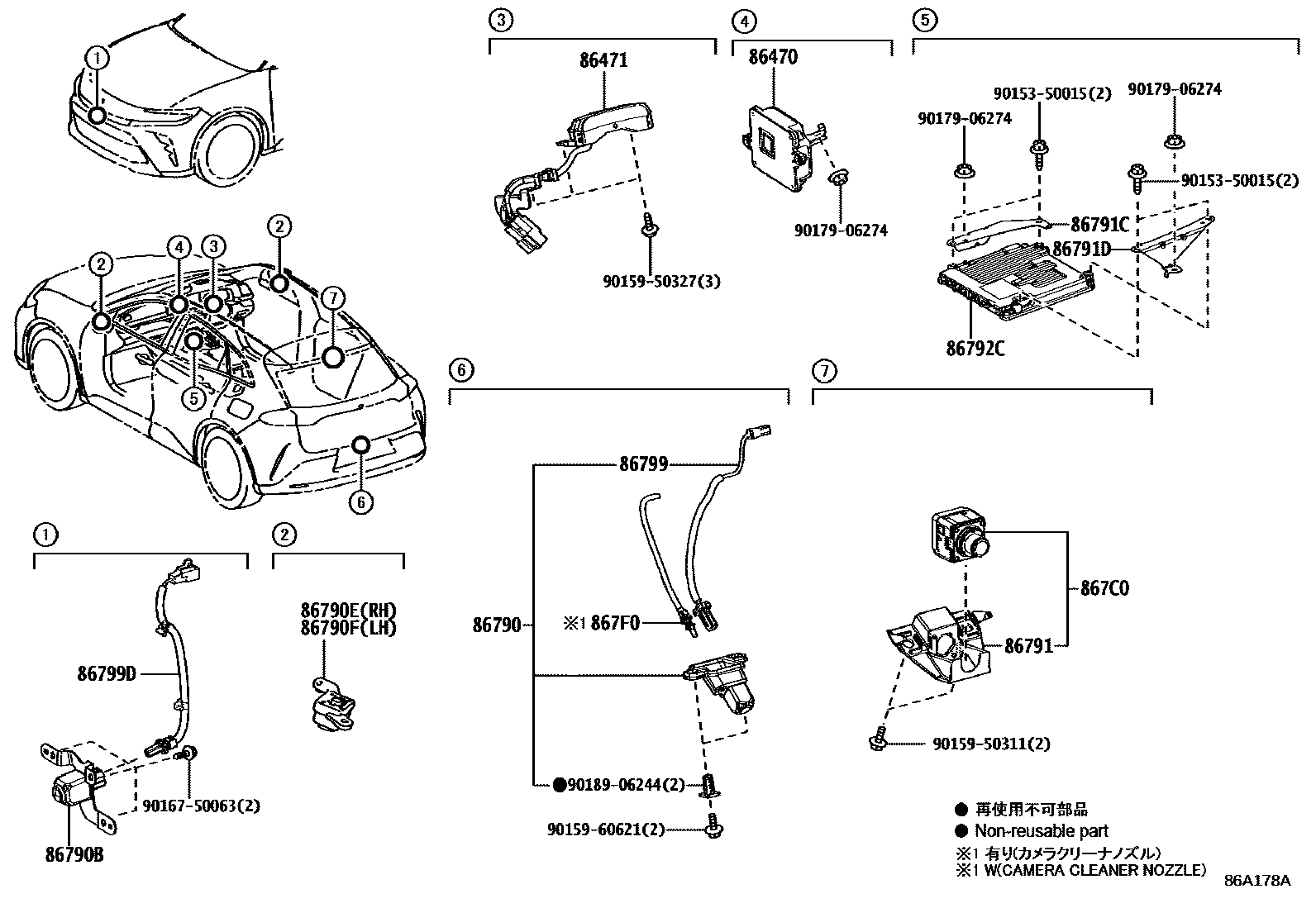

21 parts on this diagram · 1 diagram in section
