ANTENNA

86050GANTENNA ASSY, TELEVISION, NO.1 RH

main86050-53180i202308

86050HANTENNA ASSY, TELEVISION, NO.1 LH

main86050-53190i202308

86077COVER KIT, ANTENNA

main86077-33040-A5i202308

PRECIOUS WHITE PEARL,090

main86077-33040-C3i202308

BLACK,1M2 ,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,3U9 ,5C5 ,M24 ,M25 ,M26 ,M27 ,M29; BLACK,1M2 ,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,3U9 ,5C5 ,M24 ,M25 ,M26 ,M27 ,M29 ,M75 ,M76

main86077-33040-D2i202308-202507

EMOTIONAL RED 3,3U9

main86077-33040-E7i202308

PRECIOUS BRONZE,4Y6

main86077-33040-F1i202308-202507

MUSTARD,5C5

main86077-33040-P2i202308-202507

ASH,1M2

main86077-33040-P3i202406

GRAY METALLIC MATT,1M1

86101CORD SUB-ASSY, ANTENNA

main86101-30T10supersedes 86101-30T40i202308

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-30T80i202308

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-3A450i202308-202507

main86101-3A460supersedes 86101-3A440i202308

main86101-3A470i202308-202507

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-3A110supersedes 86101-3A100i202308-202507

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-3A150supersedes 86101-3A140i202308

86101SCORD SUB-ASSY, ANTENNA

main86101-3A730i202308

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86760-30260supersedes 86760-K0010i202308-202507

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-48351i202308

86769HOUSING, ROOF ANTENNA

main86769-K0010i202308

827153A550BRACKET,WIRING HARNESS CLAMP

main82715-3A550

8271548U60BRACKET,WIRING HARNESS CLAMP

main82715-48U60

9011906A06

main90119-06A06

9017906274

main90179-06274

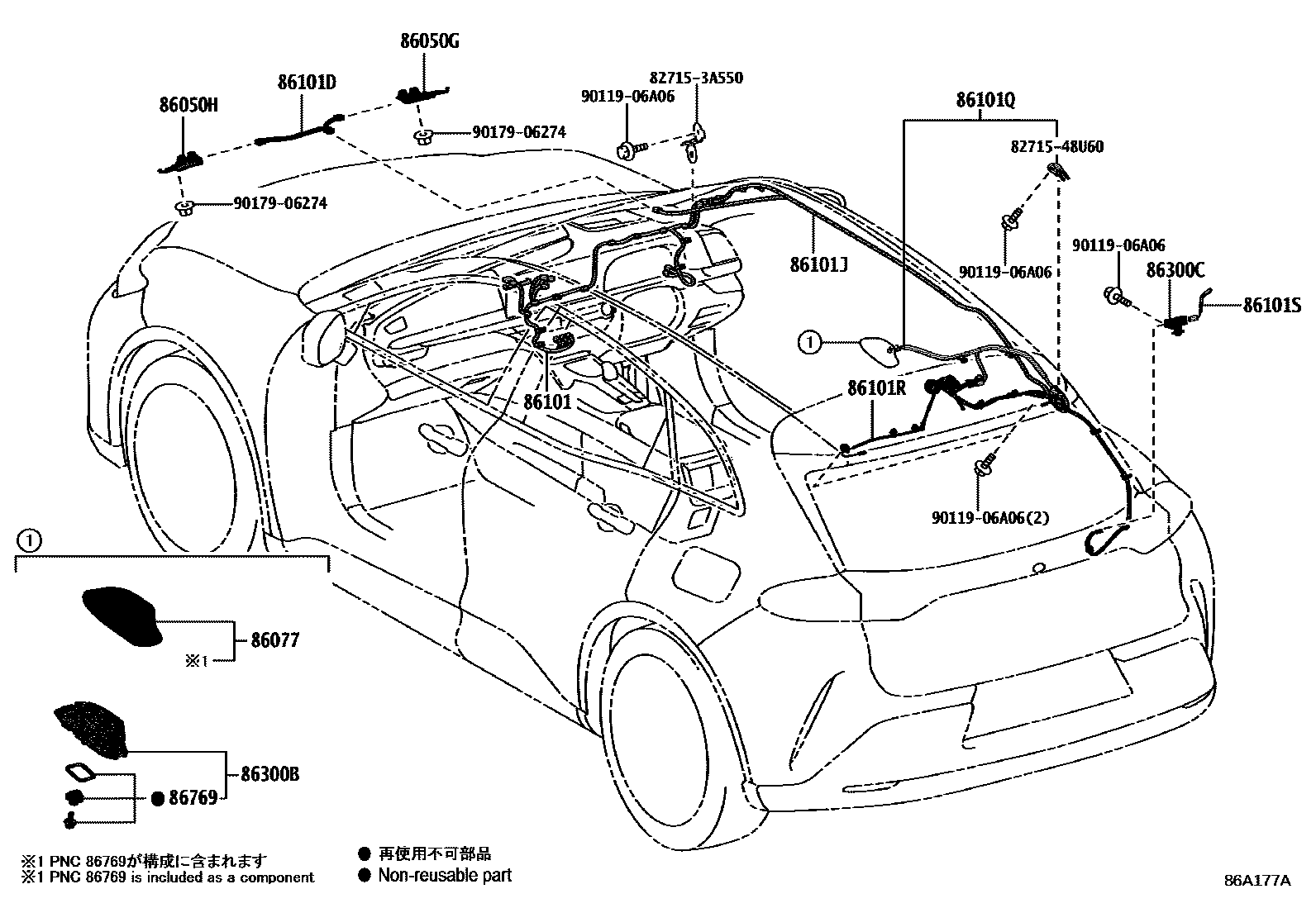

16 parts on this diagram · 1 diagram in section
