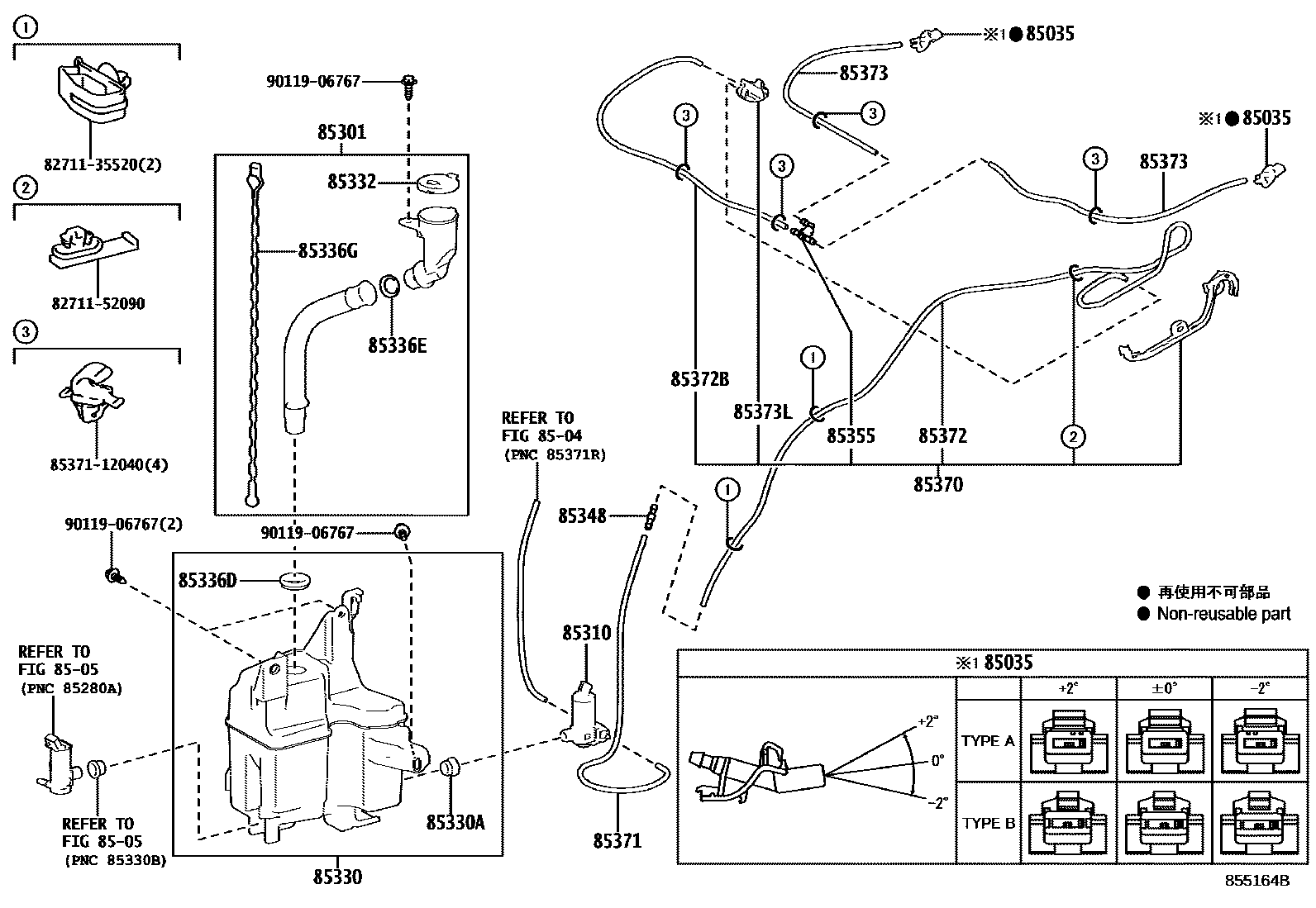

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-47090×2iAZSH3#202308

main85381-47100×2iAZSH3#202308

main85381-47110×2iAZSH3#202308

main85381-78030×2iAZSH3#202308

main85381-78040×2iAZSH3#202308

main85381-78050×2iAZSH3#202308

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-30160iAZSH3#202308

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11040iAZSH3#202308

85330JAR ASSY, WINDSHIELD WASHER

main85355-30160iAZSH3#202308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iAZSH3#202308

85332CAP, WINDSHIELD WASHER JAR

main85316-24130iAZSH3#202308

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160×2iAZSH3#202308

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iAZSH3#202308

85336GGAGE, WATER LEVEL

main85318-30630iAZSH3#202308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAZSH3#202308

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAZSH3#202308

85370HOSE ASSY, WINDSHIELD WASHER

main85370-30490iAZSH3#202308

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH3#202308

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAZSH3#202308

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAZSH3#202308

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iAZSH3#202308

85373LGROMMET, WASHER

main85373-30030iAZSH3#202308

8271135520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35520

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

23 parts on this diagram · 1 diagram in section
