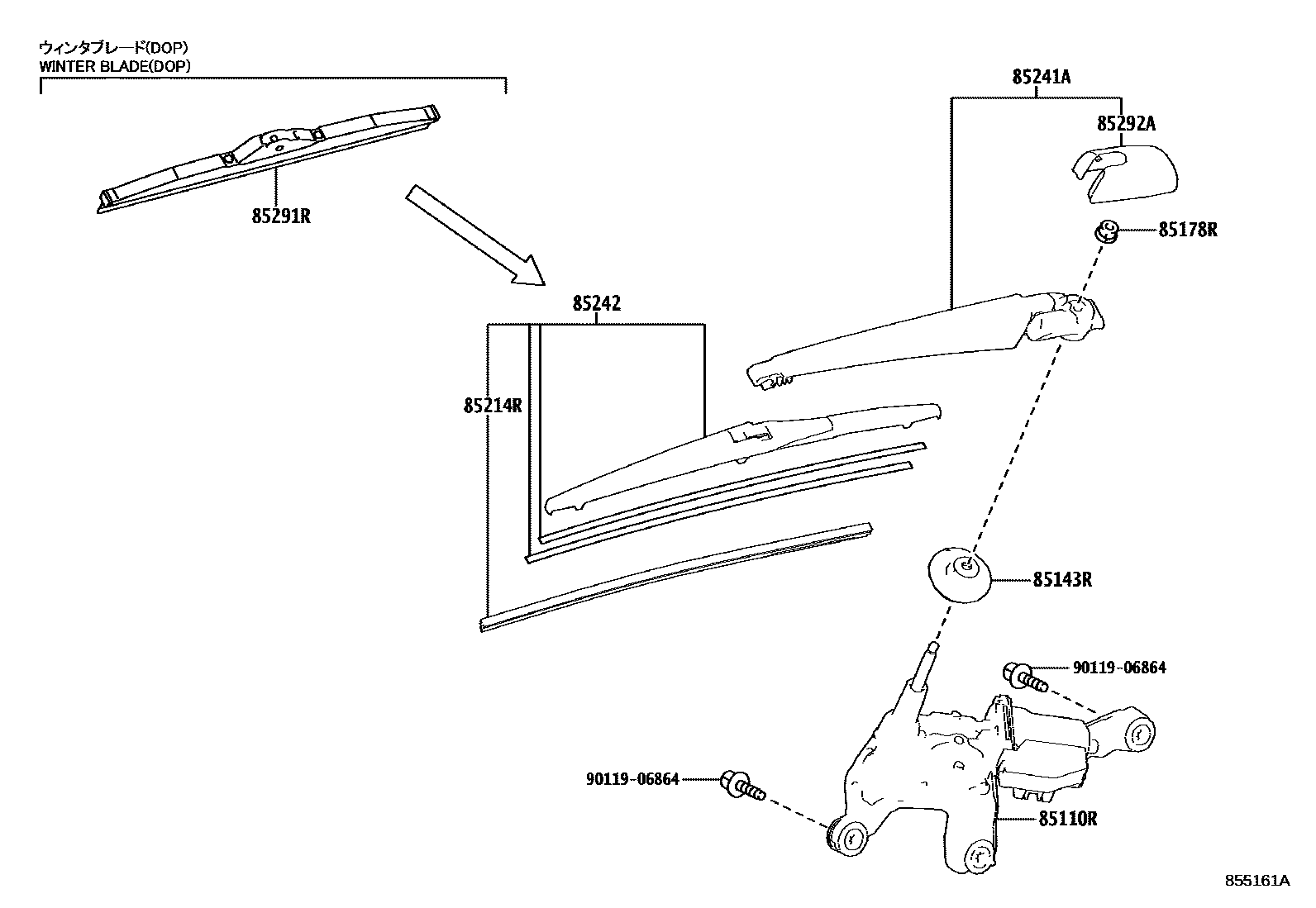

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-30280iAZSH3#202308

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iAZSH3#202308

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAZSH3#202308

85214RRUBBER, REAR WIPER

main85214-22440iAZSH3#202308

85241AARM, REAR WIPER

main85241-52230iAZSH3#202308

85242BLADE, RR WIPER

main85242-30050iAZSH3#202308

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iAZSH3#202308

9011906864

main90119-06864

9 parts on this diagram · 1 diagram in section
