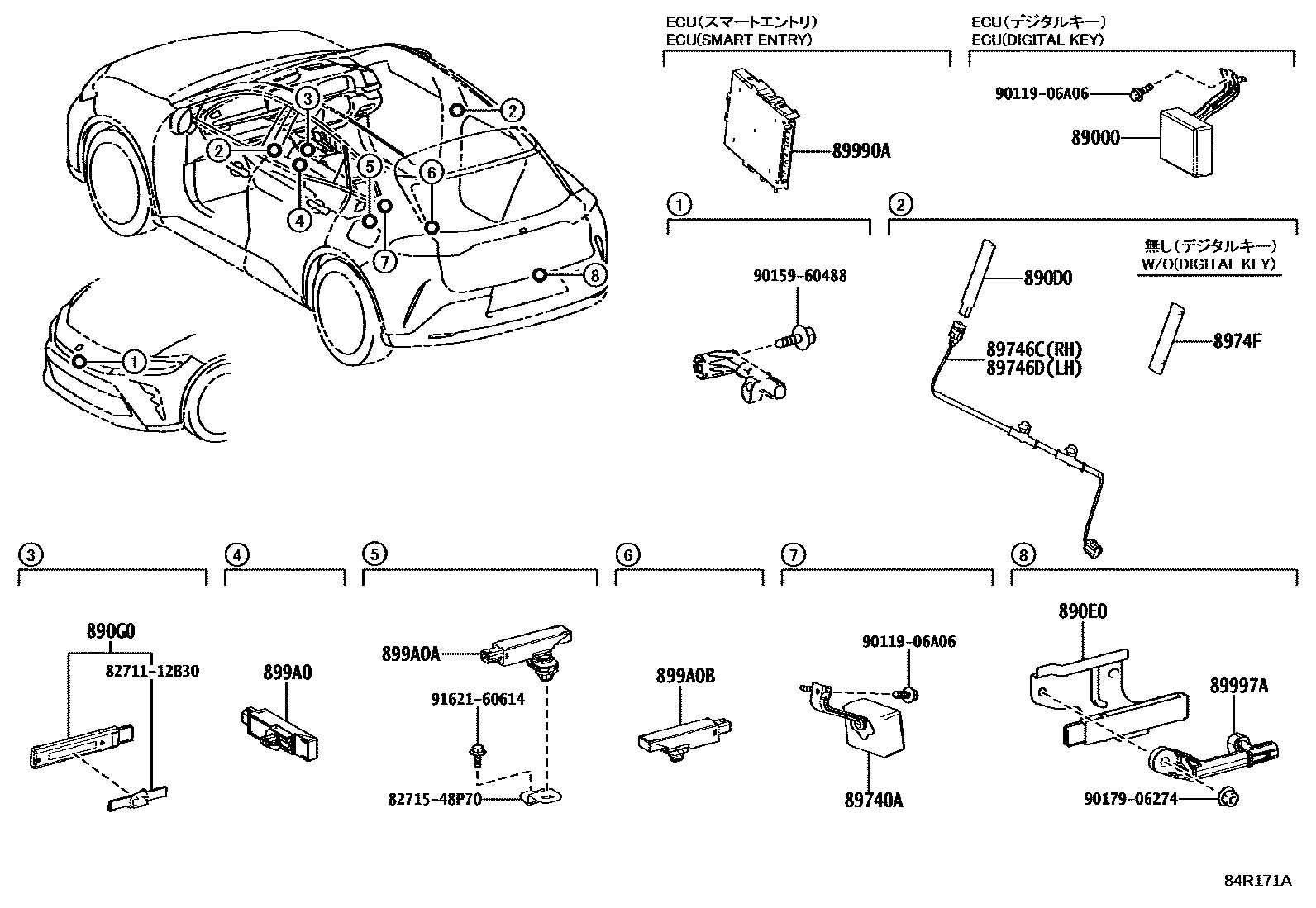

WIRELESS DOOR LOCK

89000COMPUTER ASSY, DIGITAL KEY

main89000-30120iAZSH36202308-202312

main89000-30121iAZSH3#; AZSH37..RS202401

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010×2iAZSH3#202308

890E0RECEIVER ASSY, BLE DIGITAL KEY

main890E0-30010iAZSH3#202308

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-V1010iAZSH3#202308

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-30280iAZSH3#202308

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-30160iAZSH3#202308

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-30220iAZSH3#202308

8974FCASE, W/O DIGITAL KEY

main8974F-78010×2iAZSH3#202308

89990ACOMPUTER ASSY, SMART KEY

main899H0-30150iAZSH3#202308-202507

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iAZSH3#202308

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iAZSH3#202308

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-42030iAZSH3#202308

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iAZSH3#202308

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

8271548P70BRACKET,WIRING HARNESS CLAMP

main82715-48P70

9011906A06

main90119-06A06

9015960488

main90159-60488

9017906274

main90179-06274

9162160614

main91621-60614

19 parts on this diagram · 1 diagram in section
