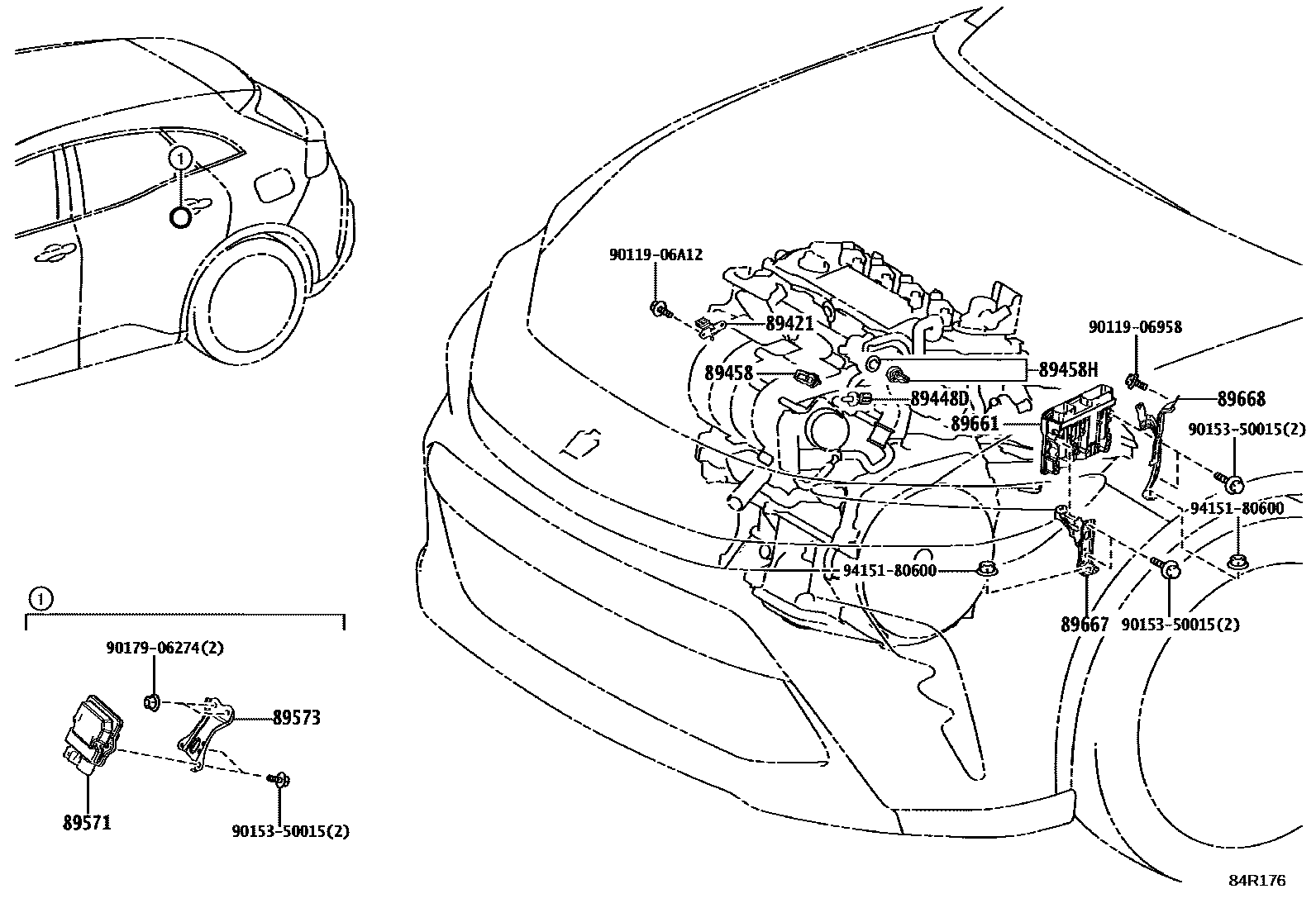

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAZSH3#202308

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAZSH3#202308

89458SENSOR, FUEL PRESSURE

main89458-33030iAZSH3#202308

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iAZSH3#202308

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAZSH37202312

main89571-48010iAZSH36202308

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-30150iAZSH3#202308

89661COMPUTER, ENGINE CONTROL

main89661-30P10iAZSH36202308

main89661-3AJ40iAZSH37202312

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-42080iAZSH3#202308-202406

main89667-42081iAZSH3#202407

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48170iAZSH3#202308

9011906958

main90119-06958

9011906A12

main90119-06A12

9015350015

main90153-50015

9017906274

main90179-06274

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
