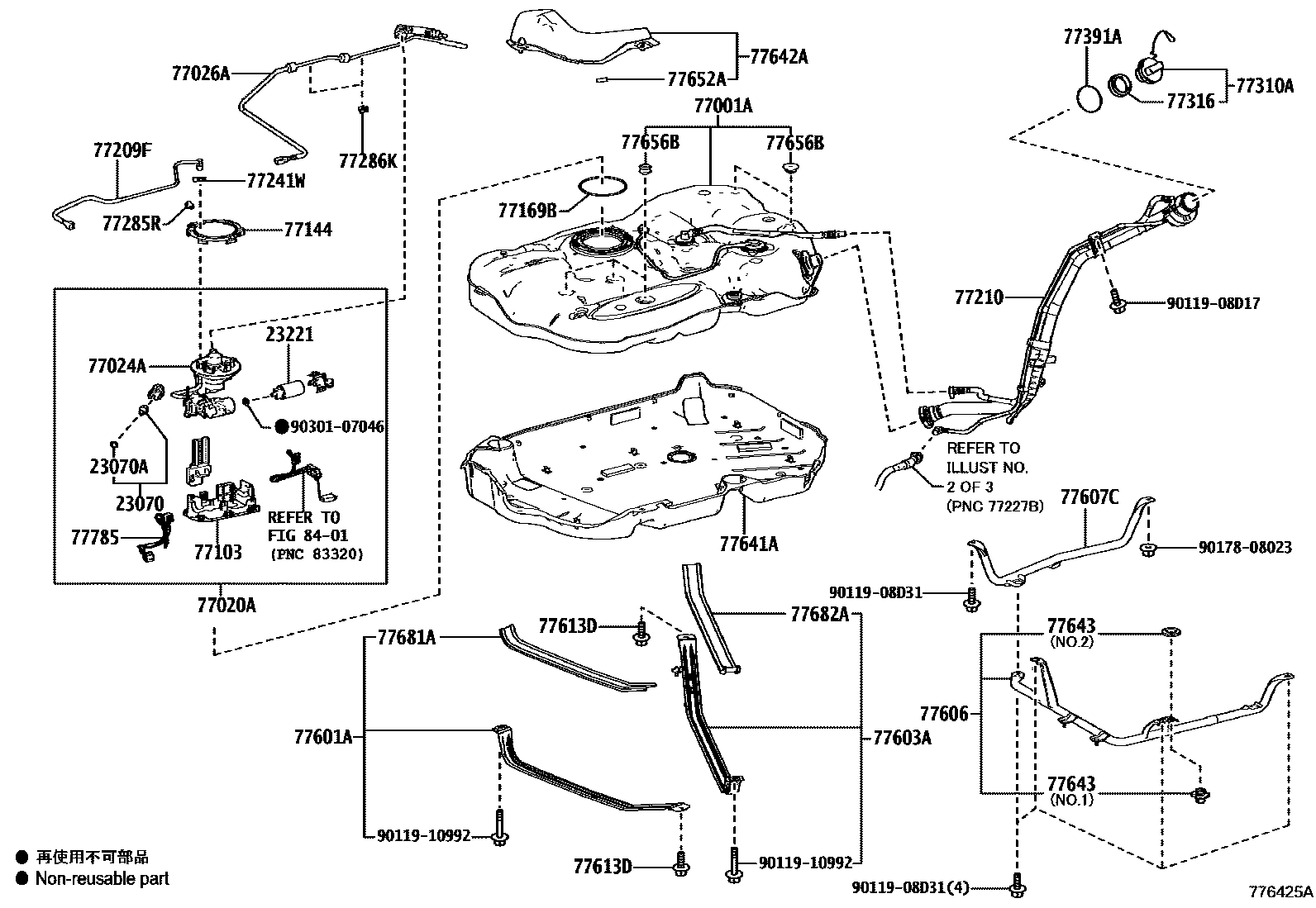

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1���������� 0004 1���������� 0005 1���������� 0006 1��������������

23070VALVE ASSY, FUEL MAIN

main23070-24010202308

main23070-25020202312

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024202308

23221PUMP, FUEL

main23221-24010202308

main23221-25030202312

77001ATANK SUB-ASSY, FUEL

main77001-30610202308

main77001-42480202312

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-42261202308

main77020-42300202312

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-42131202308

main77024-42170202312

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-42081202308

77103SUB-TANK SUB-ASSY, FUEL

main77103-42090202308

main77103-42120202312

77144RETAINER, FUEL PUMP GAUGE

main77144-30030202308

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47040202308

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42230202312

main77209-42241202308-202311

main77209-42250202312

77210PIPE ASSY, FUEL TANK FILLER

main77210-30270202308

main77210-30290202312

77241WCLIP, TUBE JOINT

main77241-60550202308

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350202308

77286KCLAMP, FUEL TUBE, NO.2

main77286-30180202308

77310ACAP ASSY, FUEL TANK

main77300-12020202308

main77300-33040202312

77316GASKET, FUEL TANK CAP

main77316-52040202308

main77316-75020202312

77391ARING, FUEL INLET BOX

main77391-12020202308

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42120202308

main77601-42140202312

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77601-42140202312

main77602-30070202308

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30240202308

main77606-42080202312

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-30030202308

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-10A05202308

77641APROTECTOR, FUEL TANK, NO.1

main77606-42060202308

main77641-42080202312

77642APROTECTOR, FUEL TANK, NO.2

main77642-42070202308

77643RETAINER, FUEL TANK PROTECTOR

main51489-28020202308

main51499-28030202308

77652ACUSHION, FUEL TANK, NO.2

main77652-33060202312

main77652-42040202308

77656BCUSHION, FUEL TANK, NO.6

main77656-33010202308

77681ASEAT, FUEL TANK BAND

main77681-42040202308

main77682-47020202312

77682ASEAT, FUEL TANK BAND, NO.2

main77682-42010202308

main77682-47020202312

77785HARNESS, FUEL PUMP

main77785-42061202308

main77785-42080202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D17

main90119-08D17

9011908D31

main90119-08D31

9011910992

main90119-10992

9017808023

main90178-08023

9030107046

main90301-07046

37 parts on this diagram · 6 diagrams in section
