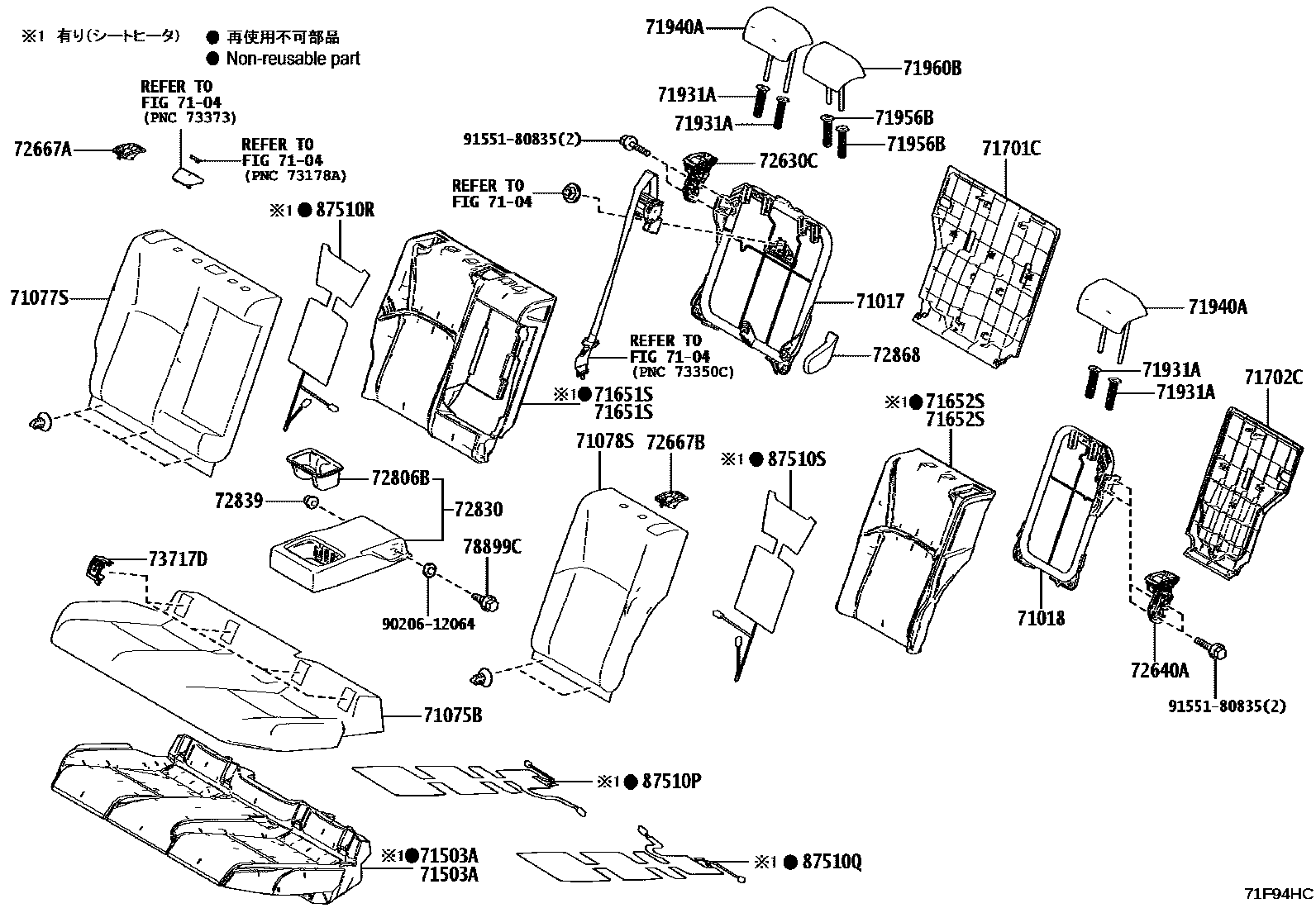

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104SEAT BELT & CHILD RESTRAINT SEAT
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK/LT.GRAY,TRIM2#
SADDLE TAN/SAND BROWN,TRIM4#
BLACK/LT.GRAY,TRIM2#
SADDLE TAN/SAND BROWN,TRIM4#
BLACK/LT.GRAY,TRIM20
BLACK/DK.GRAY,TRIM20,21
SAND BROWN,TRIM4#
BLACK/LT.GRAY,TRIM20
BLACK/DK.GRAY,TRIM20,21
SAND BROWN,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK/LT.GRAY,TRIM2#
SAND BROWN/MD.BROWN,TRIM4#
BLACK/LT.GRAY,TRIM2#
SAND BROWN/MD.BROWN,TRIM4#
SAND BROWN/MD.BROWN,TRIM4#
SAND BROWN/MD.BROWN,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
BLACK/LT.GRAY,TRIM2#
SADDLE TAN/MD.BROWN,TRIM4#
BLACK/LT.GRAY,TRIM2#
SAND BROWN/MD.BROWN,TRIM4#
SAND BROWN/MD.BROWN,TRIM4#
SAND BROWN/MD.BROWN,TRIM4#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
BLACK,TRIM2#
TAN,TRIM4#
SAND BROWN,TRIM4#
71956BSUPPORT, REAR SEAT HEADREST
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK,TRIM2#
SAND BROWN,TRIM4#
72630CLOCK ASSY, REAR SEATBACK, RH
BLACK,TRIM2#,4#
72640ALOCK ASSY, REAR SEATBACK, LH
BLACK,TRIM2#,4#
72667ABEZEL, REAR SEATBACK LOCK, UPPER RH
BLACK,TRIM2#,4#
72667BBEZEL, REAR SEATBACK LOCK, UPPER LH
BLACK,TRIM2#,4#
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
BLACK,TRIM2#,4#
72830ARMREST ASSY, REAR SEAT, CENTER
BLACK,TRIM20,21
BLACK/LT.GRAY,TRIM2#; BLACK/LT.GRAY,TRIM20
SAND BROWN,TRIM4#
72839SHIM, REAR SEAT ARMREST HINGE
72868COVER, CENTER ARMREST HINGE, RH
BLACK,TRIM2#,4#
73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM2#,4#
78899CBOLT, REAR SUB SEAT
87510PHEATER ASSY, SEAT
87510QHEATER ASSY, SEAT
87510RHEATER ASSY, SEAT
87510SHEATER ASSY, SEAT
9020612064
main90206-12064
9155180835
main91551-80835
31 parts on this diagram · 2 diagrams in section
