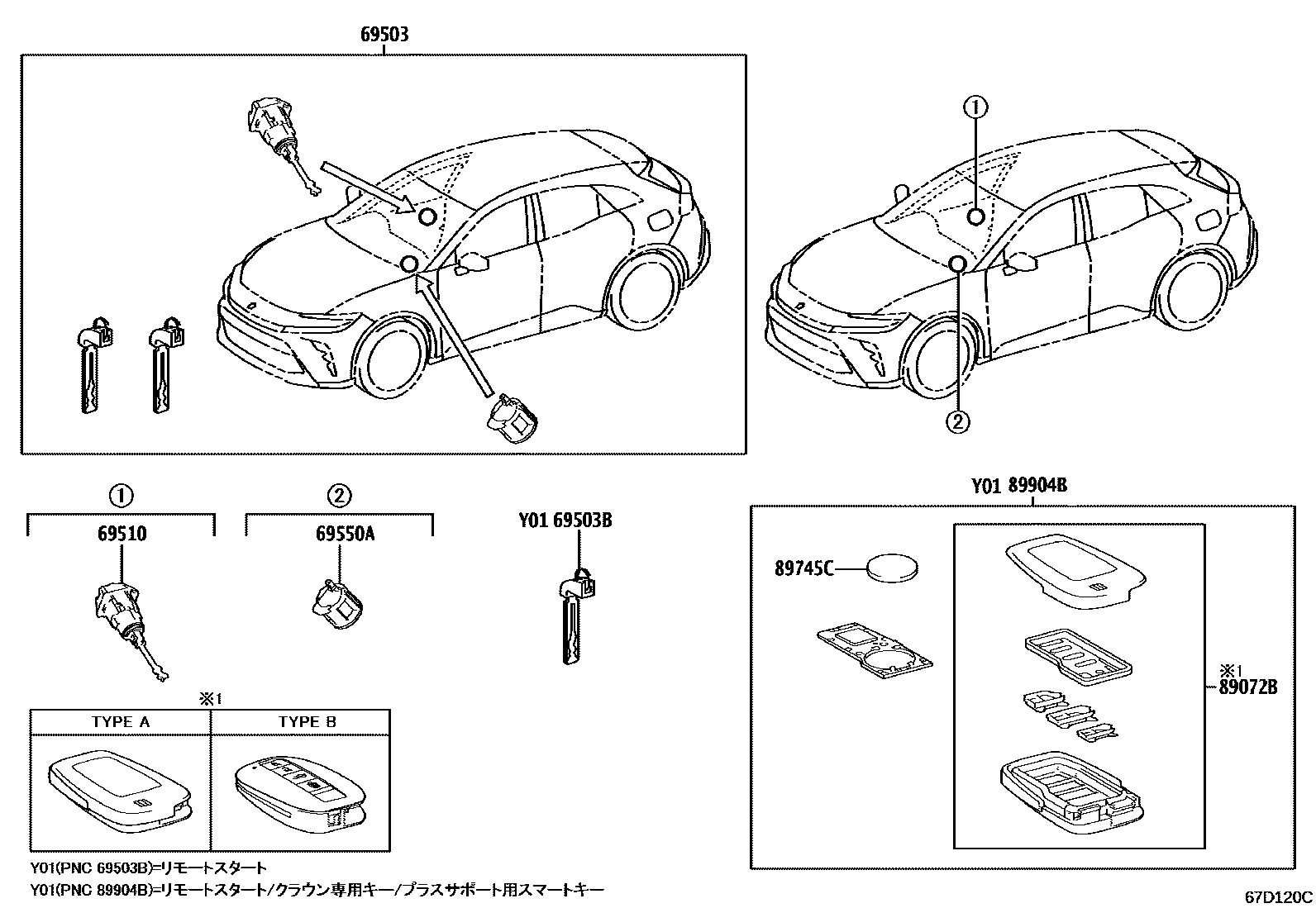

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-30J80iAZSH3#202308

69503BKEY, CUT

main69515-K0010iAZSH3#202308

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-30390iAZSH3#202308

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iAZSH3#202308

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-30B50×2iAZSH37..G202308-202507

main89072-30B70×2iAZSH3#..RS,Z202308

main89072-30C40×2iAZSH37..RS202312

89745CBATTERY, TRANSMITTER

main89745-50020iAZSH37..RS202312

main89745-K0010iAZSH3#; AZSH37;AZSH36..Z202308

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990E-47050supersedes 8990H-30100iAZSH36..G202308

main8990E-47070supersedes 8990H-30110iAZSH3#..RS,Z202308

main8990H-30280iAZSH37..RS202312

7 parts on this diagram · 1 diagram in section
