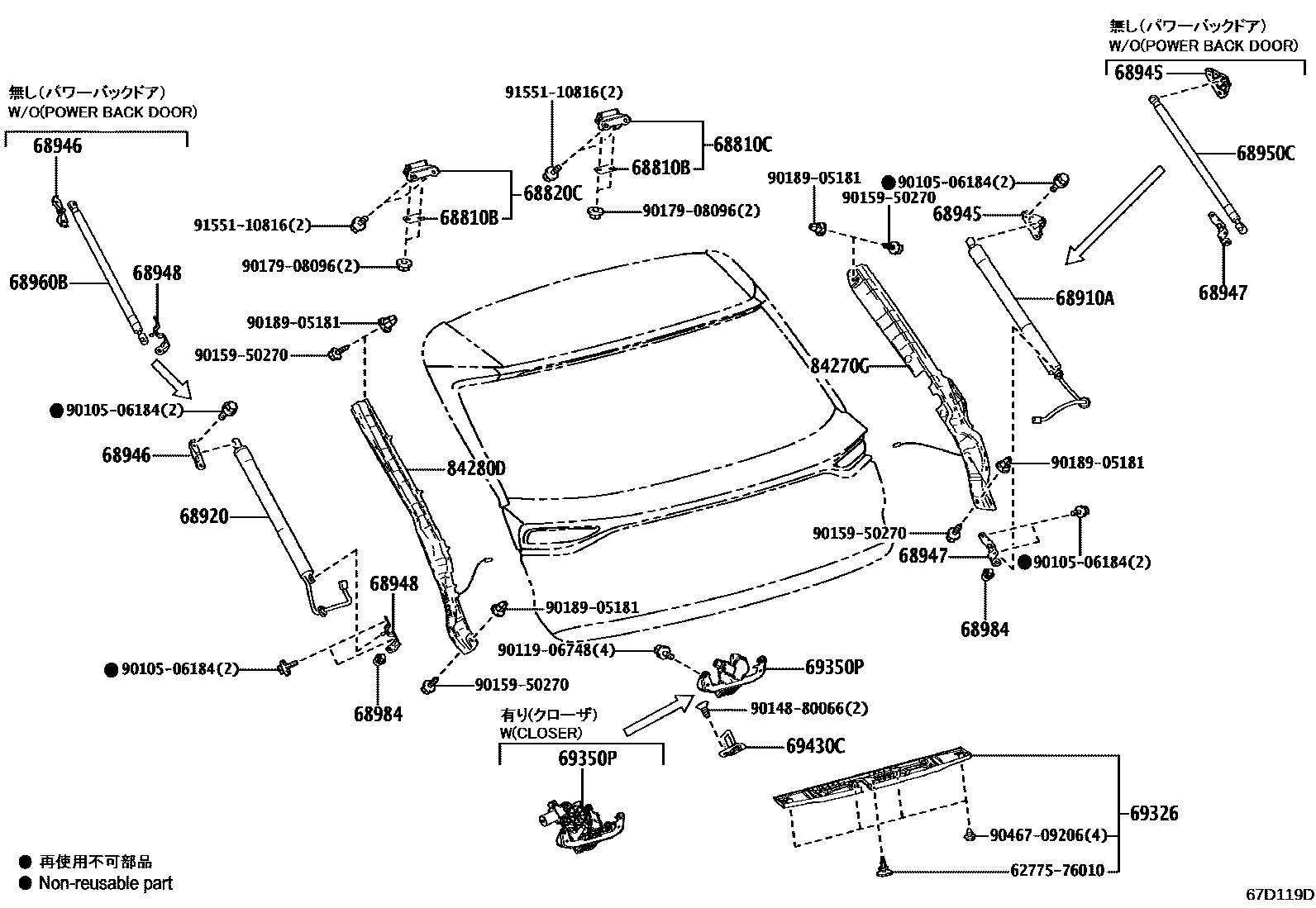

BACK DOOR LOCK & HANDLE
68810BPAD, BACK DOOR HINGE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68910AUNIT ASSY SET, POWER BACK DOOR, RH
68920UNIT ASSY SET, POWER BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960BSTAY ASSY, BACK DOOR, LH
68984STOPPER, BACK DOOR STAY
69326PLATE, BACK DOOR OUTSIDE HANDLE
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
84270GSENSOR ASSY, POWER BACK DOOR, RH
84280DSENSOR ASSY, POWER BACK DOOR, LH
6277576010CLIP, SIDE FRONT WINDOW
main62775-76010
9010506184
main90105-06184
9011906748
main90119-06748
9014880066
main90148-80066
9015950270
main90159-50270
9017908096
main90179-08096
9018905181
main90189-05181
9046709206
main90467-09206
9155110816
main91551-10816
26 parts on this diagram · 1 diagram in section
