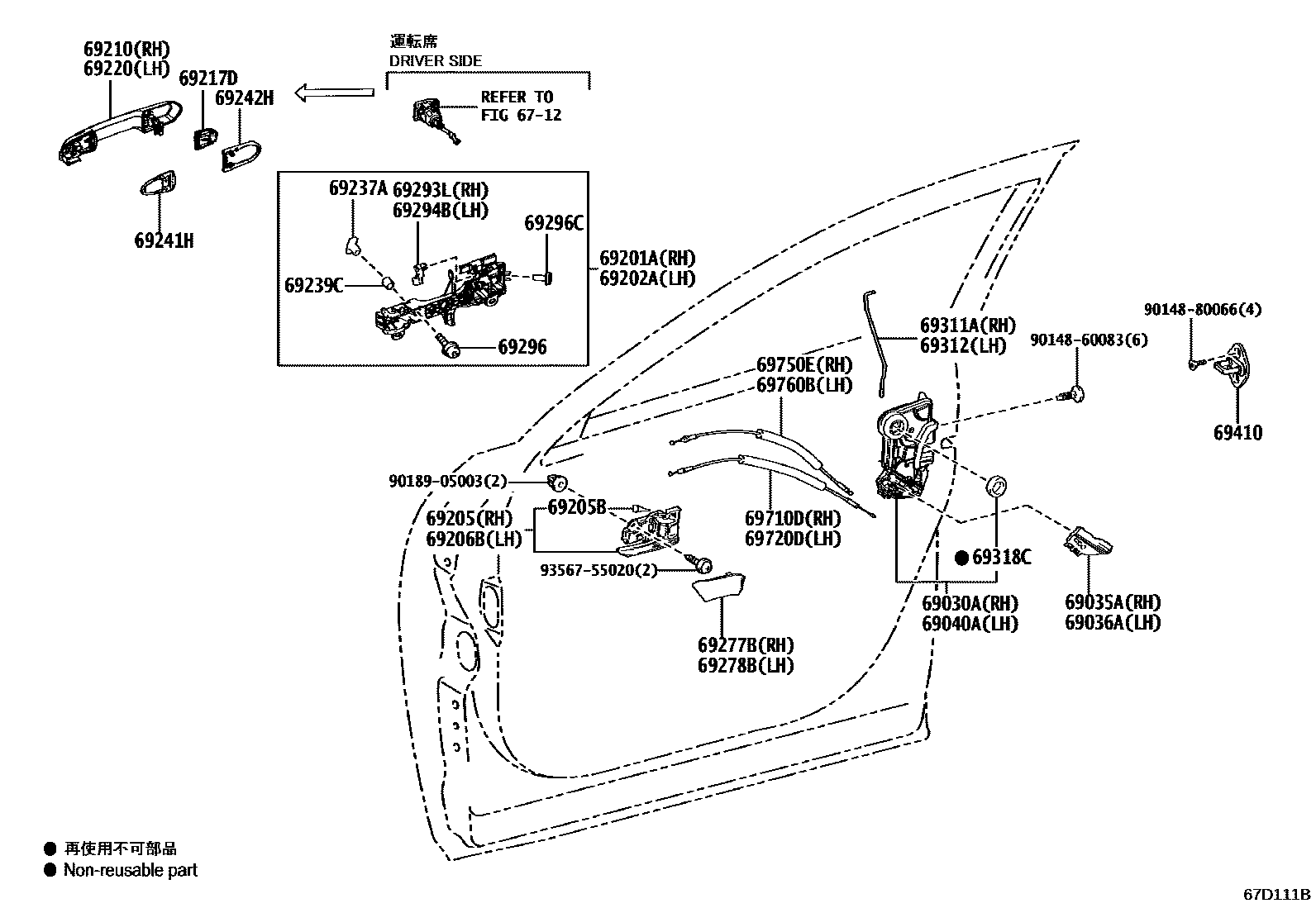

FRONT DOOR LOCK & HANDLE

6712LOCK CYLINDER SET

→ Go to FIG 67-12

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-30A70i202308

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010i202308

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010i202308

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-30A80i202308

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30100i202308

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30090i202308

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30230-C0i202308

BLACK,TRIM2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2i202308

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30230-C0i202308

BLACK,TRIM2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-42171-20i202308

BLACK,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,M25; BLACK,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,M25 ,M75 ,M76

main69210-42171-A3i202308

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main69210-42171-D4i202308

EMOTIONAL RED 3,2ZR ,3U9 ,M24

main69210-42171-E1i202308

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main69210-42171-F1i202308

MUSTARD,5C5 ,M25

main69210-42171-P1i202308

ASH,1M2 ,2ZQ ,M29

main69210-42171-P2i202409

GRAY METALLIC MATT,1M1

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-30140i202308

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-42121-20i202308

BLACK,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,M25; BLACK,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,M25 ,M75 ,M76

main69210-42121-A3i202308

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main69210-42121-D4i202308

EMOTIONAL RED 3,2ZR ,3U9 ,M24

main69210-42121-E1i202308

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main69210-42121-F1i202308

MUSTARD,5C5 ,M25

main69210-42121-P1i202308

ASH,1M2 ,2ZQ ,M29

main69210-42121-P2i202409

GRAY METALLIC MATT,1M1

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2i202308

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2i202308

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30130×2i202308

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30110×2i202308

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-30240-C2i202308

BLACK,TRIM2#,4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-30240-C2i202308

BLACK,TRIM2#,4#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030i202308

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040i202308

69296SCREW, DOOR INSIDE HANDLE

main90148-50006×2i202308

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003×2i202308

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-30220i202308

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-30220i202308

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i202308

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2i202308

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-30260i202308

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-30260i202308

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-30230i202308

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-30230i202308

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

35 parts on this diagram · 1 diagram in section
