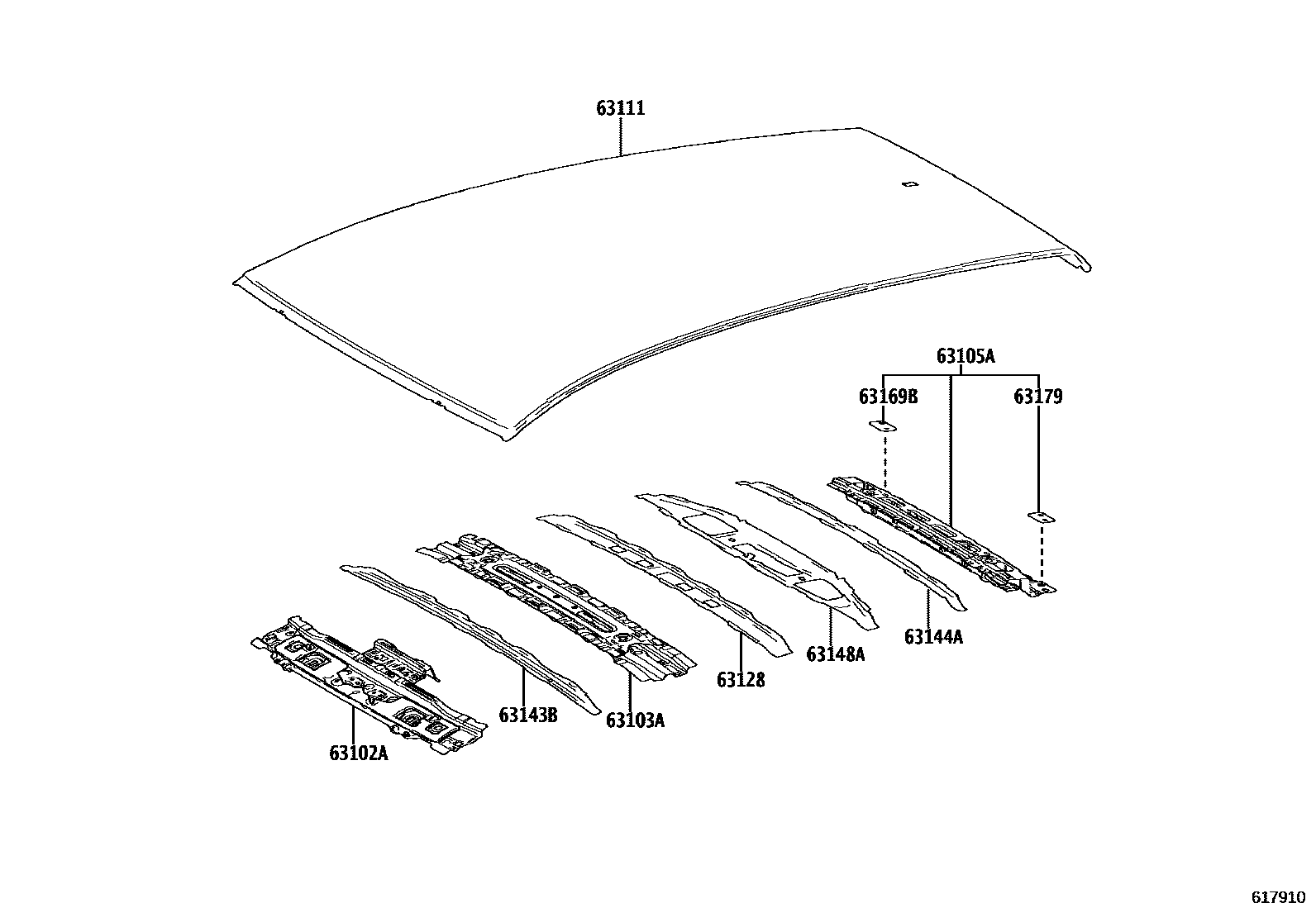

ROOF PANEL & BACK WINDOW GLASS

0001 1�������(�������) 0002 1�������(��������) 0003 1�������������������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30912iAZSH3#202308

main63102-30490iAZSH3#..RS,Z202308

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-30440iAZSH3#202308

main63103-30450iAZSH3#..RS,Z202308

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-30110iAZSH3#202308

63111PANEL, ROOF

main63111-30B60iAZSH3#202308

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30160iAZSH3#202308

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-30330iAZSH3#202308

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30280iAZSH3#202308

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30220iAZSH3#202308

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iAZSH3#202308

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iAZSH3#202308

10 parts on this diagram · 3 diagrams in section
