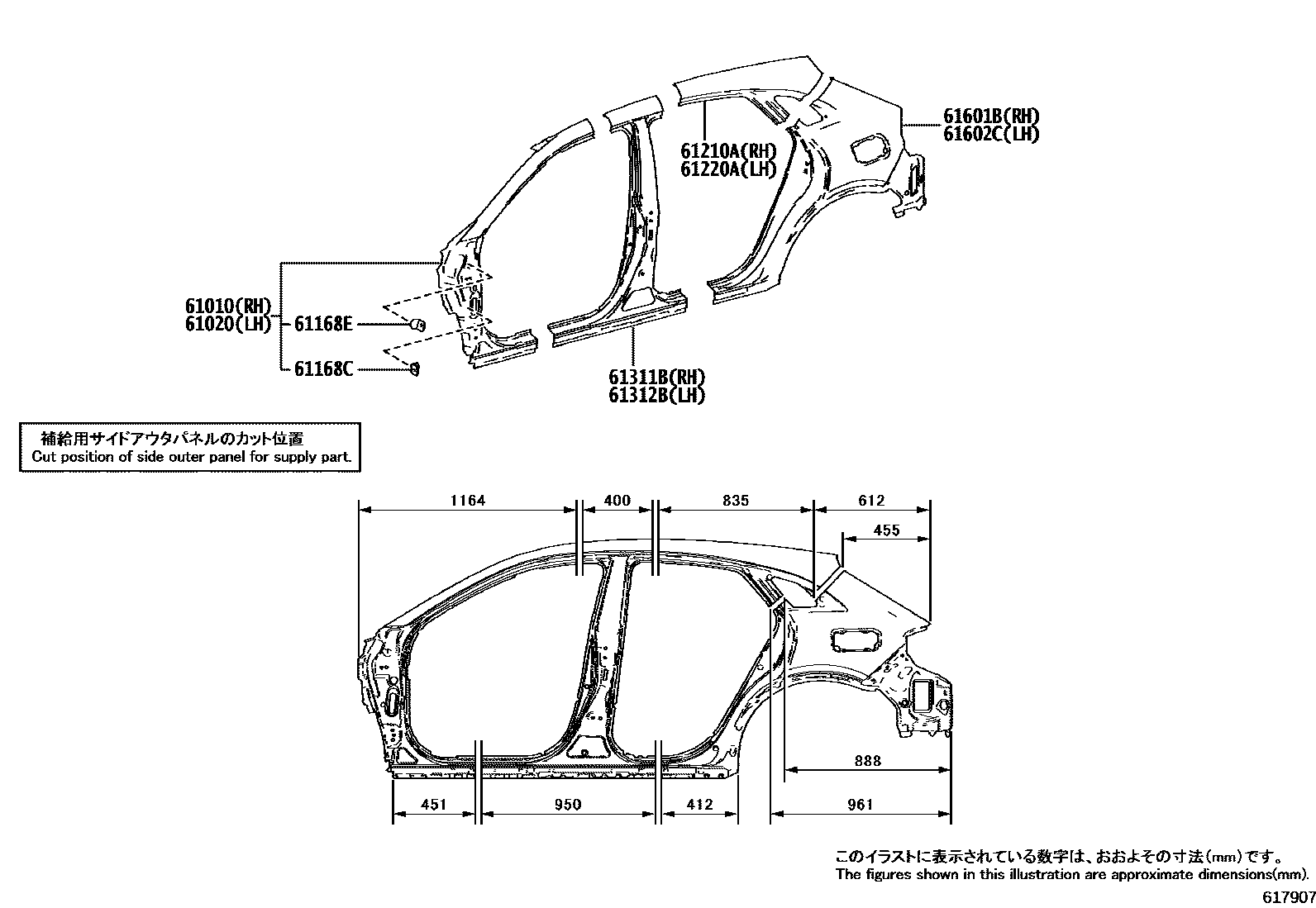

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61010MEMBER ASSY, SIDE, RH

main61010-30050iAZSH3#202308

61020MEMBER ASSY, SIDE, LH

main61020-30040iAZSH3#202308

61168CBRACKET, NO.6 PILLAR OUTER

main61168-30110iAZSH3#202308

61168EBRACKET, NO.6 PILLAR OUTER

main61168-44010iAZSH3#202308

61210ARAIL ASSY, ROOF SIDE, RH

main61210-30020iAZSH3#202308

61220ARAIL ASSY, ROOF SIDE, LH

main61220-30020iAZSH3#202308

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30340iAZSH3#202308

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30440iAZSH3#202308

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-30A80iAZSH36202308

main61601-30A90iAZSH37202312

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-30A70iAZSH3#202308

10 parts on this diagram · 3 diagrams in section
