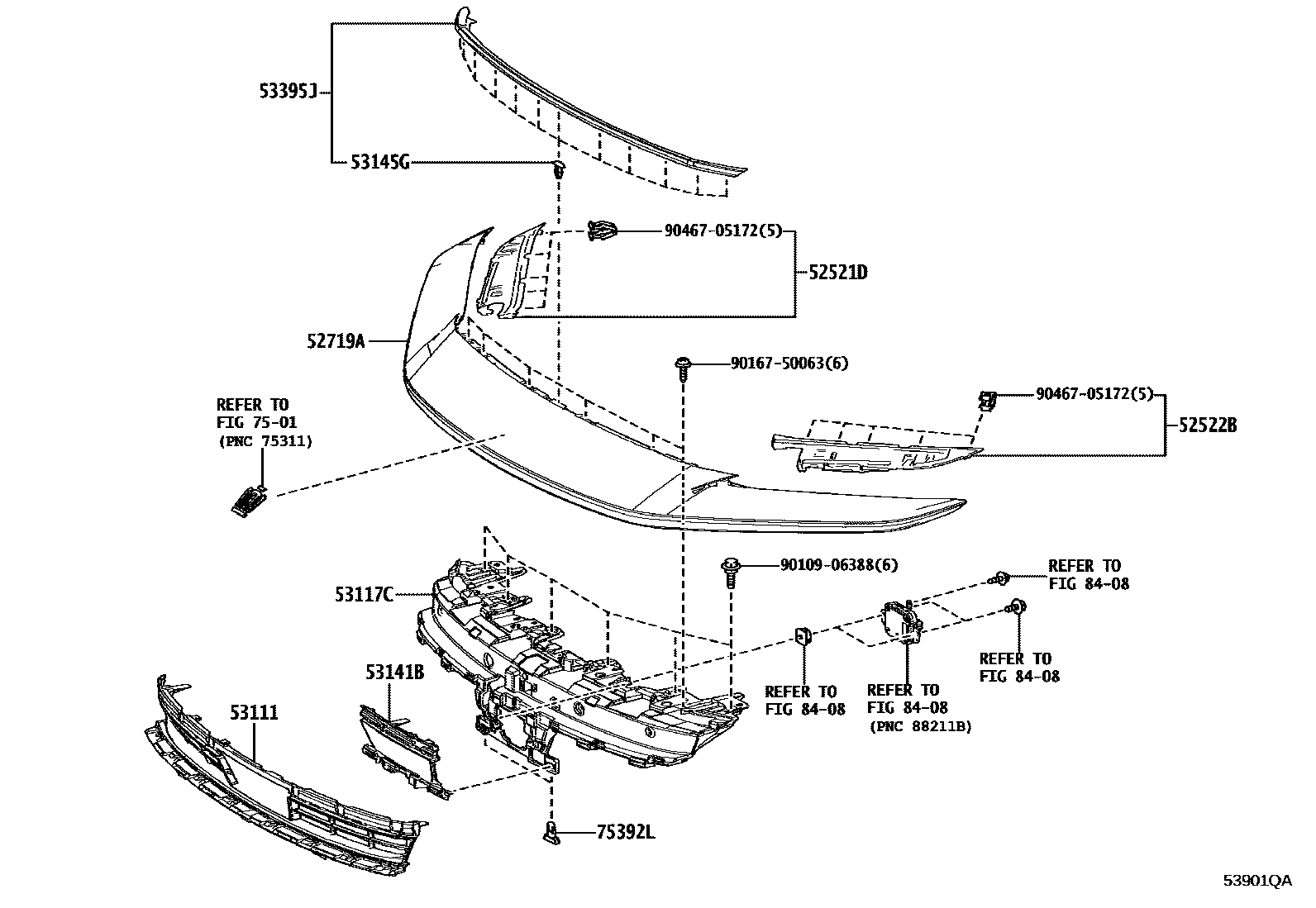

RADIATOR GRILLE

52521DRETAINER, FRONT BUMPER FILLER, NO.1

main52521-30110iAZSH3#202308

52522BRETAINER, FRONT BUMPER FILLER, NO.2

main52522-30040iAZSH3#202308

52719ACOVER, FRONT BUMPER MOULDING

main52719-30030-A0iAZSH3#..G; AZSH3#..RS,Z; AZSH36..Z202308-202507

main52719-30030-B0iAZSH3#..G; AZSH36..Z202308-202507

main52719-30030-C0iAZSH36..G; AZSH36..Z202308-202507

main52719-30030-D0iAZSH36..G; AZSH36..Z;AZSH37..G; AZSH37;AZSH36..Z202308-202507

main52719-30030-F0iAZSH36..G; AZSH36..G;AZSH37..RS; AZSH36..Z; AZSH37;AZSH36..Z202308-202507

main52719-30030-B1iAZSH37..RS202409-202507

main52719-30030-E0iAZSH36..G; AZSH36..Z202308-202507

53111GRILLE, RADIATOR

main53111-30J70iAZSH3#202308

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-30310iAZSH3#202308

53141BGARNISH, RADIATOR GRILLE, NO.1

main53141-30590supersedes 53141-30570iAZSH3#202308-202507

53145GCLIP, RADIATOR GRILLE

main53145-60030×12iAZSH3#202308

53395JSEAL, HOOD TO FRONT END PANEL

main53395-30020iAZSH3#202308

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75392LRETAINER, OUTSIDE MOULDING

main75392-35220×2iAZSH3#202308

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010906388

main90109-06388

9016750063

main90167-50063

9046705172

main90467-05172

14 parts on this diagram · 1 diagram in section
