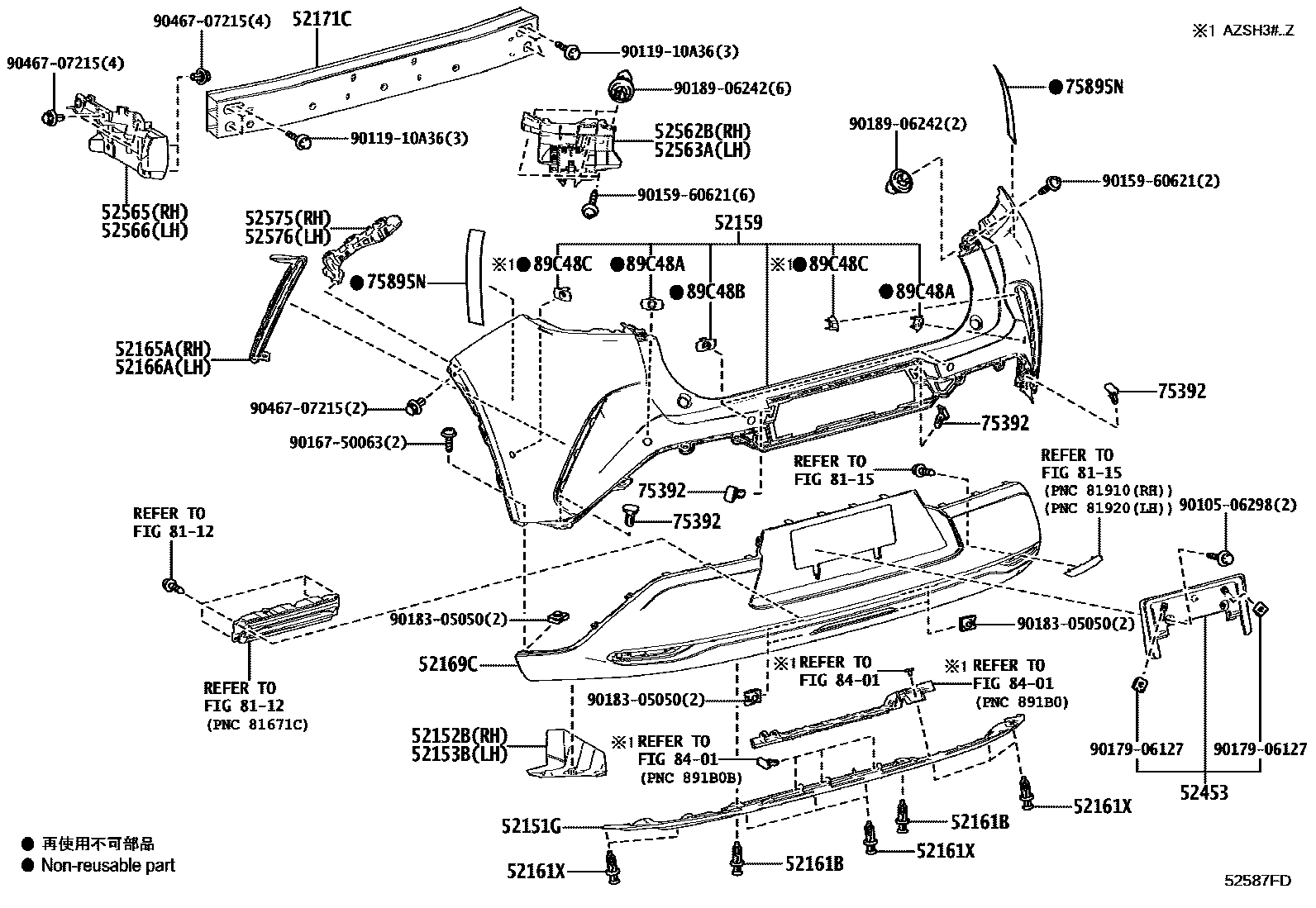

REAR BUMPER & BUMPER STAY

52151GEXTENSION, REAR BUMPER

main52151-30250iAZSH3#202308

52152BEXTENSION, REAR BUMPER, RH

main52152-30250iAZSH3#202308

52153BEXTENSION, REAR BUMPER, LH

main52153-30170iAZSH3#202308

52159COVER, REAR BUMPER

main52159-3A945-A0iAZSH36..G202308

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main52159-3A945-B2iAZSH36..G202308

ASH,090 ,1M2 ,2ZQ ,M29

main52159-3A945-C0iAZSH37..G202308-202507

BLACK,1M2 ,202

main52159-3A945-D1iAZSH36..G202308

EMOTIONAL RED 3,2ZR ,3U9 ,M24

main52159-3A945-E0iAZSH36..G202308

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main52159-3A945-F0iAZSH36..G202308

MUSTARD,2ZS ,5C5 ,M25

main52159-3A946-A0iAZSH3#..RS,Z202308-202507

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main52159-3A946-B2iAZSH3#..RS,Z202308-202507

ASH,1M2 ,M29

main52159-3A946-C0iAZSH3#..RS,Z202308-202507

BLACK,202

main52159-3A946-D1iAZSH3#..RS,Z202308-202507

EMOTIONAL RED 3,2ZR ,3U9 ,M24

main52159-3A946-E0iAZSH3#..RS,Z202308-202507

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main52159-3A946-F0iAZSH3#..RS,Z202308-202507

MUSTARD,2ZS ,5C5 ,M25

main52159-3A946-B5iAZSH37..RS202409-202507

52161BPIECE, REAR BUMPER

main52161-16010×2iAZSH3#202308

52161XPIECE, REAR BUMPER

main52161-16010×8iAZSH3#202308

52165ACOVER, REAR BUMPER, UPR RH

main52165-30200iAZSH3#202308

52166ACOVER, REAR BUMPER, UPR LH

main52166-30220iAZSH3#202308

52169CCOVER, REAR BUMPER, LOWER

main52169-30440iAZSH3#202308

52171CREINFORCEMENT, REAR BUMPER

main52171-30320iAZSH3#202308

52453GUARD, REAR BUMPER, CENTER

main52453-30060iAZSH3#202308

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-30190iAZSH3#202308

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-30150iAZSH3#202308

52565FILLER, REAR BUMPER EXTENSION, RH

main52565-30080iAZSH3#202308

52566FILLER, REAR BUMPER EXTENSION, LH

main52566-30050iAZSH3#202308

52575RETAINER, REAR BUMPER SIDE, RH

main52575-30230iAZSH3#202308

52576RETAINER, REAR BUMPER SIDE, LH

main52576-30190iAZSH3#202308

75392RETAINER, OUTSIDE MOULDING

main75392-35220×4iAZSH3#202308

75895NTAPE, MOULDING, NO.1

main75895-30070×2iAZSH36202308-202311

main75895-53010×2iAZSH3#202312

8112BACK UP LAMP

→ Go to FIG 81-12

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-30880×2iAZSH3#202308

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-30480-A0×2iAZSH3#..G; AZSH3#..RS,Z202407

PRECIOUS WHITE PEARL,090 ,2XW; PRECIOUS WHITE PEARL,090 ,2XW ,M75

main89348-30480-B5×2iAZSH3#202407

ASH,1M2 ,2ZQ

main89348-30480-B6×2iAZSH37..RS202407

GRAY METALLIC MATT,1M1

main89348-30480-C0×2iAZSH3#..G; AZSH3#..RS,Z202407

BLACK,202; BLACK,202 ,M76

main89348-30480-D1×2iAZSH3#202407

EMOTIONAL RED 3,2ZR ,3U9

main89348-30480-E0×2iAZSH3#202407

PRECIOUS BRONZE,2XZ ,4Y6

main89348-30480-F0×2iAZSH3#202407

MUSTARD,2ZS ,5C5

main89348-30810-A0×2iAZSH3#202308-202406

PRECIOUS WHITE PEARL,090 ,2XW ,M26

main89348-30810-B0×2iAZSH3#202308-202406

ASH,1M2 ,2ZQ ,M29

main89348-30810-C0×2iAZSH3#202308-202406

BLACK,202

main89348-30810-D0×2iAZSH3#202308-202406

EMOTIONAL RED 3,2ZR ,3U9 ,M24

main89348-30810-E0×2iAZSH3#202308-202406

PRECIOUS BRONZE,2XZ ,4Y6 ,M27

main89348-30810-F0×2iAZSH3#202308-202406

MUSTARD,2ZS ,5C5 ,M25

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

main89348-30470×2iAZSH3#..RS,Z202308

9010506298

main90105-06298

9011910A36

main90119-10A36

9015960621

main90159-60621

9016750063

main90167-50063

9017906127

main90179-06127

9018305050

main90183-05050

9018906242

main90189-06242

9046707215

main90467-07215

33 parts on this diagram · 1 diagram in section
