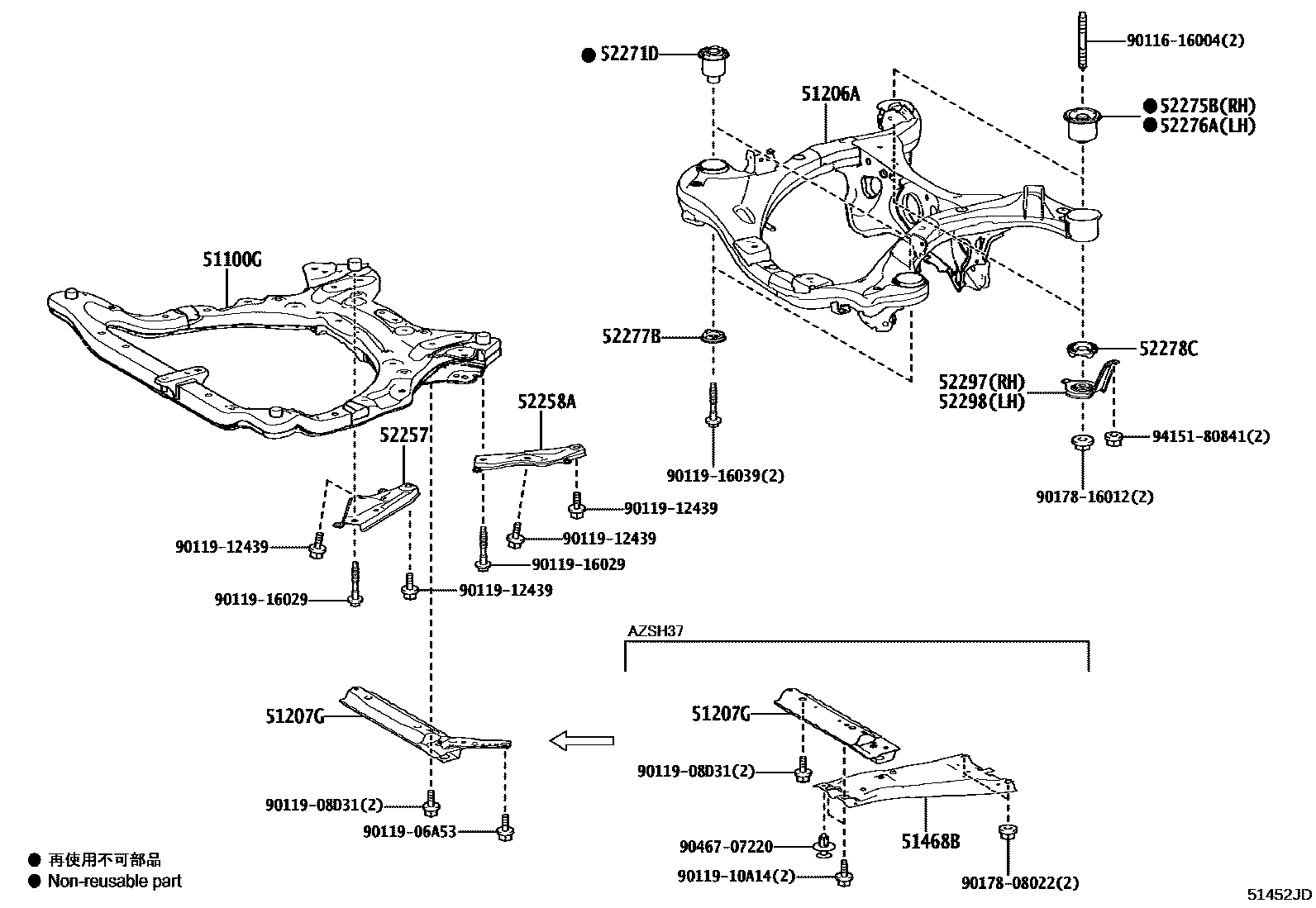

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1�������� 0003 1��������

51100GFRAME ASSY, FRONT

main51100-42051iAZSH3#202308

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30180iAZSH3#202308

51207GBRACKET SUB-ASSY, STRUT BAR

main51207-30110iAZSH36202308

main51207-30130iAZSH37202312

51468BINSULATOR, ENGINE UNDER COVER HEAT

main51468-30030iAZSH37202312

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42020iAZSH3#202308

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iAZSH3#202308

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-48050×2iAZSH3#202308

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-48030iAZSH3#202308

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-48020iAZSH3#202308

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-48040×2iAZSH3#202308

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-48020×2iAZSH3#202308

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-30070iAZSH3#202308

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-30070iAZSH3#202308

9011616004

main90116-16004

9011906A53

main90119-06A53

9011908D31

main90119-08D31

9011910A14

main90119-10A14

9011912439

main90119-12439

9011916029

main90119-16029

9011916039

main90119-16039

9017808022

main90178-08022

9017816012

main90178-16012

9046707220

main90467-07220

9415180841

main94151-80841

24 parts on this diagram · 3 diagrams in section
