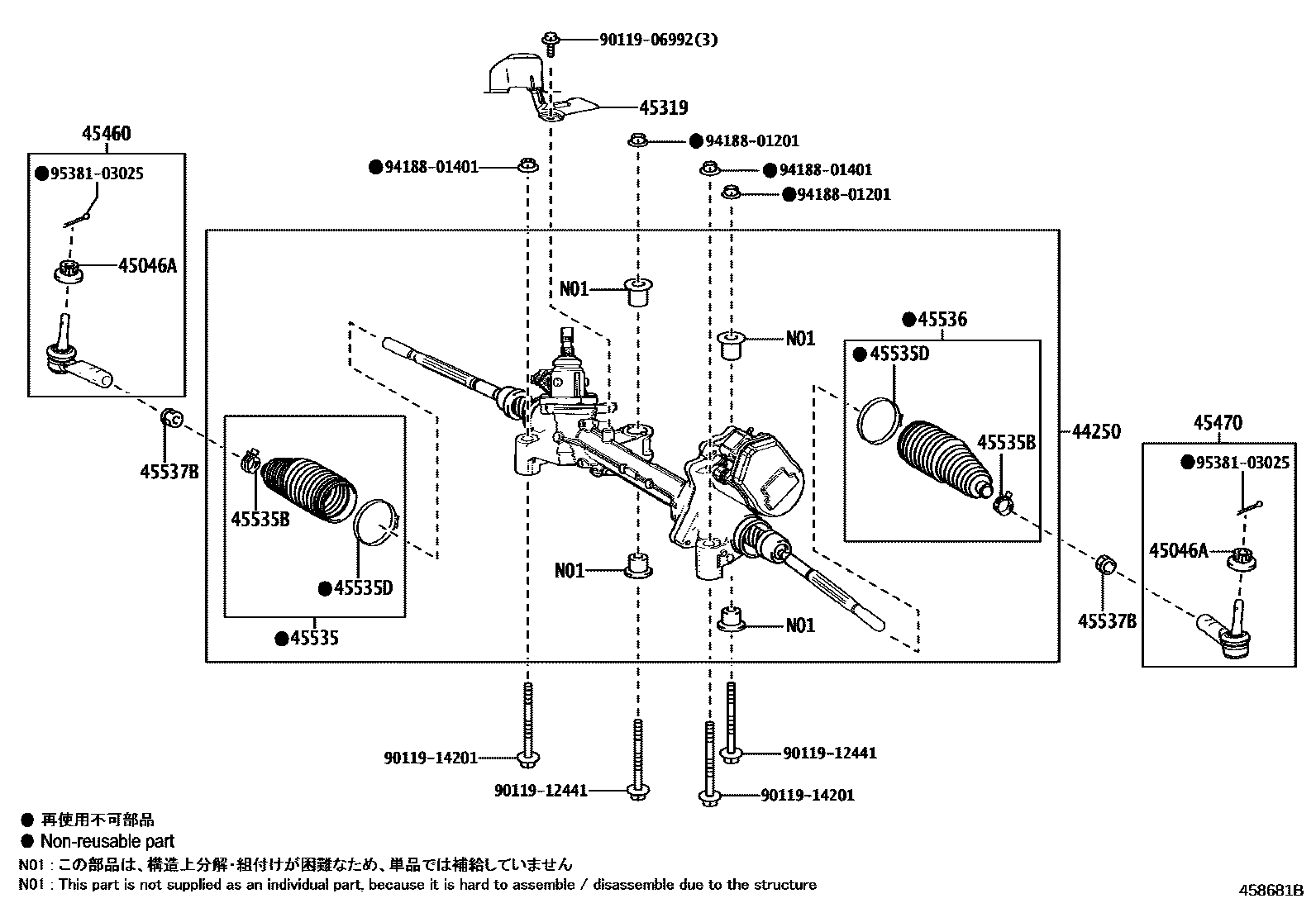

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30340iAZSH36202308-202312

main44250-30410iAZSH3#202312

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015×2iAZSH3#202308

45319INSULATOR, STEERING GEAR HEAT

main45319-42030iAZSH3#202308

45460ROD ASSY, TIE, RH

main45460-49095iAZSH3#202308

45470ROD ASSY, TIE, LH

main45460-49095iAZSH3#202308

45535BOOT, STEERING RACK, NO.1

main45535-49135iAZSH36202308

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iAZSH36202308

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-06030×2iAZSH36202308

45536BOOT, STEERING RACK, NO.2

main45535-49135iAZSH36202308

45537BNUT, RACK END LOCK

main90178-16001×2iAZSH3#202308

9011906992

main90119-06992

9011912441

main90119-12441

9011914201

main90119-14201

9418801201

main94188-01201

9418801401

main94188-01401

9538103025

main95381-03025

16 parts on this diagram · 1 diagram in section
