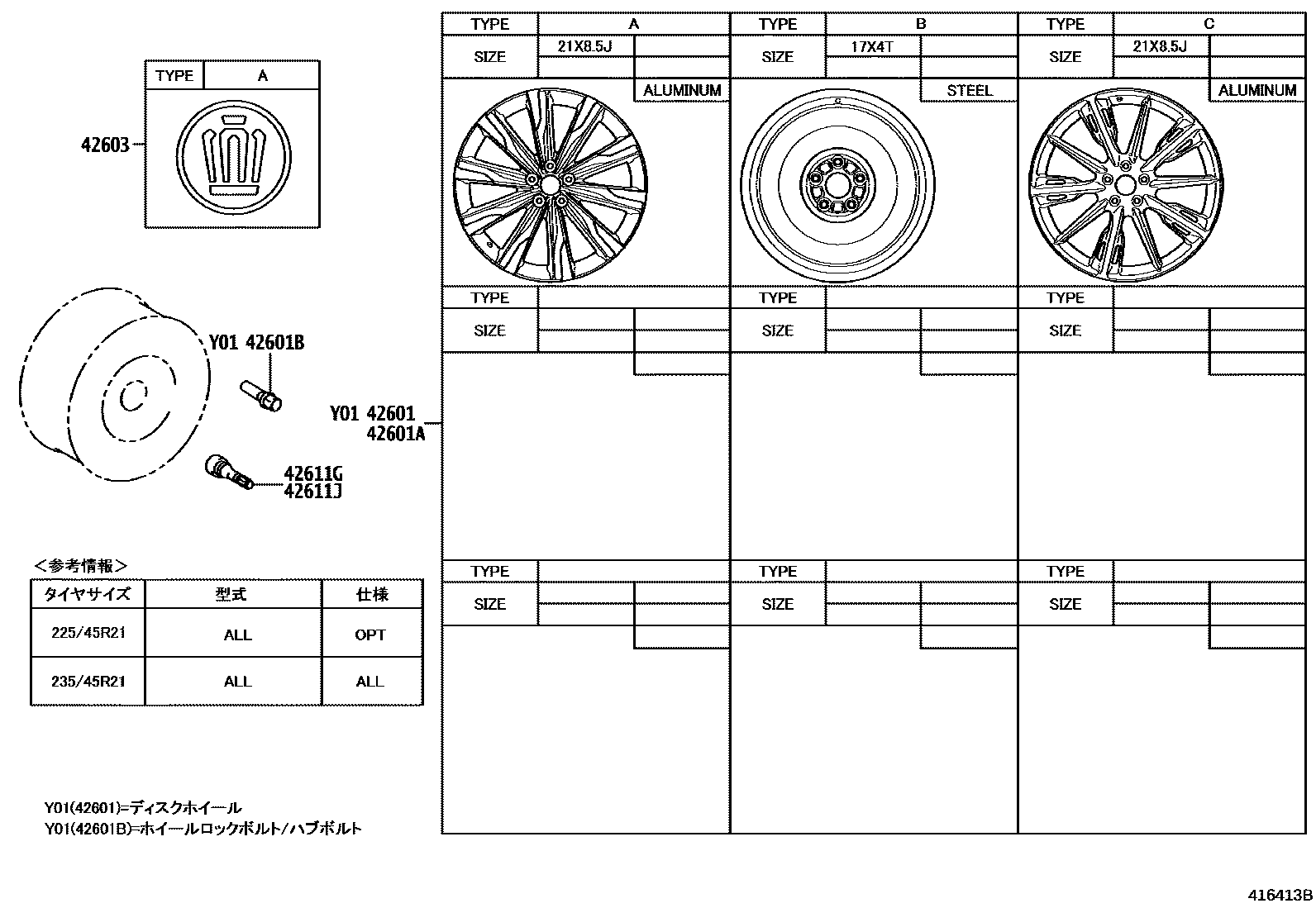

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-30L40×4iAZSH3#202308

main42611-30L50×4iAZSH3#..RS,Z202308

42601AWHEEL, DISC (FOR SPARE)

main4261B-30010iAZSH36202308

42601BBOLT, HUB (FOR AXLE)

main90942-02103×20iAZSH3#202308

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30690×4iAZSH3#202308

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAZSH3#202308

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAZSH36202308

6 parts on this diagram · 2 diagrams in section
