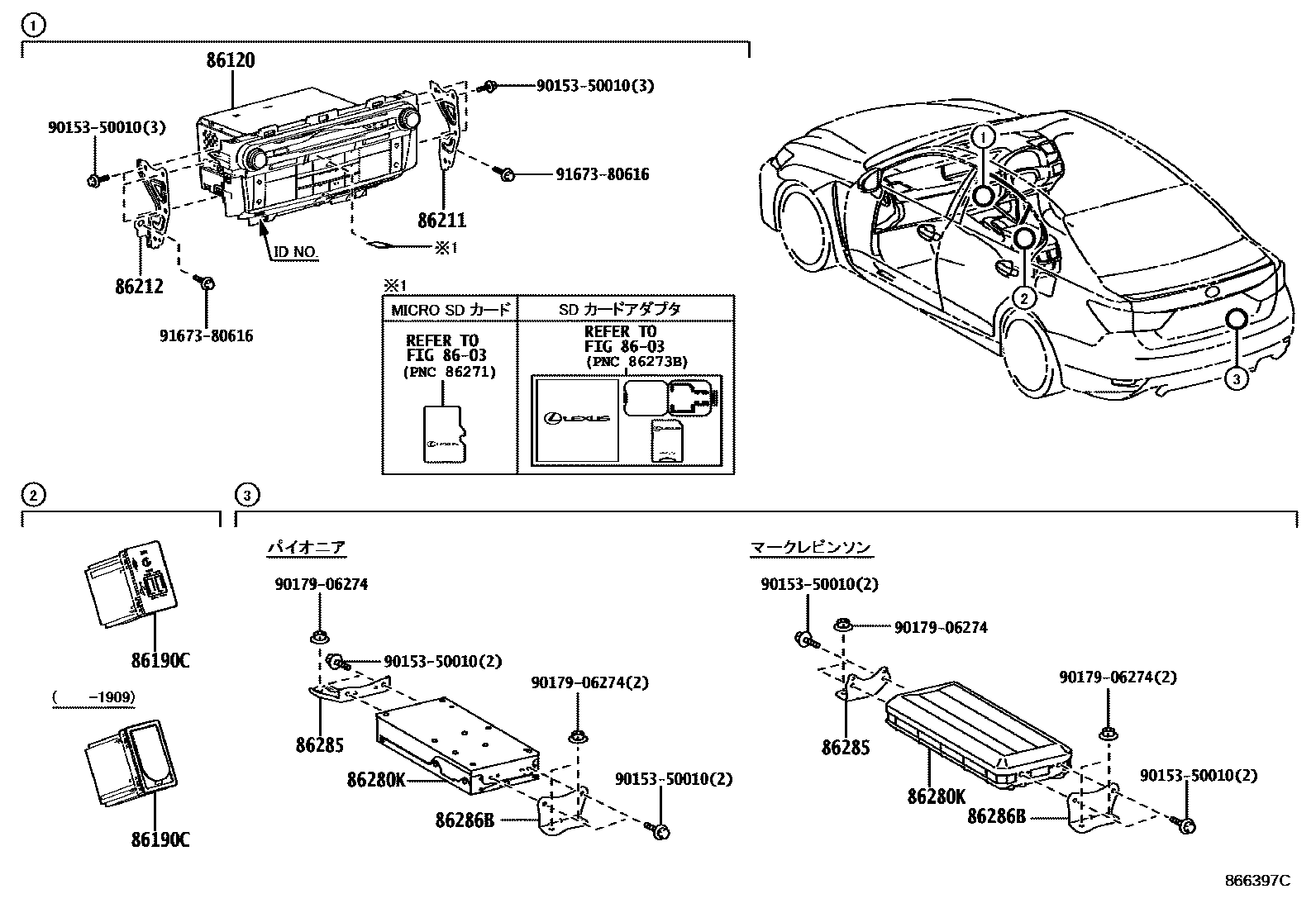

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������

8603

86120RECEIVER ASSY, RADIO

main86804-30K20iURL10201510-201609

main86804-30K80iURL10201609-201709

main86804-30P50iURL10201709-202007

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-30040iURL10201909-202007

main86190-53051iURL10201510-201909

86211BRACKET, RADIO, NO.1

main86211-30390iURL10201510-202007

86212BRACKET, RADIO, NO.2

main86212-30350iURL10201510-202007

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-30680iURL10201510-201710

sub86280-30681

main86280-30681iURL10201711-202007

86285BRACKET, AMPLIFIER, NO.1

main86285-30370iURL10201510-202007

86286BBRACKET, AMPLIFIER, NO.2

main86286-30100iURL10201510-202007

9015350010

main90153-50010

9017906274

main90179-06274

9167380616

main91673-80616

11 parts on this diagram · 2 diagrams in section
